Hi,

So what is the easiest way to subtract the area that my columns take up in an area plan. i could draw area boundraies around each column which isn't so bad, but if i delete a column then the area boundry stays.

any ideas anyone?

using revit building 2009

thanks

This user is offline

JeroentjeM

active

Joined: Thu, Jul 29, 2010
86 Posts
No Rating

Hi all,

old topic, maybe some new solutions in 2011? I also need to be able to create area plans in which bearing walls are ignored. So no area over a bearing wall.

Any ideas? Thanks!

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Are you talking area plans really or could you use rooms?

Area plans can be sketched instead of letting Revit create them, then just point to the lines to sketch and exclude your walls.

This user is offline

JeroentjeM

active

Joined: Thu, Jul 29, 2010
86 Posts
No Rating

Hi WWhub,

no I really want to use rooms. The option to sketch the lines by hand is fairly good. I've been doing a test-project, and it works fine. I was searching for the even easier way, but this is also good.

I think we're gonna use Rooms in the earlier stages of a project, and when making the drawings for the building-permit, add area-plans. Rooms so we can tag the rooms in an early stage, without the need of creating seperate plans, and areas to be more flexible in determing the boundaries.

Is there a way, to make an area take over the name of the room?

Thanks!

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

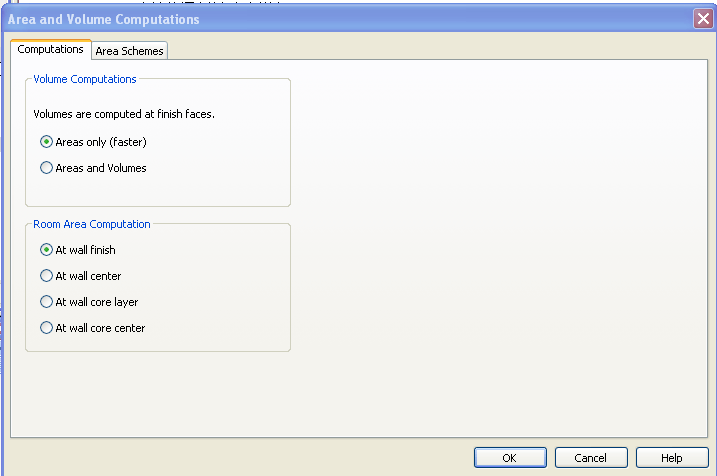

Under the room & Area pulldown, you have some options.  Just set these the way you want for your room areas.  See attached:
