I would like to have a window family that would allow for the following parameters: - Width & height
- Casing option (interior & exterior)
- Muntin options including the number of lites ( # wide x # high), per sash, and the muntin width.
Any idea how to create this? Also, attached is a profile I created for an exterior casing that we use for dormers. Any suggestions how to create a sweep that could be applied to this window family? THanks all!
|
This user is offline |
View Website
|
 |
|
|
|
active
Joined: Sat, Dec 29, 2007
286 Posts
 |
Height and width is best defined with Ref planes and a dimension you then label with a parameter, casing i would load in a generic model of the casing created with solid sweeps or extrusions ,with all the parameters you need ( check out F1 for nested families) for the last part is my english not good enough to understand, but i can say you can alling an array to ref planes and ad a parameter ( integer ) to the array to control the number of arrays .
-----------------------------------
"There is no path to peace,
peace is the path."
Mahatma Gandhi.
|
This user is offline |
|
|
|
active
Joined: Wed, Dec 4, 2013
0 Posts
No Rating |
I'm basically having the same poblem (Muntin Options) where I dont just know what to do, start. I've been reading about arraying family, nesting families and what not, but haven't found a clear step-by-step guide on doing so. Can anyone help me?
I basically need to re-create these options, just dont know how to start.
|
This user is offline |
|
|
|
active
Joined: Wed, Dec 4, 2013
0 Posts
No Rating |
Edit: Deleted repost
Edited on: Fri, May 8, 2015 at 11:44:11 AM
Edited on: Fri, May 8, 2015 at 1:18:51 PM
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
19889 Posts
|
I think I would start with one of the pella windows on seek.
|
This user is offline |
|
|
|
active
Joined: Wed, Dec 4, 2013
0 Posts
No Rating |
you can't interchange muntins in the Pella window
|
This user is offline |
|
|
|
active
Joined: Wed, Dec 4, 2013
0 Posts
No Rating |
you can't interchange muntins in the Pella window
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
19889 Posts
|
What do you mean by 'interchange'?
The number of the muttins can be changed - both horizontal and vertical.
Rework their formulas.
Edited on: Fri, May 8, 2015 at 1:34:36 PM
|
This user is offline |
|
|
|
active
Joined: Wed, Dec 4, 2013
0 Posts
No Rating |

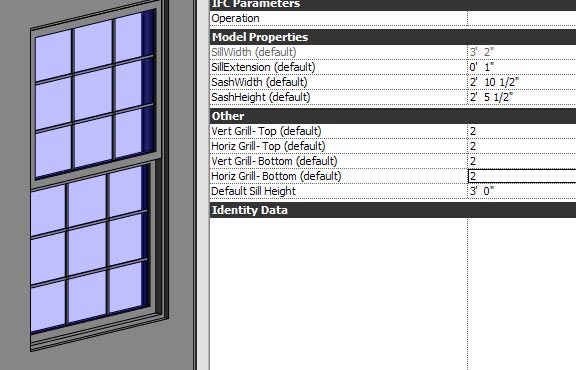

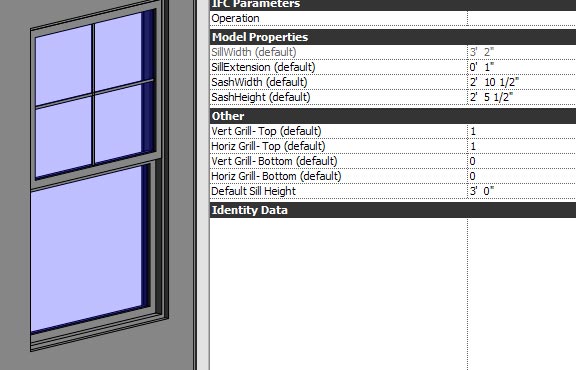

I download it, and the vertical and horizontal mullions under "Other" are all greyed out. I only have the option between Traditional Grille and Prairie Grille. There are also no options under the Edit Type.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
19889 Posts
|
Edit the family and take out the formulas for the numer of muttins.
|
This user is offline |
|
|
|
