Forums >> Revit Building >> Technical Support >> Sloped Roof

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Nov 9, 2008 at 6:17:29 PM | Sloped Roof

#1

KK09


active

Joined: Sun, Nov 9, 2008
2 Posts
No Rating


Hi Everyone,

I am doing a roof that's has three sections and joined at a single point on top of a wall.  I am having trouble creating the roof by footprint or extrusion.  The three roofs slope in different angles forming over three part of a building and there is glazing between the vertical faces of each roof.  Any idea how this could be easily done?  I have done a massing model of the roof in Acad.



Attached Files

This user is offline



Sun, Nov 9, 2008 at 7:43:57 PM | Sloped Roof

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, its very simple, see the video: http://screencast.com/t/2LhaOuMVZH





Edited on: Sun, Nov 9, 2008 at 1:54:35 PM

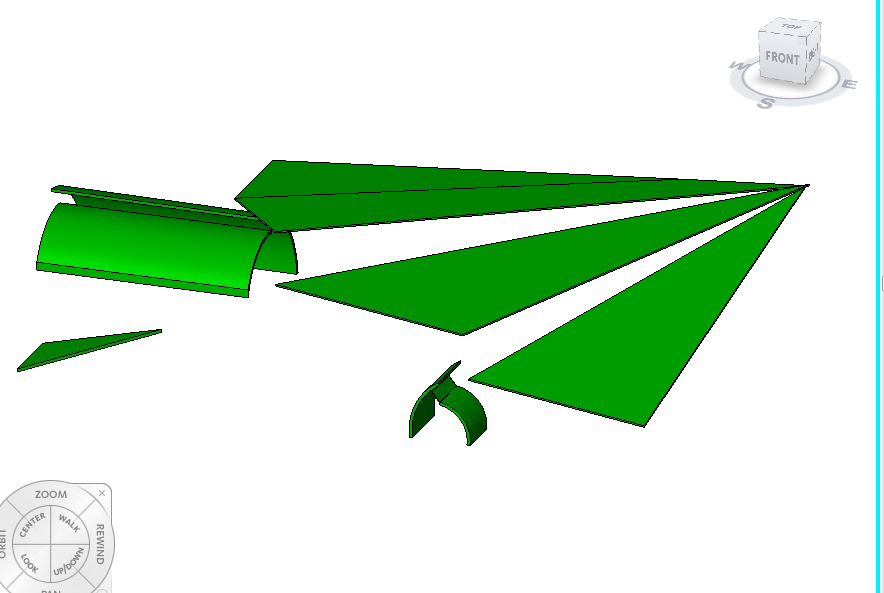

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Nov 10, 2008 at 1:12:36 PM | Sloped Roof

#3

KK09


active

Joined: Sun, Nov 9, 2008
2 Posts
No Rating


Hi There,

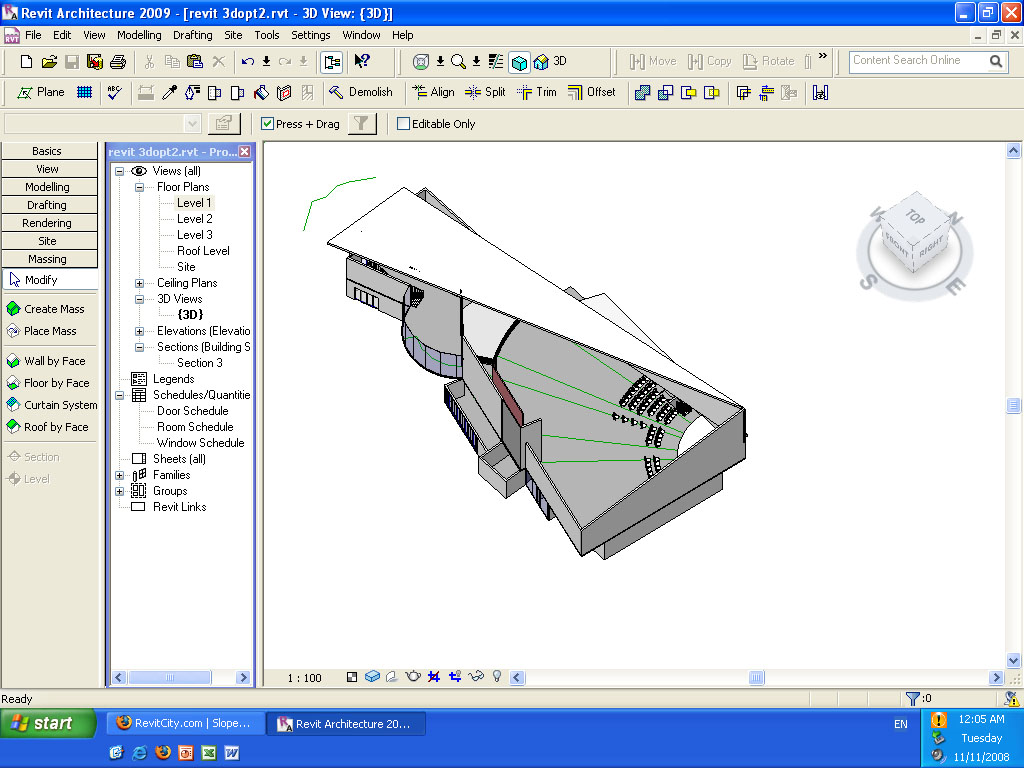

Thanks for the video.  I tried to do the same but when the roof was finaly created, I couldnt place it on top of my Revit model because there was a big scale difference between the two.  I am not sure if there is any other way.  I also have joining walls between the different roof levels which dont go all the way down to the floor.  The three roofs are over the main hall of the building with no internal walls attached to the roofs apart from the boundary walls. Here's a snapshot of it.



Attached Images


This user is offline



Mon, Nov 10, 2008 at 6:40:48 PM | Sloped Roof

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, "I couldnt place it on top of my Revit model because there was a big scale difference between the two." because when you import the model to Revit, did you put Units-Auto detect? Wel, you can also, draw by "Footprint, in the video you can see how to create that, you must to create 3 levels because the 3 roof are in diferent height and you must to know the angle of them...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
