Hey everyone,

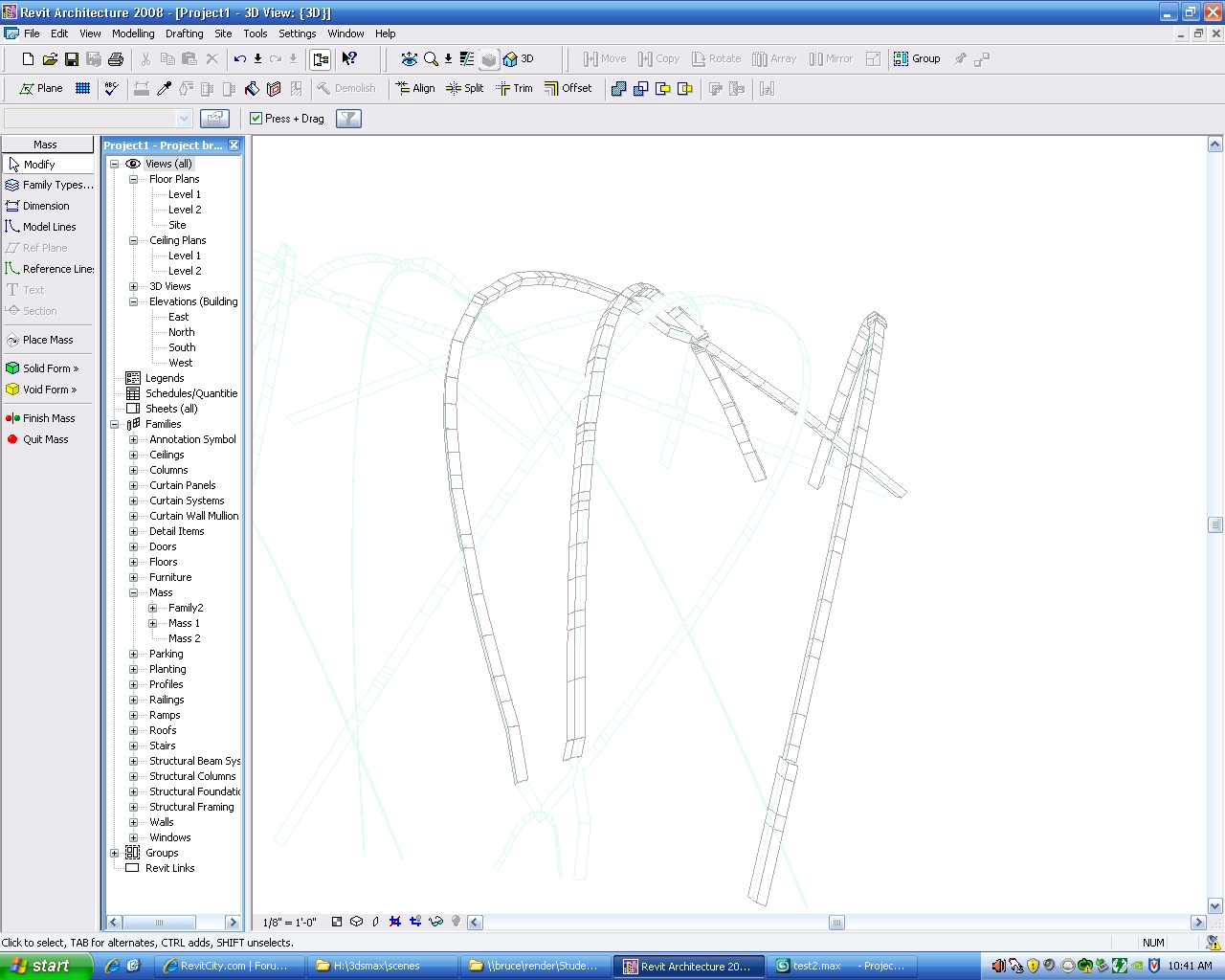

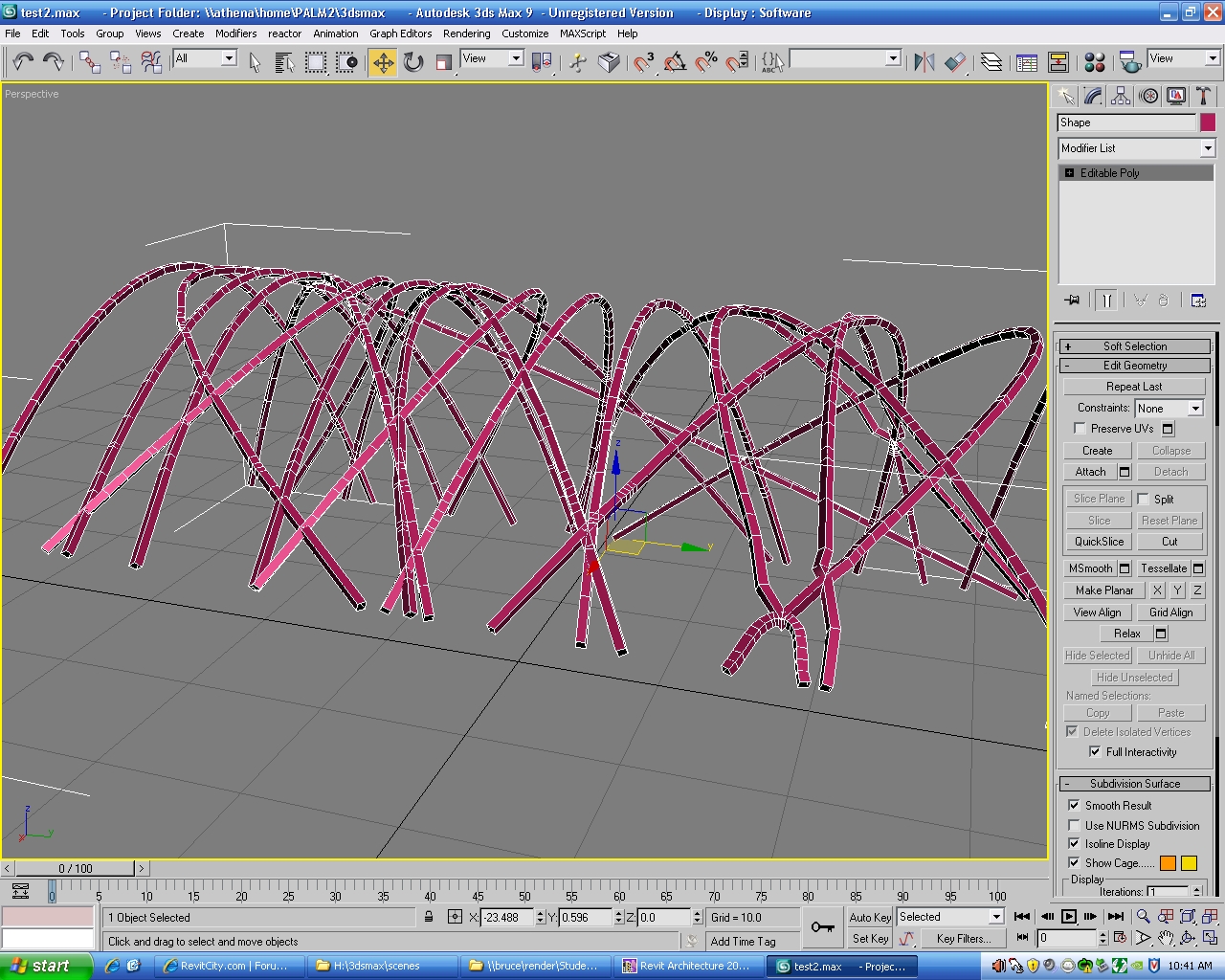

I have a mest that i can create pretty easily in 3ds max which i can then import using the .dwg format into revit and can of course create a wall from face from the mass. but it always comes through looking segmented and messy. unfortunately there is no way for to create the mass from the modeling tools in revit. so if anyone has any ideas about how to take this 3ds form and put it in as smooth walls in revit i'd love to hear it. I've attached the .dwg file below and some screen shots.

 thanks.

Attached Images

Attached Files 47471_test2.DWG

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

Try to create/export in ACIS solid, not mesh, the problem with mesh is that....

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

office5280

active

Joined: Mon, Oct 20, 2008
9 Posts
No Rating

can you do this in 3ds max? if not what program? i'm kinda looking for some steps

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

You can do that in Max, Rhino, solidwork, sketchup..... whatever

Also check this model made for Beijing Stadium....

-----------------------------------
