Forums >> Revit Building >> Technical Support >> Host sweeps crossing

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Oct 30, 2008 at 1:14:25 PM | Host sweeps crossing

#1

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Hello again,

In Revit 2008.  The gable and roof return are seperate roofs.  There are also two host sweeps/roof fasica applied to the roof.  Please see attached how can I get rid of the line.

 Thanks,





This user is offline



Thu, Oct 30, 2008 at 1:52:07 PM | Host sweeps crossing

#2

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


This should clean up by joining the two roofs using the "Join Geometry" tool.  I have done this in the past with success.  I typically join the roofs and then add the fascia as a single fascia.

HTH


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**

This user is offline



Thu, Oct 30, 2008 at 2:18:54 PM | Host sweeps crossing

#3

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


I went through and deleted all the fascia, joined geometry, and put the fascia back on and still got the same result.  Is it possible I am doing something wrong?  Any other suggestions?



Thanks,

Raina Mc


This user is offline



Thu, Oct 30, 2008 at 2:22:23 PM | Host sweeps crossing

#4

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


Are the gable rake and fascia of the reurn in the same plane?  Send a 3D of that roof.  If indeed they are in the same plane, the only way to get rid of the line might be to use the linework tool.


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**

This user is offline



Thu, Oct 30, 2008 at 2:49:51 PM | Host sweeps crossing

#5

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Yes they are both in the same plane.  See attached.

Thanks,

Raina Mc



This user is offline



Thu, Oct 30, 2008 at 3:24:23 PM | Host sweeps crossing

#6

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


FYI I have 2009....



I used the join geometry tool on the two fascias and it cleaned right up.

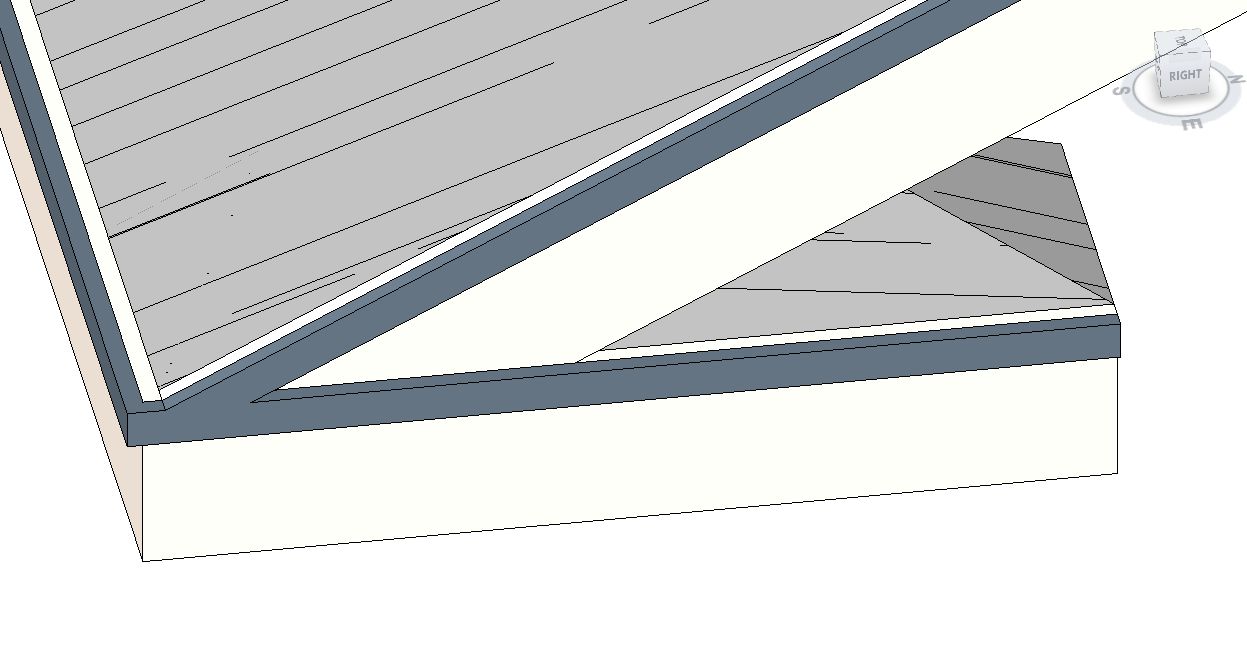

You'll also need to change the mitering option on the gable fascia piece that is grey to a horizontal cut.  Then left click on the horizontal fascia (grey) on the eave return and drag the blue grip to the corner of the roof.



Hope that was what you were looking for......



Edited on: Thu, Oct 30, 2008 at 3:27:14 PM

Attached Images


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**

This user is offline



Thu, Oct 30, 2008 at 3:49:31 PM | Host sweeps crossing

#7

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Thanks it worked that is exactly what i was looking for.



I appreciate it!


This user is offline
