Forums >> Revit Building >> Technical Support >> Staggered Stacked Wall Join Problems

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Oct 14, 2008 at 5:50:52 PM | Staggered Stacked Wall Join Problems

#1

budster2k1


active

Joined: Mon, Jun 18, 2007
1 Posts
No Rating

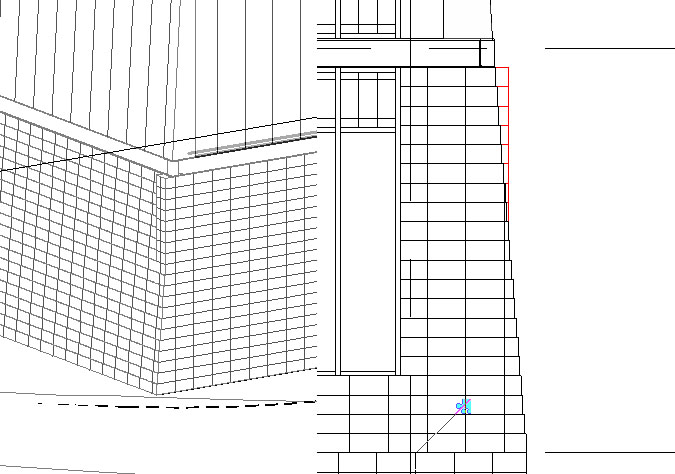

I have a stacked wall of CMU that is Staggered to create a canted wall that joins to a vertical basic CMU wall at the join the lower half connects correctly but the top half extends past the face of the stacked wall. I believe this is because it is joining to the center of the overall mass of the CMU stacked wall and not the interior of exterior face. I am in 2008 and have tried it in 2009 as well I have also tried all sorts of joins and workaround found in the forum I have made it look right by using wall edit profile for the vertical wall and then move the stacked wall near but not joined. I hope there is a better way please help.
