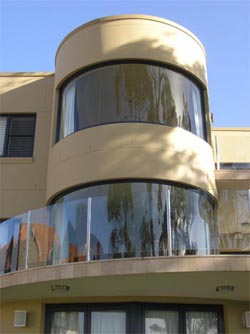

I have been looking in many libraries and searching forums but cannot seem to find any families or information on where to get/or how to do a curved window with curved glass? (see attached image)

I am hoping there is a family available that you could install into a curved wall...

Any help is much appreciated.

Attached Images

This user is offline

View Website

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

There is a curved double hung in the dowload area : http://www.revitcity.com/downloads.php?action=view&object_id=2384

You might want to look at that to see how they did it.

This user is offline

phxchristian

active

Joined: Thu, Mar 20, 2008
1 Posts
No Rating

You may want to do a curtain wall or draw a curve first and then use the select wall by line command, you may even be able to do that with a window.  (Create a wall type that is 1" Glazed or something like that)

 -Christian Jesperson

Gensler Phoenix

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

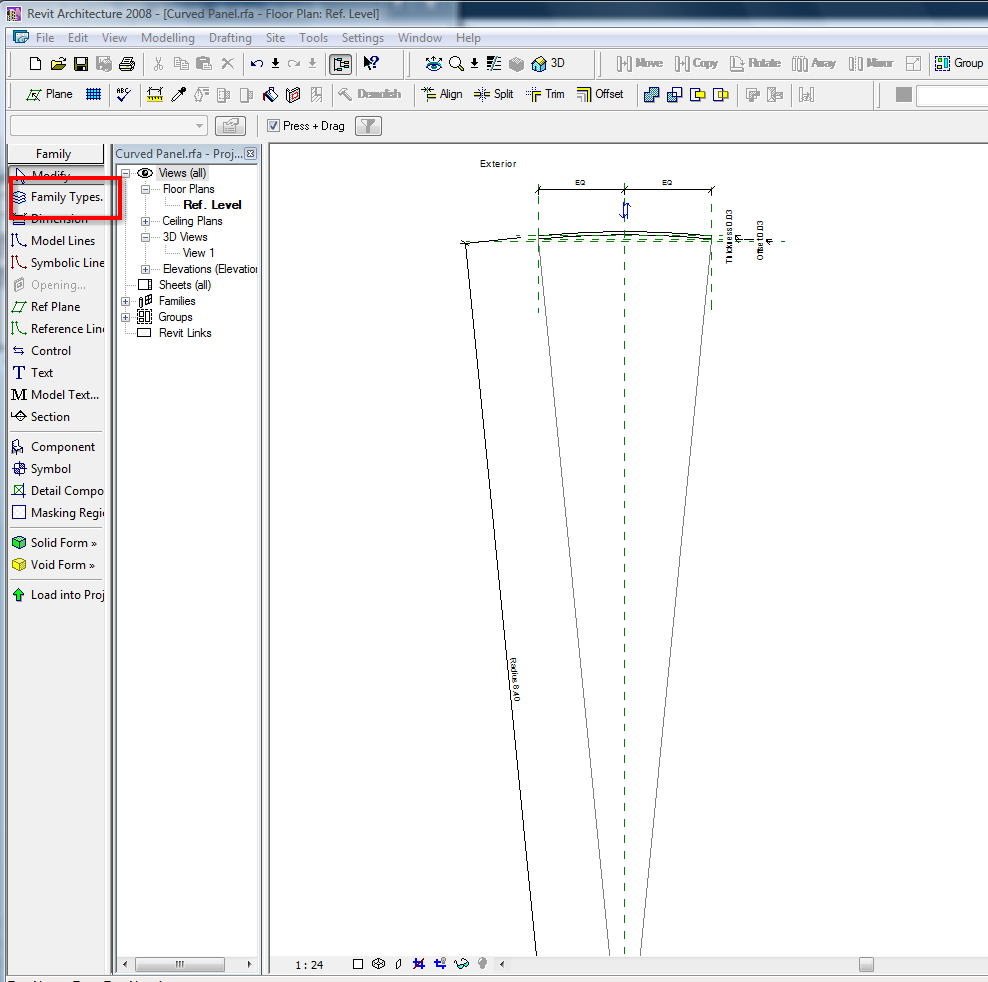

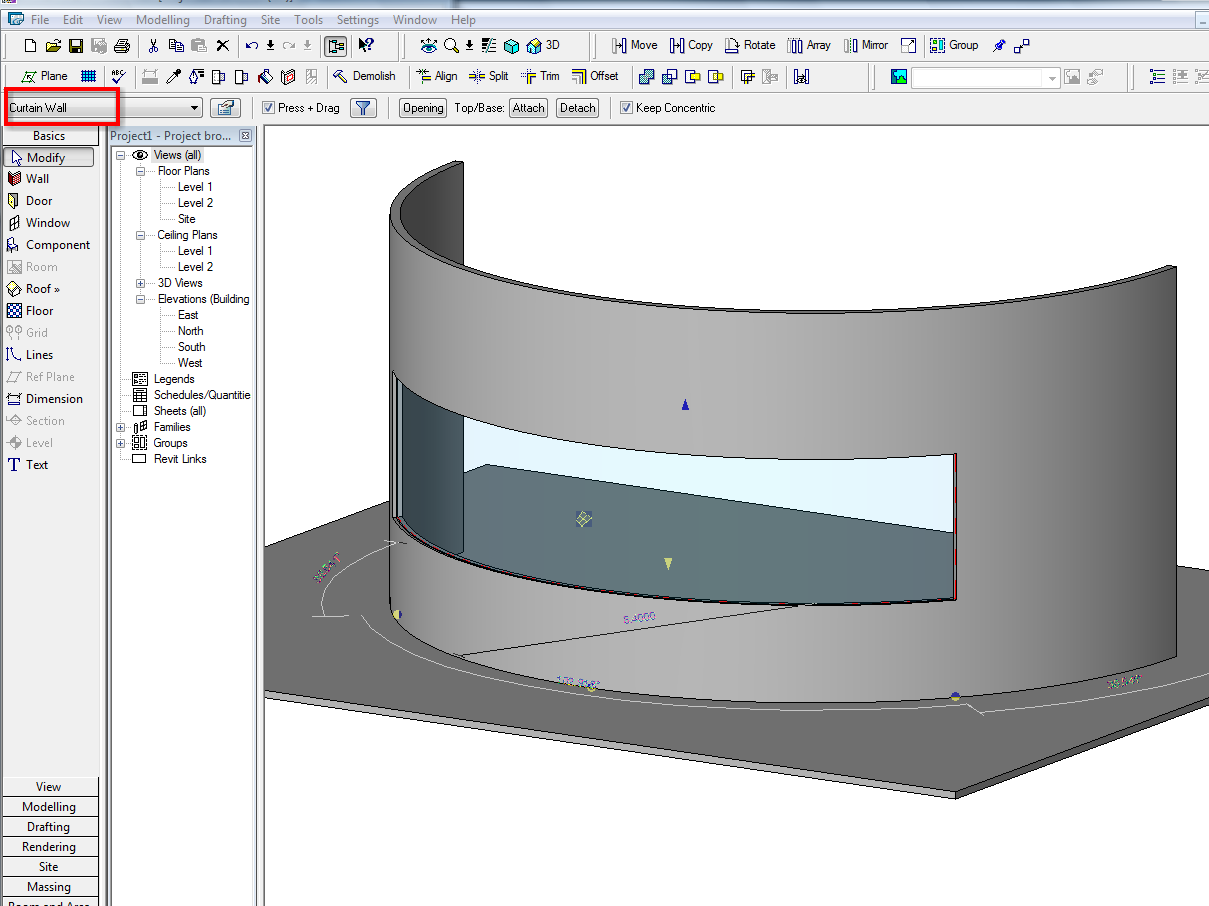

Hi, use curtain wall panel, see the images attached, I also put the Family of "Curved Panel", you can edit and create new types and use for what you need...

Attached Images

Attached Files 45918_Curved_Panel.rfa

-----------------------------------
