Pleaseeeee! I need help. I need to create hexagonal openings in a curved/slanted wall that I created through the mass tool. Or if someone knows how to customize a curved/slanted wall curtain panels it would also help. I am trying to find the way to do an hexagonal pattern of opennings in a jar shaped building. Please I need a detailed explanation since I am a new user of revit.

This user is offline



Mon, Sep 29, 2008 at 8:25:13 AM | opening in slanted curved wall

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Hi, you have several ways to do that, if you want to open a opening in a wall (no matter if is curved / slanted), you can create a family "Generic Model Face Based" or a "Generic Window or door" and draw the shape you want then load to the project and "insert" that where you want, but the problem (if i understand the question because i'm Portuguese and sometimes my english isn't so good and i missed the question) is you want a "Wall Curtain Panels" to do that, so my advise is create a "Metric/Imperial Curtain Wall Panel", you don't need to create that family in curved because when you draw in project you draw in "Arc" but you must create in the family the shape and parameters with dimensions/angle to can control what do you need....

 He visto to nombre "Lucecita" y creo k es español, si asi es puedes hablar español ke yo te entiendo...





Edited on: Mon, Sep 29, 2008 at 8:31:56 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Sep 29, 2008 at 9:41:50 AM | opening in slanted curved wall

#3

lucecita2618


active

Joined: Mon, Apr 7, 2008
3 Posts
No Rating


Gracias typh pero creo que no entiendo bien porque ya trate de hacer lo que me dijistes y no funciona. Cuando creo el family Generic model or window, no me deja la opcion de hacer un opening. No entendi lo que me dijistes de como crear un curtain wall panel, donde esta esa opcion? que significa eso que me escribistes? "you draw in project you draw in "Arc" but you must create in the family the shape and parameters with dimensions/angle to can control what do you need". No entiendo nada Sad.  Lo que quiero hacer no es como el ejemplo que tu pusistes es mas como esta imagen:



Attached Images


This user is offline



Mon, Sep 29, 2008 at 9:56:04 AM | opening in slanted curved wall

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

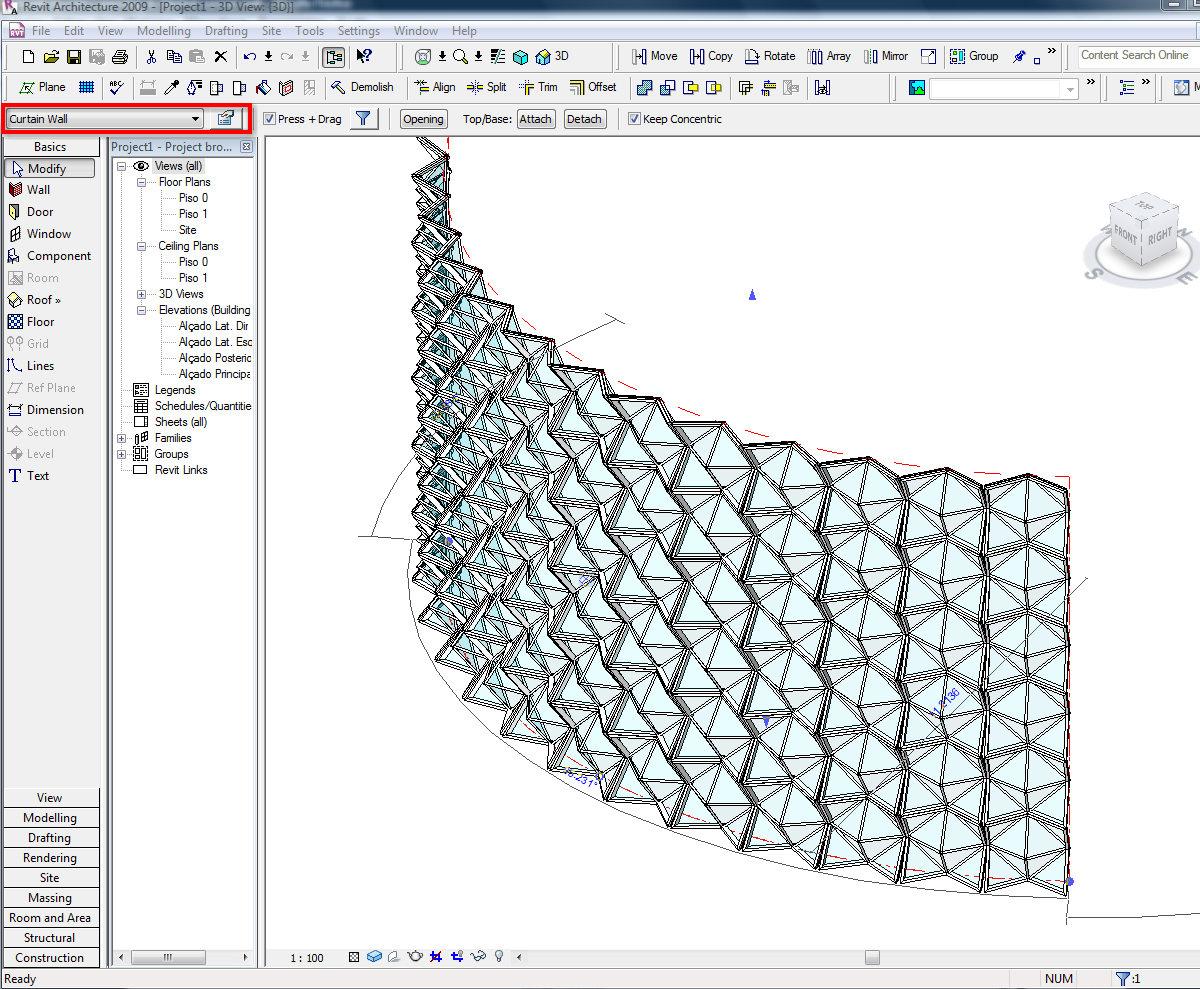

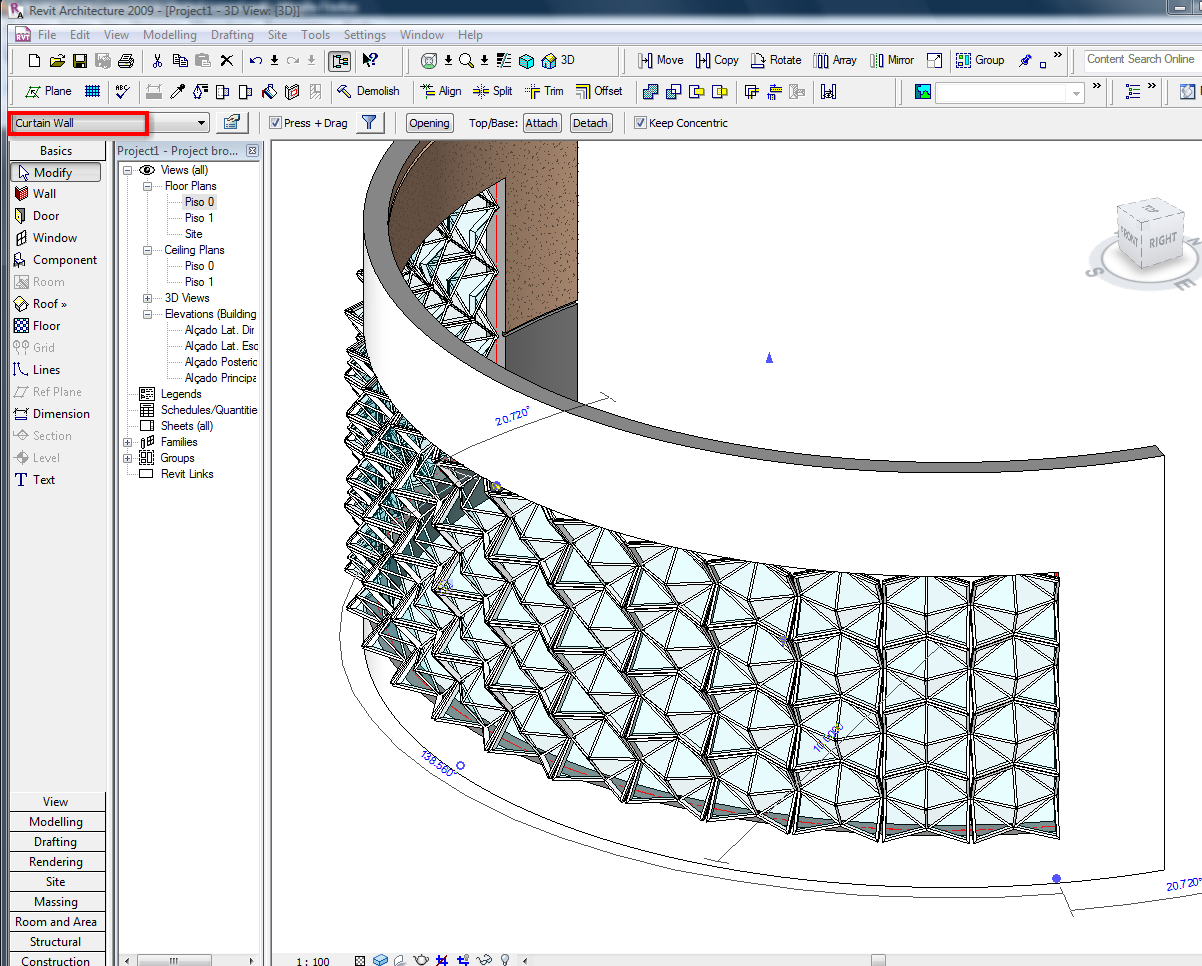

Lo que te queria decir es que quando dibujas el curtain wall panel em planta lo dibujas en arco, no necessitas de crear la familia en arco pues quando lo dibujas em proyecto creas un arco, tienes que crear una familia "FILE>NEW>FAMILY" y eliges "Metric/Imperial Curtain Wall Panel"

Mira estos sites, lo k necessitas está aqui, essa imagen que tienes si puede acer en revit, si entiendes bien el inglés no tendras problemas, mira estos sites, tienen videos para te orientares mejor:  http://designreform.net/category/revit-tutorials/page/3/

e tambien mira esto:  http://do-u-revit.blogspot.com/  e este tambien:  http://irevit.blogspot.com/

en el site "Designreform" cada imagen es un video e tienes vários....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Sep 29, 2008 at 10:18:17 AM | opening in slanted curved wall

#5

lucecita2618


active

Joined: Mon, Apr 7, 2008
3 Posts
No Rating


Estan muy cool las websites esas. Muchisimas gracias!

This user is offline



Mon, Sep 29, 2008 at 10:32:57 AM | opening in slanted curved wall

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


De nada, si tienes alguna duda manda-me un Email, lo tienes en mi profile...




-----------------------------------
