Wed, Sep 24, 2008 at 10:42:05 AM | Roof/wall join: Cut roof

#1

christophercarlsson


active

Joined: Mon, Jun 2, 2008
38 Posts
No Rating


Hi!

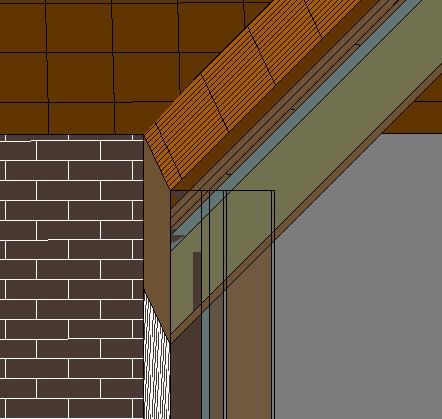

 I'm trying to cut a roof using a wall. If you look at the attached image you'll understand better what I'm after.

I want to leave the wall as it is, and subtract the part of the roof which colides with the wall. Is this done in an easy way?

Thanks!

Christopher



Attached Images


This user is offline



Wed, Sep 24, 2008 at 4:16:17 PM | Roof/wall join: Cut roof

#2

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


join geometrie

or attach wall to roof



Edited on: Wed, Sep 24, 2008 at 11:17:53 AM

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Thu, Sep 25, 2008 at 6:59:27 AM | Roof/wall join: Cut roof

#3

christophercarlsson


active

Joined: Mon, Jun 2, 2008
38 Posts
No Rating


Hi!

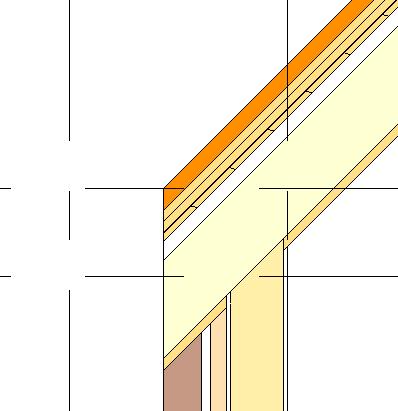

 I've tried that, but what happens is that to roof keeps its shape, and the wall gets cut. I want it the other way around.

See attached image to see what happens. I want the wall to keep its shape, and the roof to be cut.

Any ideas?

Thanks!

RAC 2009



Attached Images


This user is offline



Thu, Sep 25, 2008 at 8:30:01 AM | Roof/wall join: Cut roof

#4

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


try playing around with your core boundries,,,

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Thu, Sep 25, 2008 at 9:53:47 AM | Roof/wall join: Cut roof

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

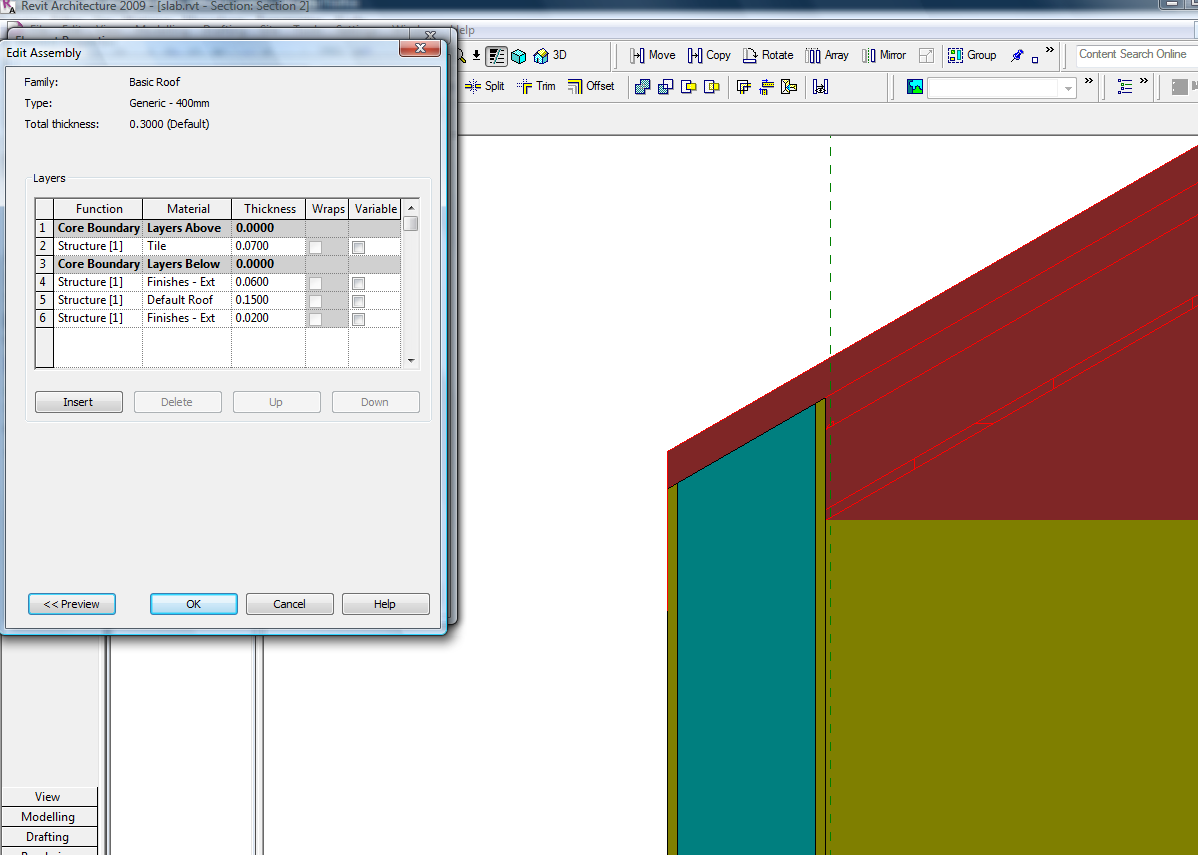

Yeah, Dafpfy has right, change the core of the roof....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Sep 25, 2008 at 10:21:13 AM | Roof/wall join: Cut roof

#6

christophercarlsson


active

Joined: Mon, Jun 2, 2008
38 Posts
No Rating


Alright, we're almost getting there Smile

 What I really am after is to simply cut the roof. I want to keep the wall as it is: Flat top, no projection to the roof.

I've done a little mockup so you can see what I want to do.

 Thanks for all the responses!





Attached Images


This user is offline



Thu, Sep 25, 2008 at 12:30:44 PM | Roof/wall join: Cut roof

#7

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


i would gues i would make revit make the most close solution and use masking and filled regions from there on.

(i pin my sections once i start drawing masking and filled regions on it )


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Tue, Apr 27, 2010 at 12:53:13 PM | Roof/wall join: Cut roof

#8

bengtm


active

Joined: Mon, Mar 8, 2010
37 Posts
3 Stars: 2 Votes


Did you try changing the Rafter Cut in Element Properties?

This user is offline
