Forums >> Revit Structure >> Technical Support >> Wall Footings

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Sep 15, 2008 at 6:59:32 PM | Wall Footings

#1

mreed


active

Joined: Thu, Aug 21, 2008
44 Posts
No Rating


Is there a way to make the wall footings (thickened slabs) to pass thru openings in plan view?  I am putting a thickened slab under an interior wood stud bearing wall, but on the plan it stops and starts back at all doors.

Thanks


This user is offline



Mon, Sep 15, 2008 at 7:17:58 PM | Wall Footings

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, can you put some screen shots fo figure it out???




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Sep 15, 2008 at 7:44:55 PM | Wall Footings

#3

mreed


active

Joined: Thu, Aug 21, 2008
44 Posts
No Rating

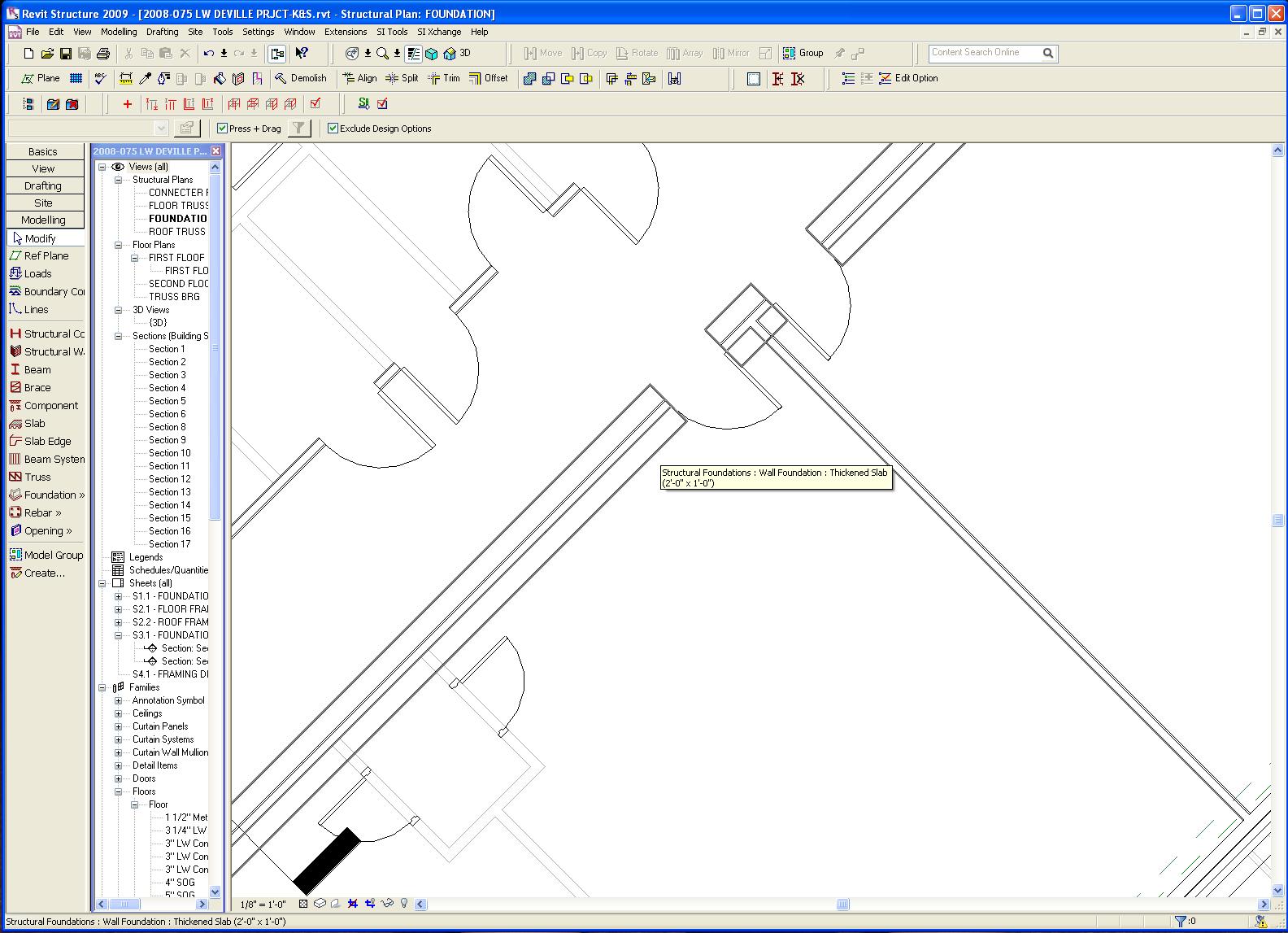

See attached screen shot.

Attached Images


This user is offline



Mon, Sep 15, 2008 at 8:16:38 PM | Wall Footings

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, see the video: http://screencast.com/t/vtJgwrPm




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Sep 15, 2008 at 8:33:32 PM | Wall Footings

#5

mreed


active

Joined: Thu, Aug 21, 2008
44 Posts
No Rating


I figured out another way to do it.  If you change your "Sill Height" of the door to anything > zero, then your footing will show up.




This user is offline



Mon, Sep 15, 2008 at 8:38:57 PM | Wall Footings

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Well, like i tell you in the video, i don't know how is your wall, but, what you say is your doors are attached to that "foundation Wall" isn't?







Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Sep 15, 2008 at 8:54:35 PM | Wall Footings

#7

mreed


active

Joined: Thu, Aug 21, 2008
44 Posts
No Rating


I don't think the doors are attached to the "foundation wall".  I think that in Revit, if you put in a length for your sill height then it puts a short piece of wall under the door equal to the height of your sill.  The wall footing then connects to this short piece of wall.

This user is offline



Mon, Sep 15, 2008 at 8:57:39 PM | Wall Footings

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Can you put animage in 3D view to see those walls with the door?






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Sep 15, 2008 at 9:21:41 PM | Wall Footings

#9

mreed


active

Joined: Thu, Aug 21, 2008
44 Posts
No Rating

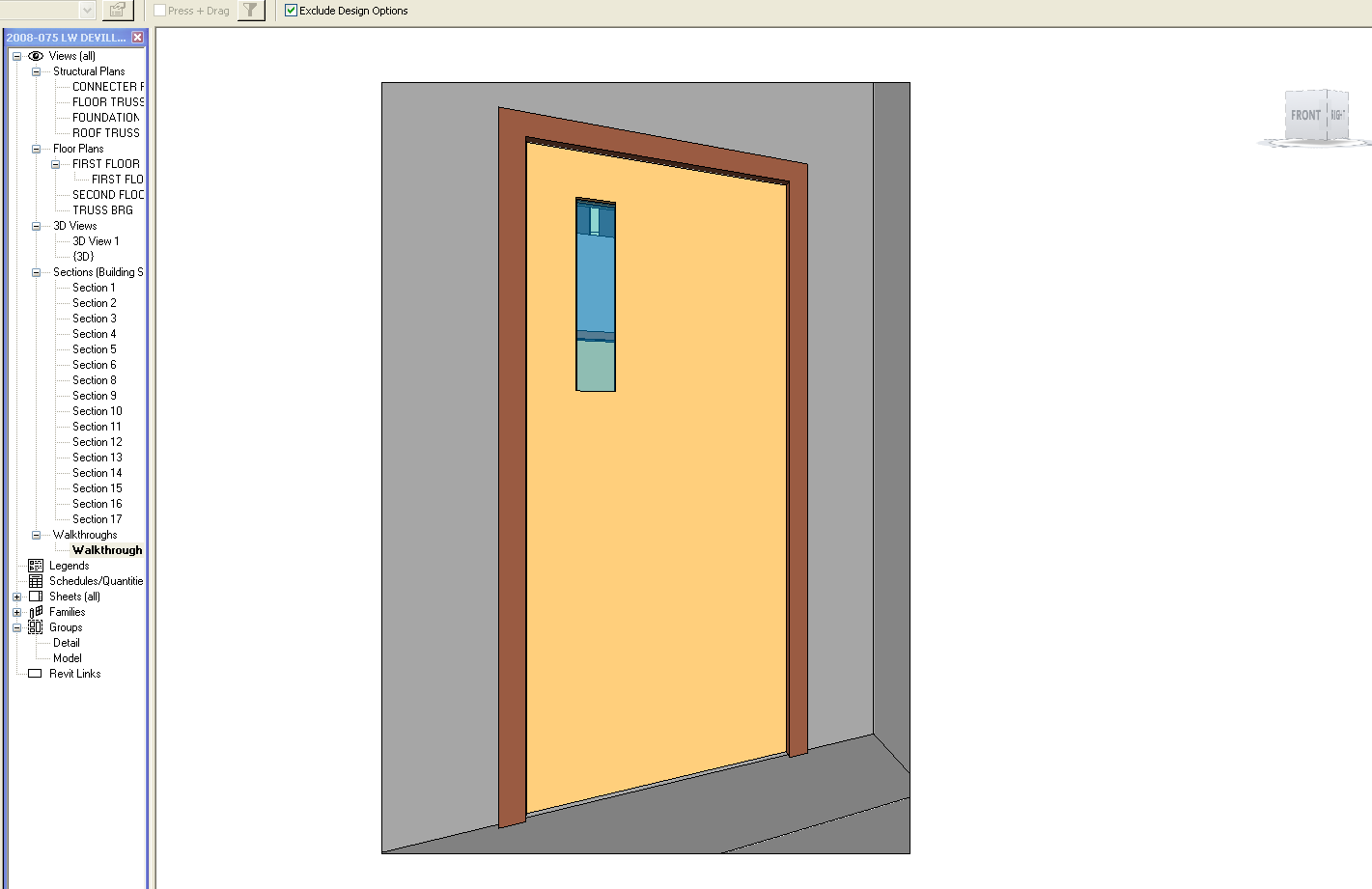

Attached is a 3D image of the door.  You can see the line on the floor which is the edge of footing.  I put in a 1/2" sill height.  It doesn't appear any different than a typical door.

Attached Images


This user is offline
