Forums >> Revit Building >> Technical Support >> Stained Glass Windows and Curtain Walls
|
|
|
active
Joined: Fri, Sep 12, 2008
1 Posts
No Rating |
Is there any way to veiw a decal on a curtain wall? or is there a better way to create a stain glassed window after creating a storefront window system with a stained glass windows?
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |

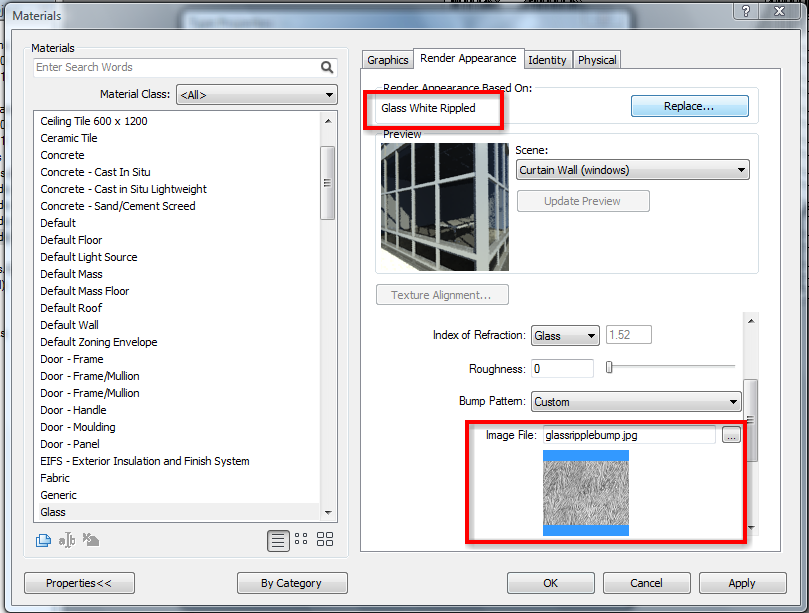

Hi, a screenshot of what you trying to do help. You don't say what version of Revit are you working, if is RAC 2009 try to use "Glass White Rippled" and change the parameters like do you want....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Decals are placed on faces and the problem with a curtain wall is that you have multiple faces and you would have to build your stained glass panel by panel. However - a suggestion that might work. Why not place a thin flat plane component in the middle of your curtain wall and place the decal on that. Then simply don't have any glass panels. This should render ok but it will not show up in shaded views.
|
This user is offline |
|
|
|
active
Joined: Sat, Jun 25, 2005
51 Posts
|
Hi,
I would appriciate some thoughts on this problem.
I would like to add some “stain glass – panels” to this window. I though I could achieve this by( “extruding” each pain) that makes up the stain window, but when time to load into the project. The main file will not except it.
|
This user is offline |
|
|
|
active
Joined: Sat, Jun 25, 2005
51 Posts
|
here is the Design for the stain glass.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

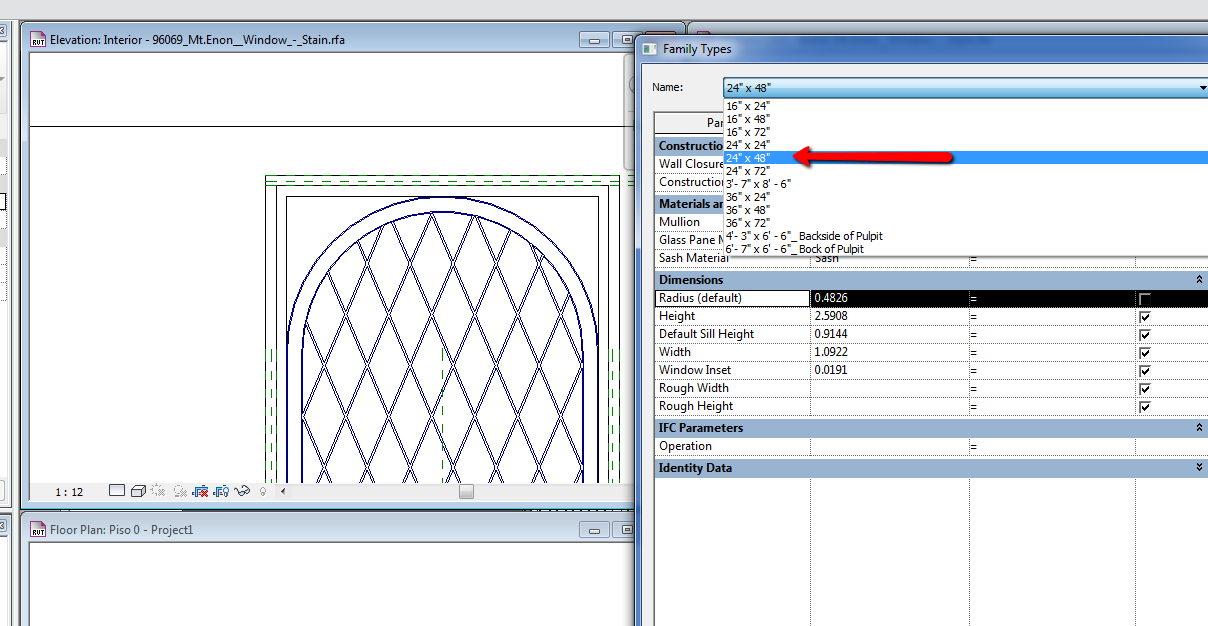

Albert, your family is not parametric, did you flex the family with the different types you have in that window (family)?

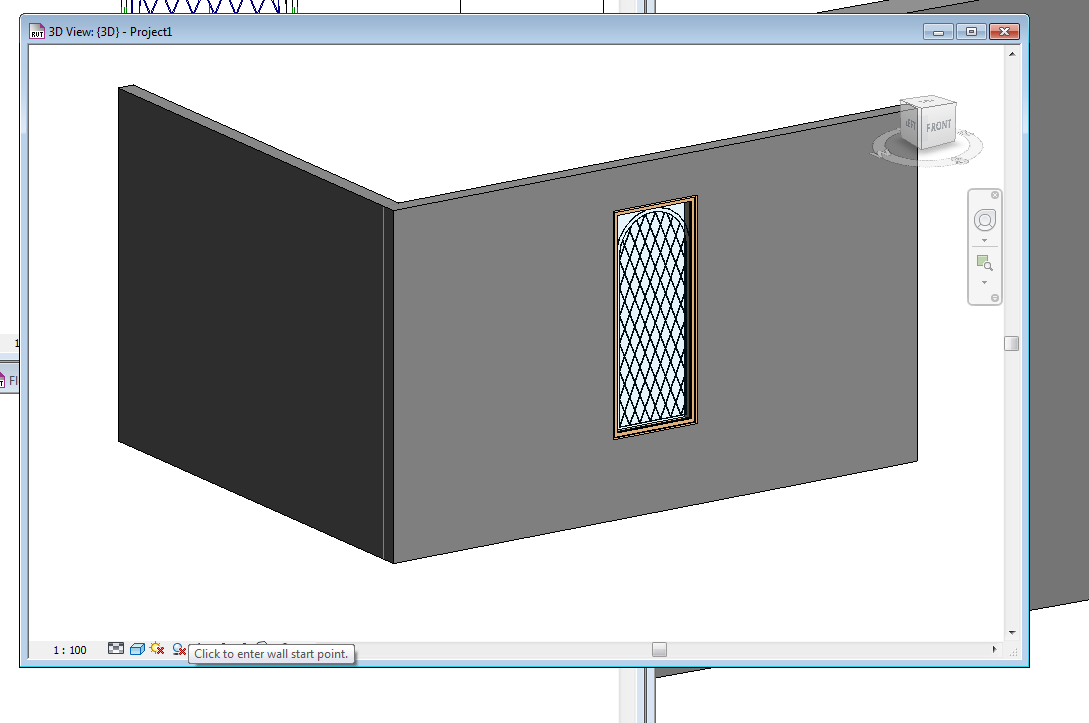

Leave only 24" x 48" type and delete the others, then you can load that into project but you will have the problem when you need to change the height or width of that window.
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
