Forums >> Revit Building >> Technical Support >> walls on different levels not even

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Sep 8, 2008 at 12:44:19 AM | walls on different levels not even

#1

brendanh


active

Joined: Sat, Aug 23, 2008
2 Posts
No Rating


I have exterior walls on levels 1 and 2 with different thickness (15" and 12", for example)... and I try to line them up so the outside of the walls is seamless.  But in a 3d or elevation views, they are not completely aligned.  How can I get the outer surfaces to snap to each other?

I'm using revit architecture 2009.

Thanks for any help,

Brendan




This user is offline



Mon, Sep 8, 2008 at 2:22:42 AM | walls on different levels not even

#2

vicozzio


active

Joined: Thu, May 15, 2008
55 Posts
No Rating

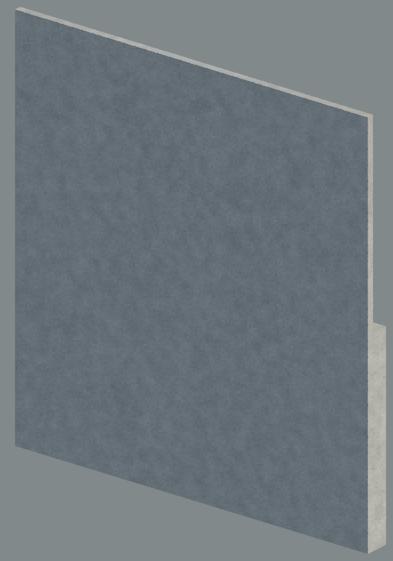

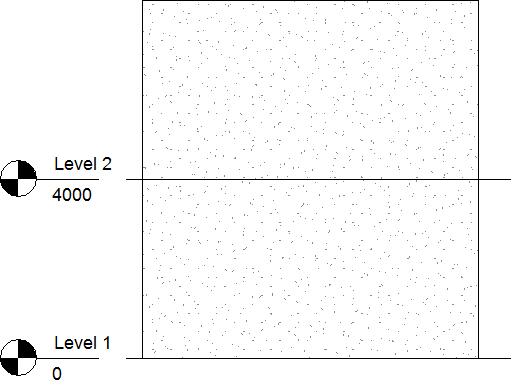

I'm not quite understand, do you mean there's a line between the thick wall and the thin wall? if so, I think you don't have to worry, when you render it, the line will be gone. attached is my trial for your case. I hope what I assume for your problem is right...

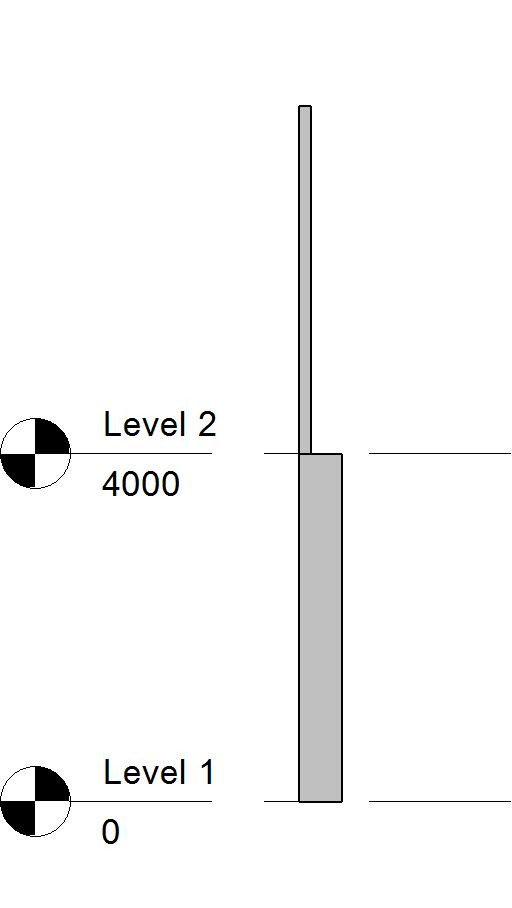

I create bottom wall 500mm thickness and the top wall is 140mm, both using Concrete Material. I'm using align tool to make both exterior face wall aligned.



Attached Images


This user is offline



Mon, Sep 8, 2008 at 4:16:01 AM | walls on different levels not even

#3

brendanh


active

Joined: Sat, Aug 23, 2008
2 Posts
No Rating


I guess align does work.  I tried it unsuccessfuly before, but it's apparently just a matter of the walls being close enough for align to work.  Thanks.




This user is offline



Tue, Sep 9, 2008 at 7:14:45 AM | walls on different levels not even

#4

chiragpklg


active

Joined: Tue, Mar 25, 2008
90 Posts
4 Stars: 11 Votes


u can better try out for align it works

-----------------------------------

Chirag C. Pawar

Cad Solution Application Senior Engineer

KLGSystel Ltd. India

301, Pujit Plaza, Plot No. 67,Sector 11, CBD Belapur,Navi Mumbai - 400614, Maharashtra, India.Tel    .:    +91 22 409 16777. Extn. - 718Fax   .:    +91 22 275 76461.Mob  .:   +91 99 698 66851.Email.:    chiragp@klgsystel.com

Web  .:    www.klgsystel.com

This user is offline
