Forums >> Revit Structure >> Technical Support >> Incline slab finish with horizontal base

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Sep 3, 2008 at 2:29:57 AM | Incline slab finish with horizontal base

#1

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating

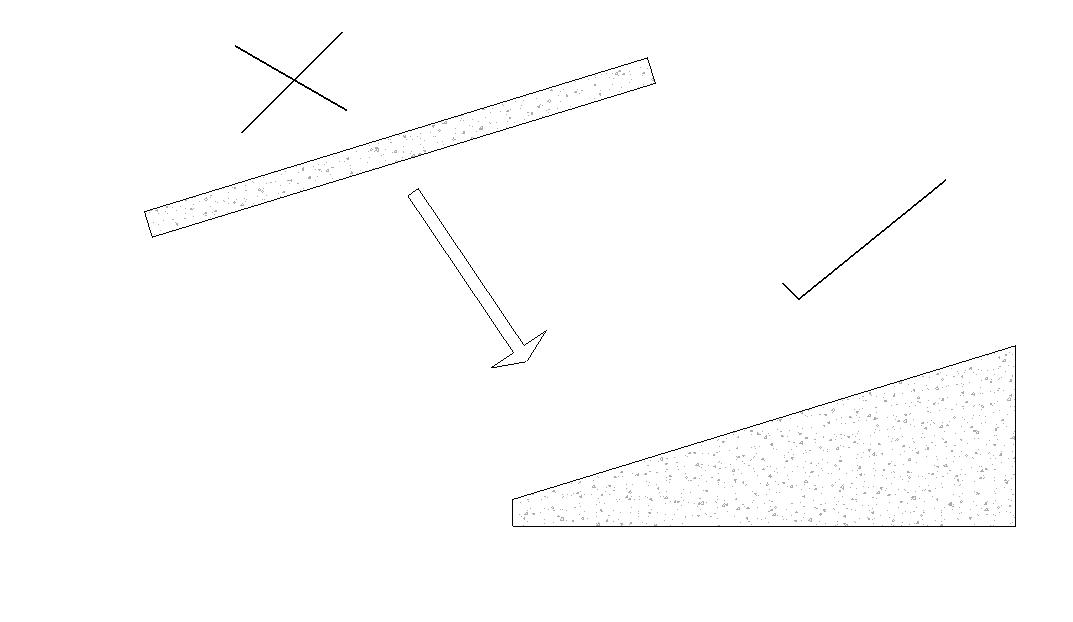

i am not abel to create a slab with incline finish face and horizontal base...heres a attached image to clear my doubt.

Attached Images


This user is offline



Wed, Sep 3, 2008 at 3:35:15 AM | Incline slab finish with horizontal base

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Create a "RAMP" to make that "Slab".... or create a in place slab with extrusion with that shape....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Sep 3, 2008 at 4:13:45 AM | Incline slab finish with horizontal base

#3

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating

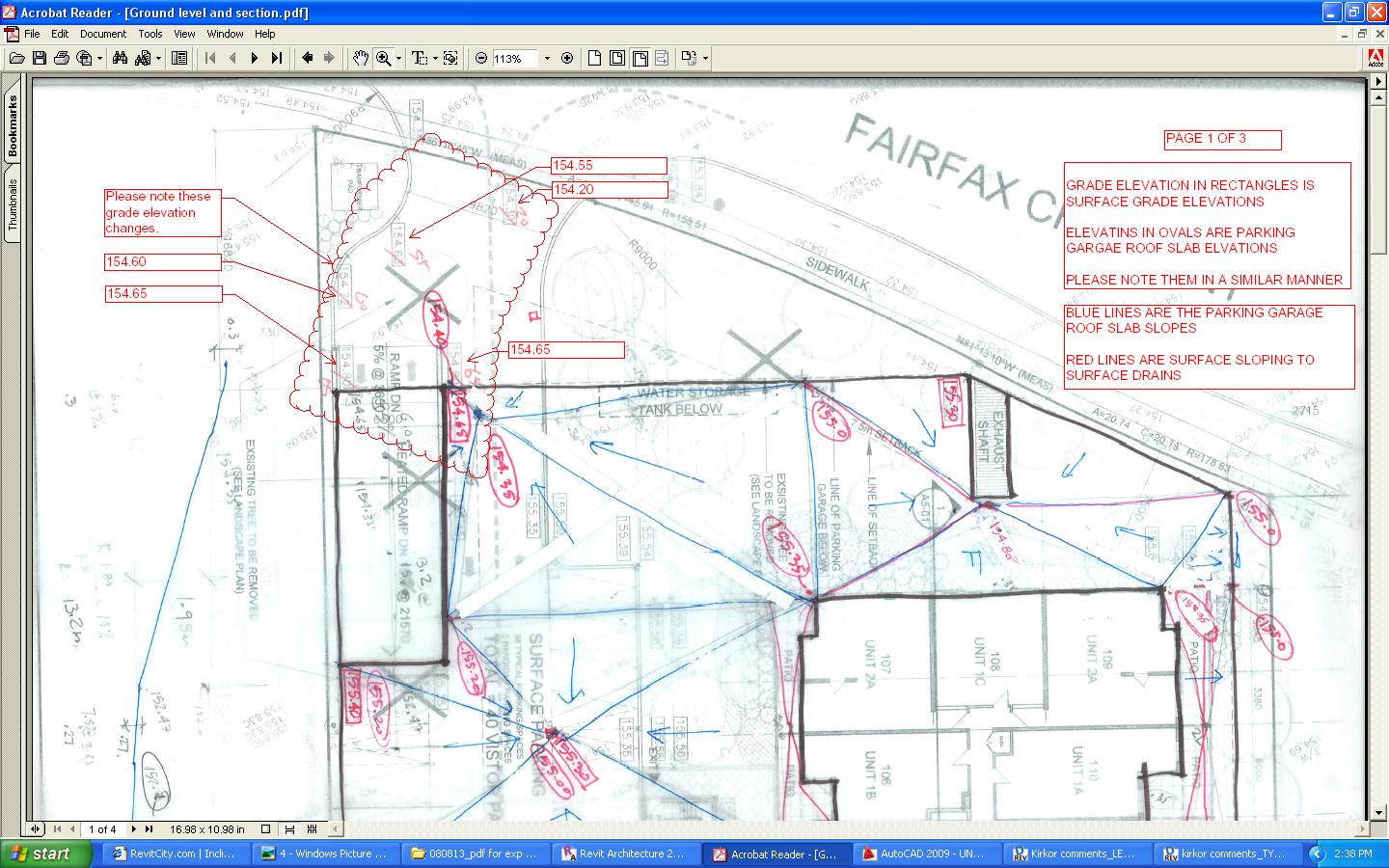

actually i have to make the site servicing drawings is too complicated in levels (its basically for the slab drains and area drains..and its impossible to make ramp for every sloping slab here is a image to show wat i want..

 its a site plan with the proposed site grading...



Attached Images


This user is offline



Wed, Sep 3, 2008 at 4:35:08 AM | Incline slab finish with horizontal base

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Well, you can draw a SLAB with two (2) "material" and tickness like: first material with 0.01m tick.. and the second with 0.39m tick but Check ON the "VARIABLE", then when you pick the slab and change the elevation points in the right corner (like in your first image) 0.40m, the slab stay like a RAMP....



Edited on: Wed, Sep 3, 2008 at 4:35:37 AM

Edited on: Wed, Sep 3, 2008 at 4:36:50 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Sep 4, 2008 at 1:39:47 AM | Incline slab finish with horizontal base

#5

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating


thanks a lot ..was not knowing its so simple

This user is offline



Thu, Sep 4, 2008 at 3:43:22 AM | Incline slab finish with horizontal base

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Yeah, you also can create-in-place with extrusions or swept blend that element and change the category family to floor/slabs.... there are several ways to do that....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
