Forums >> Revit Structure >> Technical Support >> hollow mullions

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Aug 29, 2008 at 2:35:29 AM | hollow mullions

#1

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating


can anybody tell me how to make a hollow profile for mullion of curtain walls

This user is offline



Fri, Aug 29, 2008 at 2:38:51 AM | hollow mullions and corner mullions

#2

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating


and also how to make mitered corner joint...coz at the corners mullions form a butt joint which in case of a odd shape doesnt work out..

This user is offline



Fri, Aug 29, 2008 at 3:31:30 AM | hollow mullions

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Hi, to create a profile mullion you go FILE>NEW>FAMILY and chhose Metric(Imperial) Profile-Mullion.rft or also you can chose Metric(Imperial) Profile-Hosted.rft and change the "category and family" to "mullion"....., but in this case use the first one...






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Aug 29, 2008 at 4:08:31 AM | hollow mullions

#4

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating


i followed the above thing and loaded in the project but it is showing this dialogue The selected mullion profile either contains more than one profile loop or an open profile loop and cannot be used. Valid profiles can only have a single continuous closed profile loop. i want to create a hollow profile


This user is offline



Fri, Aug 29, 2008 at 6:39:28 AM | hollow mullions

#5

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating


THIS IS A TYPE OF PROFILE I AM LOOKING FOR ...

Attached Images


This user is offline



Fri, Aug 29, 2008 at 8:16:48 AM | hollow mullions

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

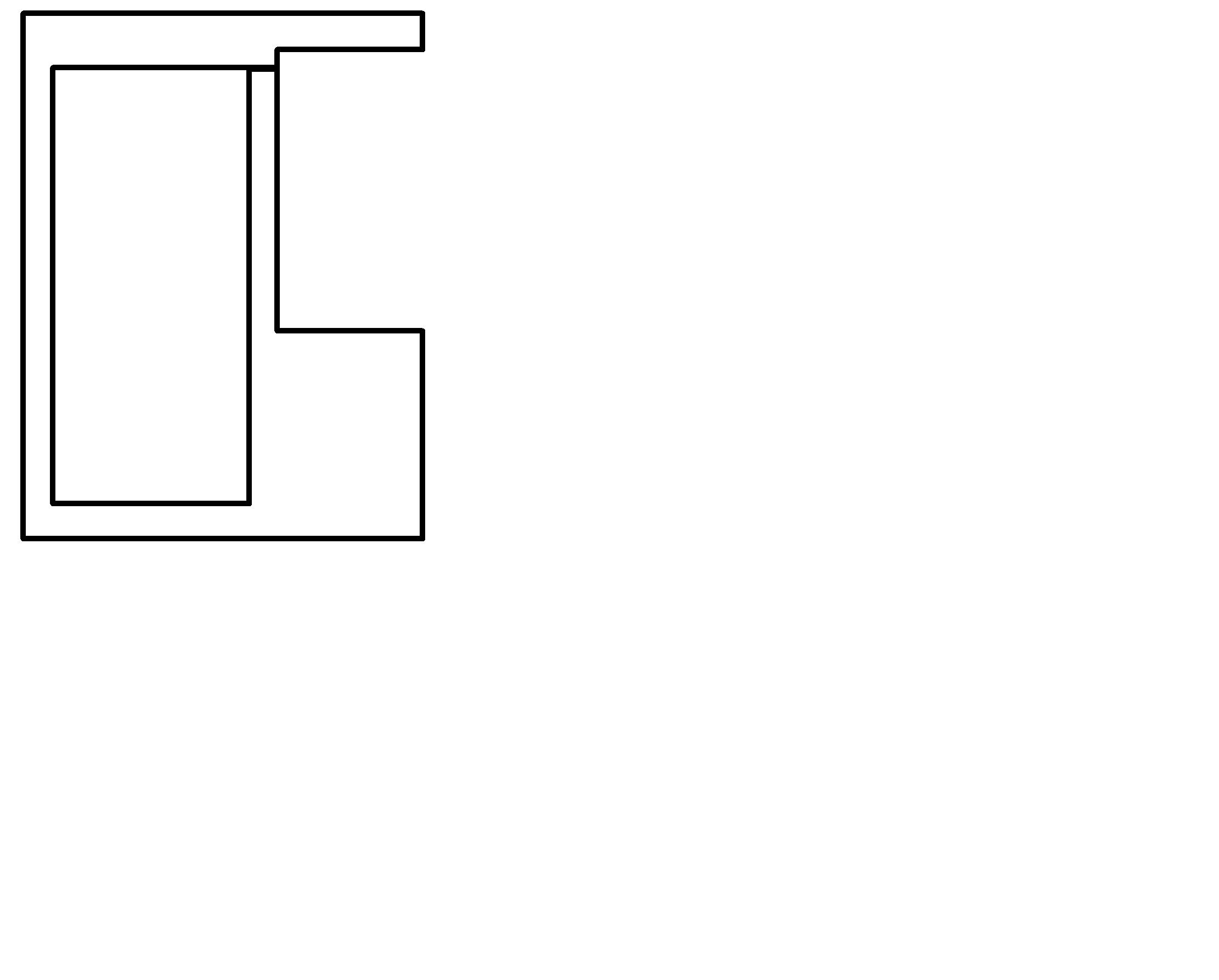

You can create a mullion like that (i just did it right now), what you must to do is draw that shape BUT you must create 2(two) aditional lines (no matter where) intersecting the 2 lines (the minimum space beetween is 0.00021)" and trim each other to create ONE "polyline", did you understand?



Edited on: Fri, Aug 29, 2008 at 8:56:52 AM

Edited on: Sat, Aug 30, 2008 at 4:31:35 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Aug 31, 2008 at 11:13:01 PM | hollow mullions

#7

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating


thanks a lot

This user is offline



Thu, Sep 4, 2008 at 5:15:27 AM | hollow mullions

#8

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating


but is it like u cant make hollow profiles may be handrail, frames, sweep, etc.


This user is offline



Thu, Sep 4, 2008 at 5:18:28 AM | hollow mullions

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Sorry, now, i don't understand your point?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Sep 4, 2008 at 5:20:53 AM | hollow mullions

#10

durgeshbrijwasi


active

Joined: Tue, Jul 8, 2008
27 Posts
No Rating


and wat about the joints of the mullion..cant it be a mitered joint..???

This user is offline



Thu, Sep 4, 2008 at 5:46:00 AM | hollow mullions

#11

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Did you create that in a Profile-Mullion Family? Did you try?

See the Video: http://screencast.com/t/k4FX99k6d







Edited on: Sat, Sep 6, 2008 at 9:28:37 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
