Tue, Aug 26, 2008 at 4:11:39 AM | Level Test & Dimensions

#1

Argyll


active

Joined: Thu, Aug 7, 2008
6 Posts
No Rating


Is it possible to display levels with the title and dimension shown at the end of the line rather than above and below and if so, how is it done? I'd like to show levels in the following way:



Floor Level 2700 ----------------------------------------------------- 2700 Floor Level


This user is offline



Sat, Aug 30, 2008 at 1:24:09 PM | Level Test & Dimensions

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

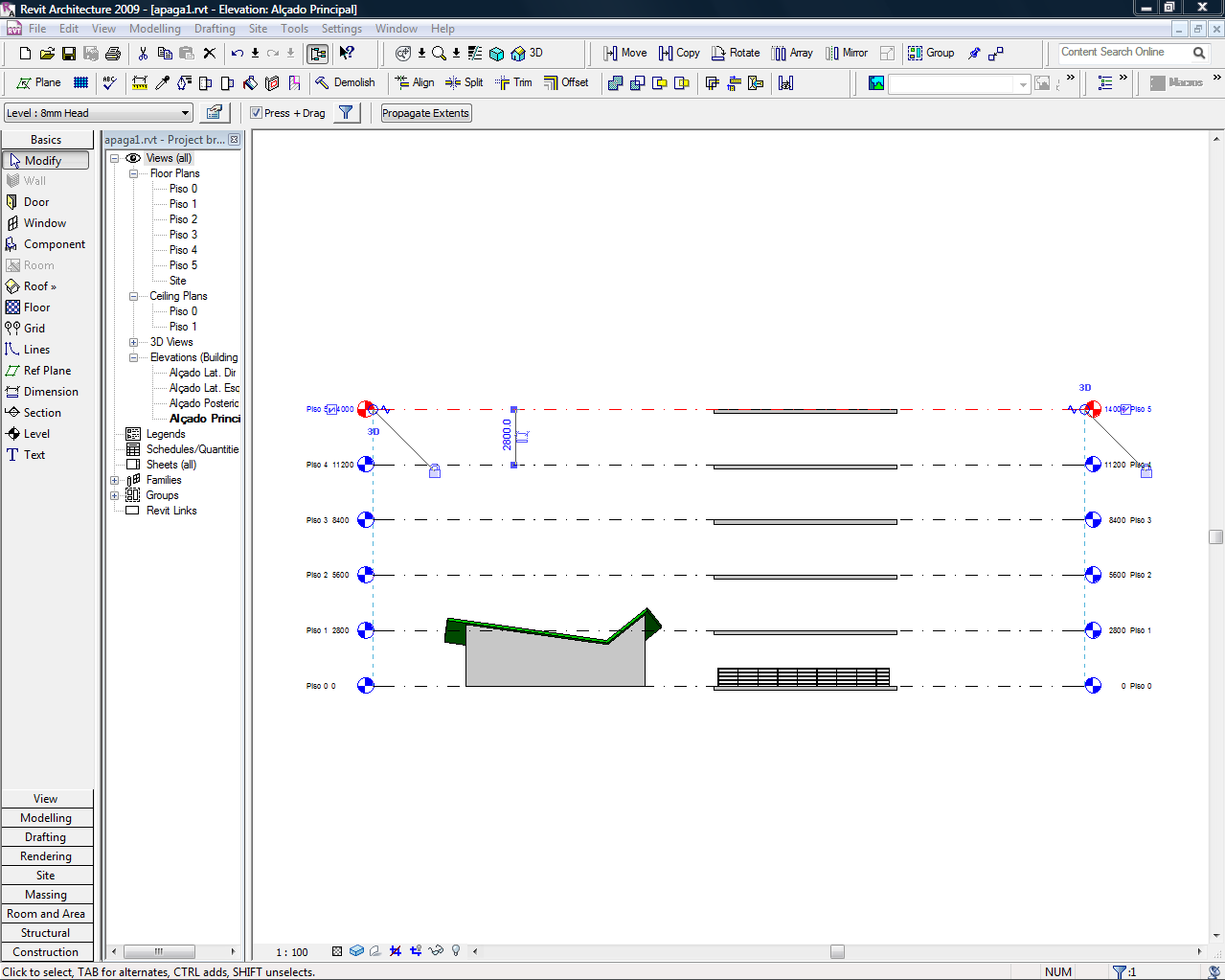

Hi, YES it's possible, you can create a annotation family and use them in your project, pick in the Line Level and go to properties and change the "Head" to the new one... see the image and i put a Annotation family to you, edit them and change if you want....





Attached Images


Attached Files

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Aug 31, 2008 at 3:57:36 AM | Level Test & Dimensions

#3

Argyll


active

Joined: Thu, Aug 7, 2008
6 Posts
No Rating


Thank you very much Typhoon. I'm not that experienced with Revit at this point in time but I opened the file and loaded it into a project, which I think is the right way to do it but if not I'd appreciate another explanation of how it should be done. It also only seems to be available from the properties dialog, which again I asume is correct as there is no option to load it directly.

This user is offline



Sun, Aug 31, 2008 at 9:33:27 AM | Level Test & Dimensions

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, now what you want to do is: File>load from Library>Load Family and choose the folder where you save the family i send you (must save in "Metric (Imperial) Library - Annottations), after loaded pick in the level line, go to properties and Edit/New, then where is "Symbol" choose the family name you just load to project, that's it.... if you want to change anything go to File>Open>Metric (Imperial) Library - Annottations>Mlevel_Head_-_Circle2.rfa, then change, save and "Load to Project"....



YOU WELCOME (WWhub i don't do other post....)



Edited on: Sun, Aug 31, 2008 at 4:54:36 AMEdited on: Sun, Aug 31, 2008 at 7:17:08 AM

Edited on: Sun, Aug 31, 2008 at 7:20:31 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Aug 31, 2008 at 11:41:42 AM | Level Test & Dimensions

#5

Argyll


active

Joined: Thu, Aug 7, 2008
6 Posts
No Rating


Thank you my friend this is greatly appreciated. I had already copied the file into the correct folder but didn't know what to do with it from there. You have been of great help so thank you again.

This user is offline
