Tue, Aug 19, 2008 at 2:15:17 PM | brace display in plan view

#1

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes

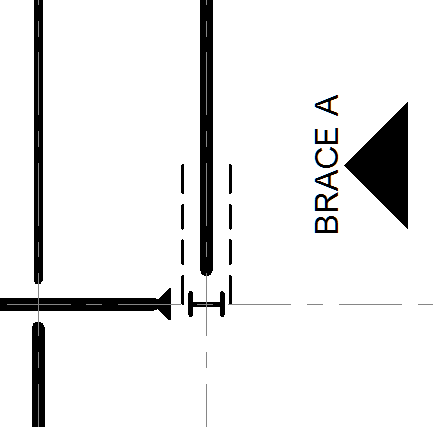

my vertical bracing is displaying incorrectly in course plan view and I can't seem to figure out how to correct it.  I can override the settings for each of them and get what I want (parallel, hidden 3/32 lines, weight = 4).  But I can't for the life of me figure out what to change in object styles in order to control that.  I've changed the settings for Vertical Bracing under Structural Framing, and it has no effect.  Just for kicks, I changed the color of all items under Structural Framing, and the brace stick symbol did not change.

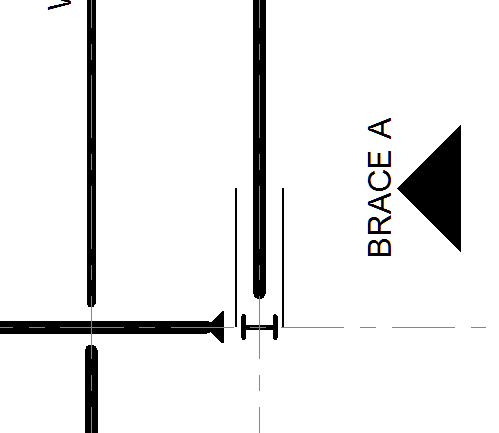

It's currently displaying as a solid line, black, line weight = 3.

Thanks!!



Attached Images


This user is offline



Tue, Aug 19, 2008 at 2:26:50 PM | brace display in plan view

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 185 Votes


Do you try to edit the family and change the "Visibility in Coarse, medium and fine" and change the VG parameters into the family and not in the project?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Sep 30, 2008 at 2:02:00 PM | brace display in plan view

#3

WWCPD


active

Joined: Tue, Sep 30, 2008
1 Posts
No Rating


You need to go into object styles and select the annotation categories tab at the top, once you're here you'll see "brace in plan view symbols" which is what affects how the vertical bracing displays in a coarse view in a plan and not the settings for vertical bracing under the structural framing tab within model categories. This affects how the bracing displays in medium and fine detail fior all views.

 Must admit however I only know this due to a lot of frustraiton myself with exactly the same thing, let me know how it goes....


This user is offline



Wed, Feb 4, 2009 at 9:34:34 PM | brace display in plan view

#4

easter


active
easter Avatar

Joined: Wed, Jan 9, 2008
19 Posts
No Rating


however this changes both the vertical and other usage types. how do you just change the other usage type to have a separate line type and weight.

cheers


This user is offline
