Forums >> Revit Building >> Technical Support >> eliminate cut profile in section view

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Aug 11, 2008 at 4:25:40 PM | eliminate cut profile in section view

#1

markuspirker


active

Joined: Tue, Jul 15, 2008
16 Posts
No Rating

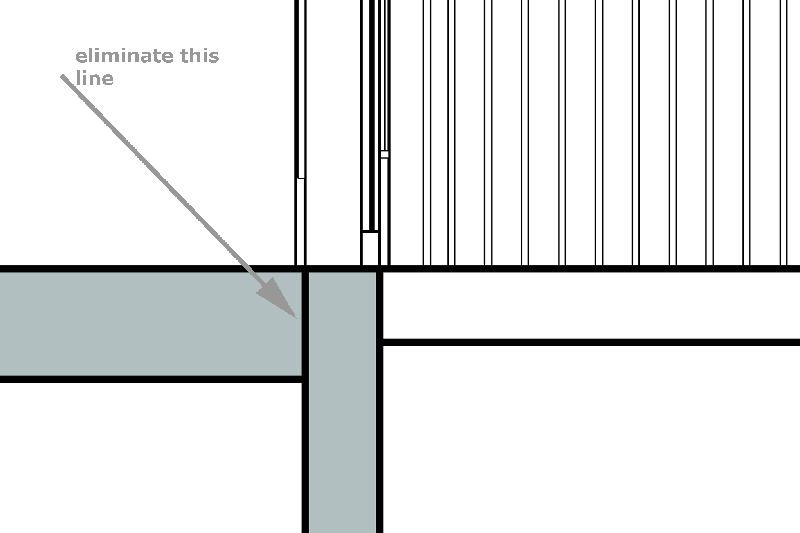

I want to eliminate the display of the common edge between walls and floors in section (see  image) but can't get it to work. any advice?

REVIT 2009



Attached Images


This user is offline



Mon, Aug 11, 2008 at 4:41:52 PM | eliminate cut profile in section view

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Do you use "Join Geometry" between the walls and the floor?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Aug 11, 2008 at 5:03:08 PM | eliminate cut profile in section view

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Use your linework tool with an invisible line.  Hoover over the slab edge and when you have the slab, make that invisible.  Do this again for the wall but when you get this one, you will want to adjust the invisible line so that it only hides a portion of the line.  There should be blue grips that you can stretch into position.

This user is offline



Tue, Aug 12, 2008 at 11:34:24 AM | eliminate cut profile in section view

#4

markuspirker


active

Joined: Tue, Jul 15, 2008
16 Posts
No Rating


Thank you, the 'join geometry' works. (It's soo obvious once you know which button to push)

thank you all :-)






This user is offline



Tue, Aug 12, 2008 at 12:23:27 PM | eliminate cut profile in section view

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


You Welcome....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
