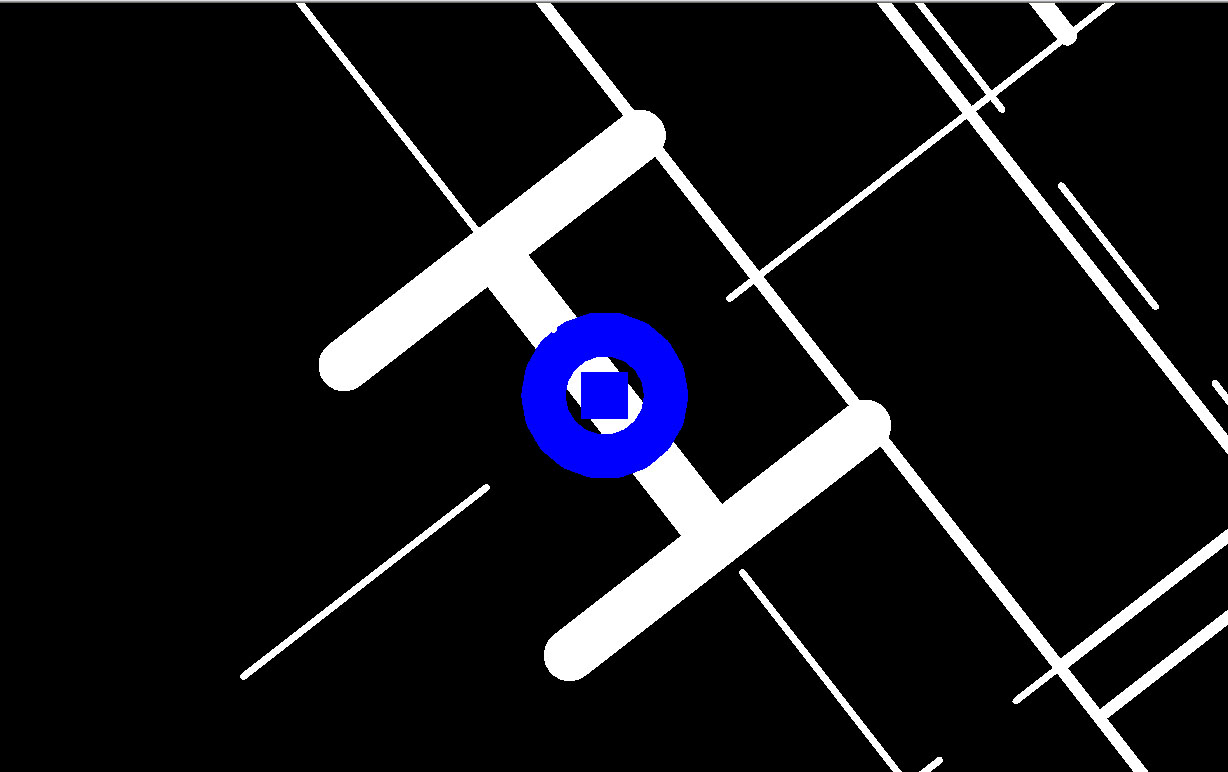

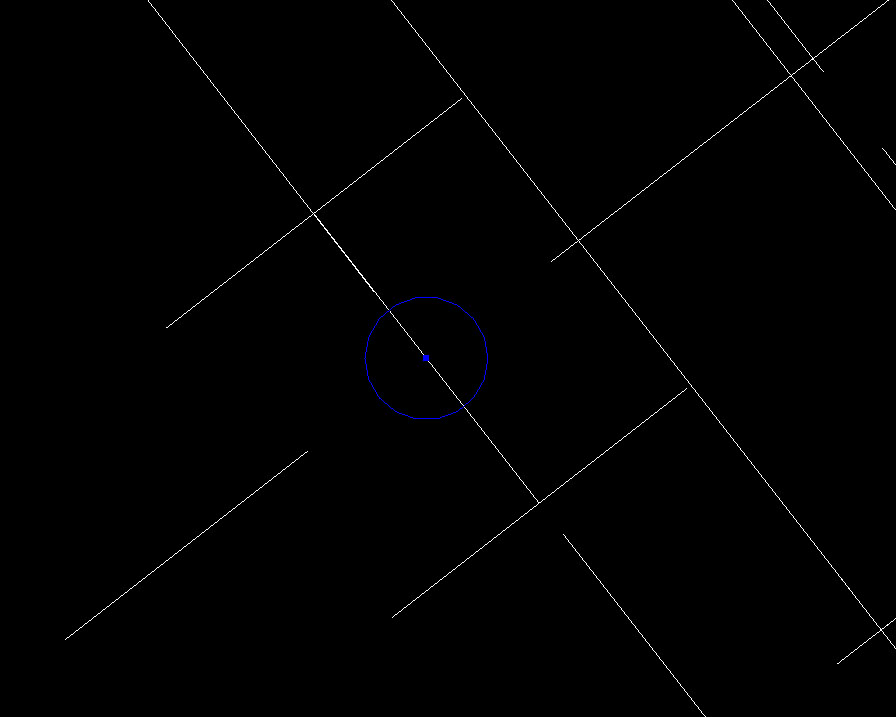

How do I hide the blue circle at the colun axis in Revit Architecture 2009? Autodesk says it is an analytical model symbol from structural, but structural says they have no analytical model and suggested to check our VG and turn off analytical, but no analytical heading is listing. Please view image and advise. Thanks
|
This user is offline |
|
 |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
I just post this in another post but: You can edit that column, select with a crossing window and go to the "Filters" and check if there is a "Model Line", if so check only the model line and delete them...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Sat, Sep 1, 2007
45 Posts
 |
Go to VV > Check the box "show hidden categories" . Now, when you click open the structural column- you should see the Analytical Model check box. Uncheck.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Hi MGR2820, you have right but in architectural is not "show hidden categories" = "show categories from all disciplines" then, like you said "open the structural column- you should see the Analytical Model check box. Uncheck."
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Tue, Jan 27, 2009
24 Posts
No Rating |
Revit 2009: "I have a blue line in 3D showing from the column" Analatical is switched off andis still showing?? See attached image... Thanks
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Is this a coulmn you have copy/monitored?
|
This user is offline |
|
|
|
active
Joined: Thu, Nov 10, 2005
390 Posts
|
The blue lines and blue dots are just the analyitical models. Refer to above post...their steps show you how to turn them off. It is not a model line...is your analyitical model that is used to transfer to structural analysis programs.
|
This user is offline |
|
|
|
active
Joined: Tue, Jan 27, 2009
24 Posts
No Rating |
Yes copied, analytical is still switched off however when going to VV
|
This user is offline |
|
|
|
active
Joined: Thu, Nov 10, 2005
390 Posts
|
Its your analytical. Check columns, foundation, framing....and also check any links that you may have. If you have a link you will have to check these in the VV of that link as well. Even if its copy monitered your VV settings will either based off the link you are moniering (which you can change) or though your copied model in VV.
|
This user is offline |
|
|
|
active
Joined: Tue, Jan 27, 2009
24 Posts
No Rating |
sot thanks, found it was a link that caused it to be on! Thanks for help!
|
