Forums >> Revit Building >> Technical Support >> Manipulating Reference Plane in Family Type
|
|
|
active
Joined: Thu, Jun 5, 2008
12 Posts
No Rating |

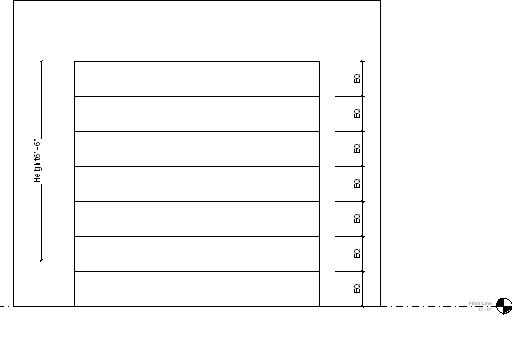

I am relatively new to Revit. I'm trying to create a new garage door type from an existing one by adding detail and revising the opening size. How do I move the reference planes and dimensions? When I move the top door the bottom reference plane moves with it. And vice versa. What I'm trying to achieve is to resize the opening and delete one of the "eq" dimensions so the panels are similar to what is already there.
|
This user is offline |
|
 | |
|
|
active
Joined: Thu, Jun 5, 2008
12 Posts
No Rating |
This is a better picture
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
"How do I move the reference planes and dimensions?" - you must Unconstrain them, pick on that obj. and uncheck the blue "Lock"...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Hi see the video: http://screencast.com/t/2L67VIZmX
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Also see this: http://www.revitup.co.za/_mgxroot/page_10883.php It's a FREE site with great Tips...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
19889 Posts
 |
Because it is hard to track down every constraint, editing somebody else's family is sometimes more of a pain than starting over. Learn how to use constraints and plan ahead! By that, I mean place your reference planes/lines first, don't add them later then try to constrain already added linework/objects to them.
|
