I have a curtain wall that behaves erratically.

It is a balcony window, and has a sliding door on it.

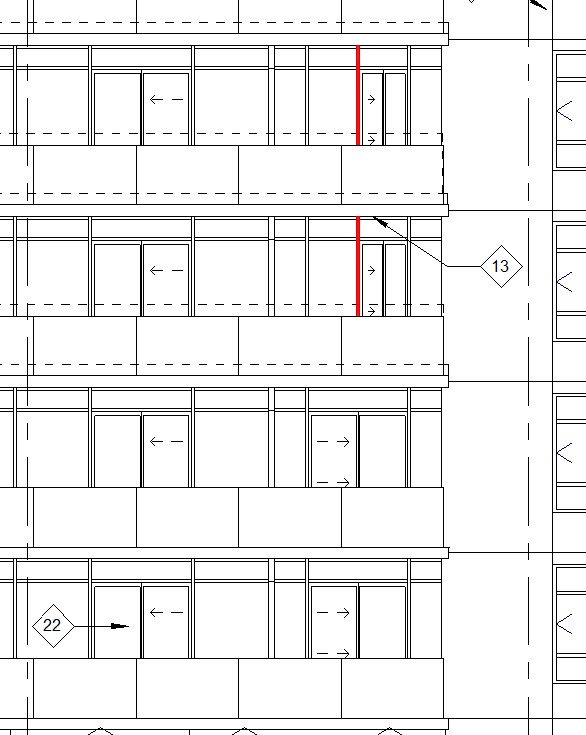

On some floors it works perfectly, on other floors it adds a grid line + mullion (shown in red), that shrinks the door.  Even if you delete the whole system and copy the one below (the one that works) the weird mullion is added.  I managed to exclude the grid segments and delete mullions and make it sort of work... but they keep coming back...

This is driving me nuts...

THANKS!

Attached Images

This user is offline

robinballew

active

Joined: Sun, Nov 27, 2005
298 Posts

-----------------------------------
BallewDesigns.com

This user is offline

View Website

rkitect

active

Joined: Thu, Dec 16, 2004
792 Posts

When you copy, do you get any warnings or error messages?  When you copy up, do you copy up in elevation view or do you use the "Paste Aligned > Select Levels By name"?

Are you saying that you delete that grid line and it just comes back?  That is an odd one.

-----------------------------------

-//------------------------

Carl - rkitecsure[at]gmail.com

Need help? I'm probably in my chat room!

You fell victim to one of the classic blunders. The most famous is never get involved in a land war in asia, but only slightly less well known is this! Never go in against a Sicilian when death is on the line!

This user is offline

View Website

cnhayes

active

Joined: Tue, Dec 5, 2017
0 Posts
No Rating

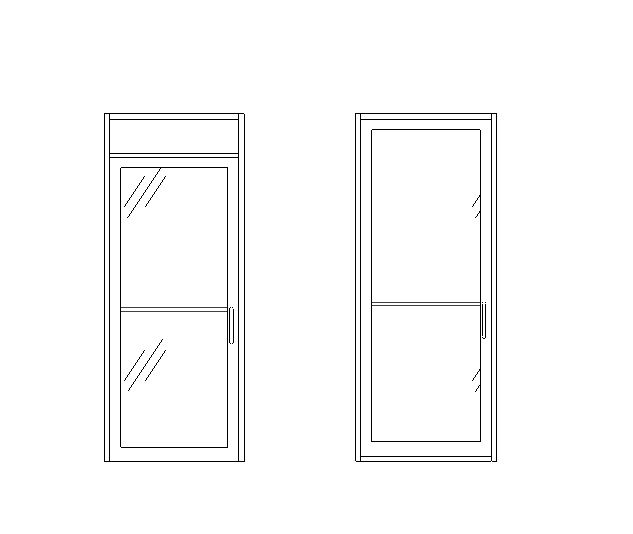

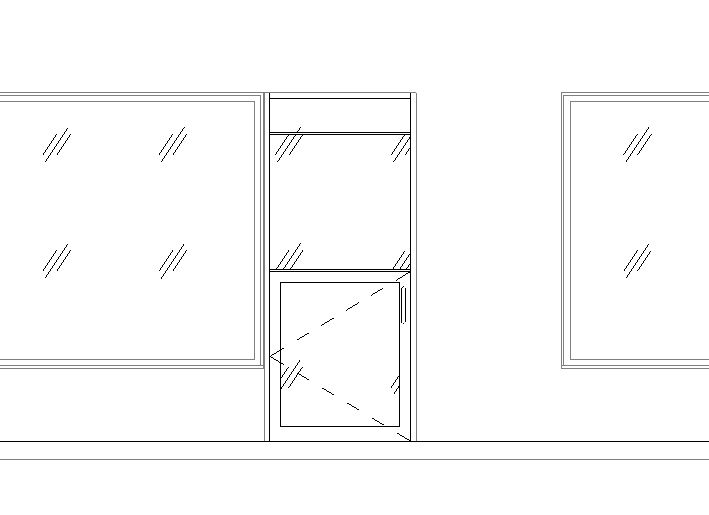

10 years later and I'm encountering this problem in Revit 2018...  except it's a horizontal grid for my situation..  The curtain wall type is set to Fixed @ 1.  This seems to happen whenever I move the curtain wall or copy it..

Is this one of those things they just don't consider a big deal and haven't addressed it?

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

I think this is just a process error.  You say "The curtain wall type is set to Fixed @ 1.".  I'm not sure what you mean by that.  CW doors adapt automatically to any grid spacing horizontal and vertical.   If you are using a CW type that has fixed spacings, that is probably you problem.  Every new instance will use that spacing.  I prefer to use undefined CW types for a single door.

This user is offline

cnhayes

active

Joined: Tue, Dec 5, 2017
0 Posts
No Rating

"You say "The curtain wall type is set to Fixed @ 1.".  I'm not sure what you mean by that"

The horizontal grid was set to 'fixed number: 1'

I'll agree with process error here.  Changing the existing wall grid to None seemed to do the trick for not adding the center grid when I move or copy the CW.  However, creating a new CW of the same type to place in another location, I'll lose my transom above..  Guess it's not a big deal, just slighting annoying..

Thanks WWHub

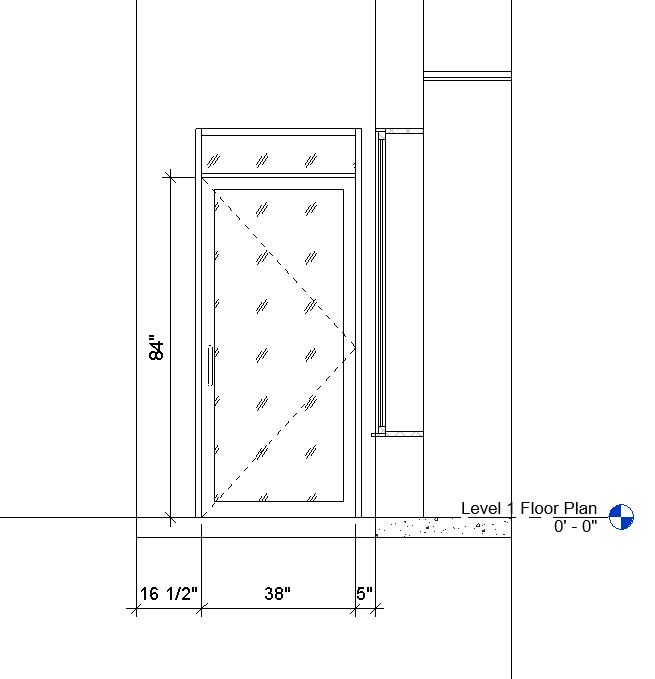

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

You should be able to copy any non defined CW's (no preset settings at all) to multiple locations and have an exact model copy.  I do this all the time.
