this was part of a post i had somewhere else but made a new one so its easier to find if anyone else gets this problem

ok so i got this to work, well sort of. the image looks right and it is well within tolerance but i wish revit was able to do semi automated. i will explain what i mean after i go through how to solve this incase anyone else has the same problem.

select your habndrail

edit

select the rail that isn't meeting the rest

on the options bar select height correction

and place in a figure

finish sketch

you will have to do this a few times untill you get (guess0 the correct height adjustment.

now this is where i wish revit had an option to automatically fix the the height adjustment.

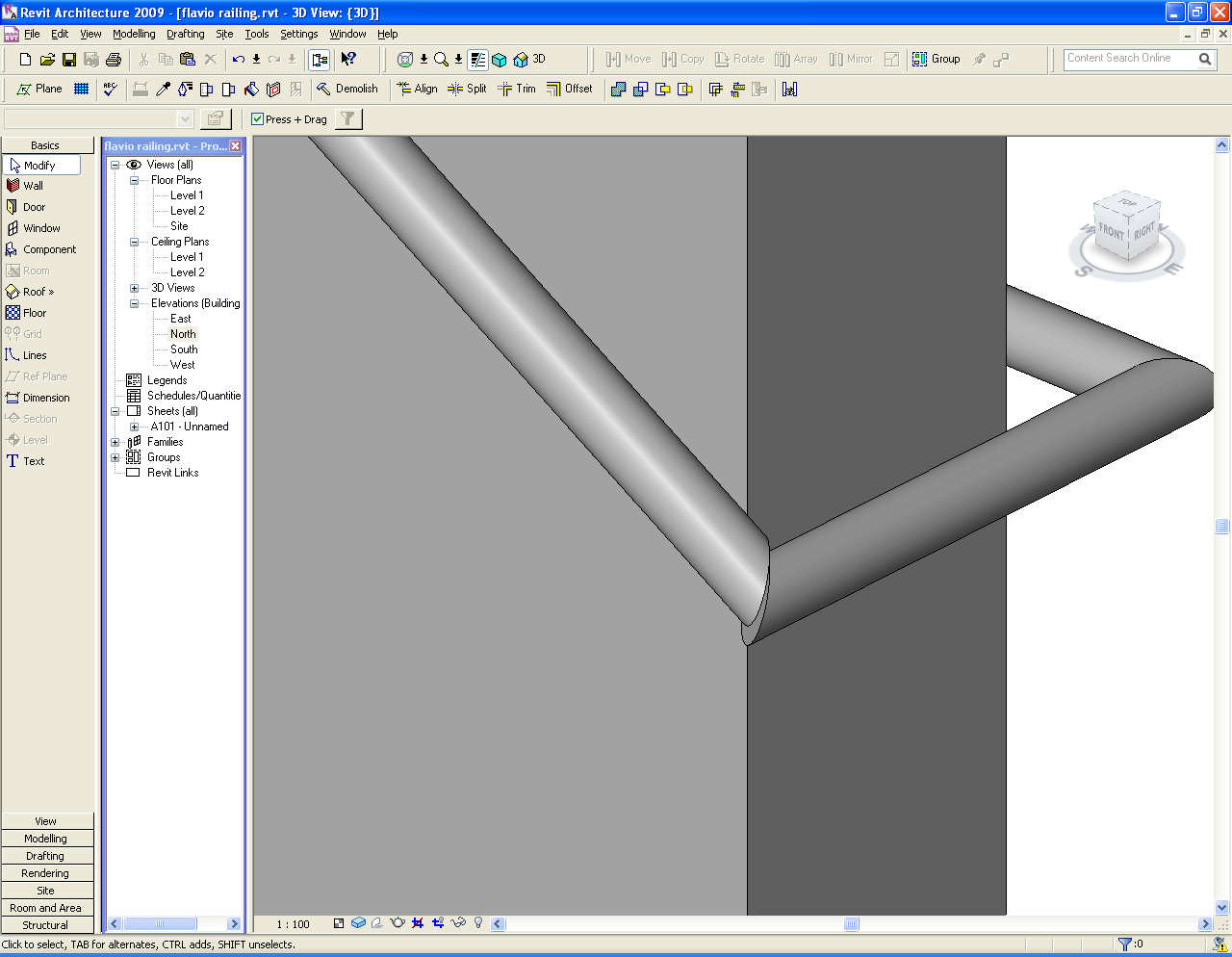

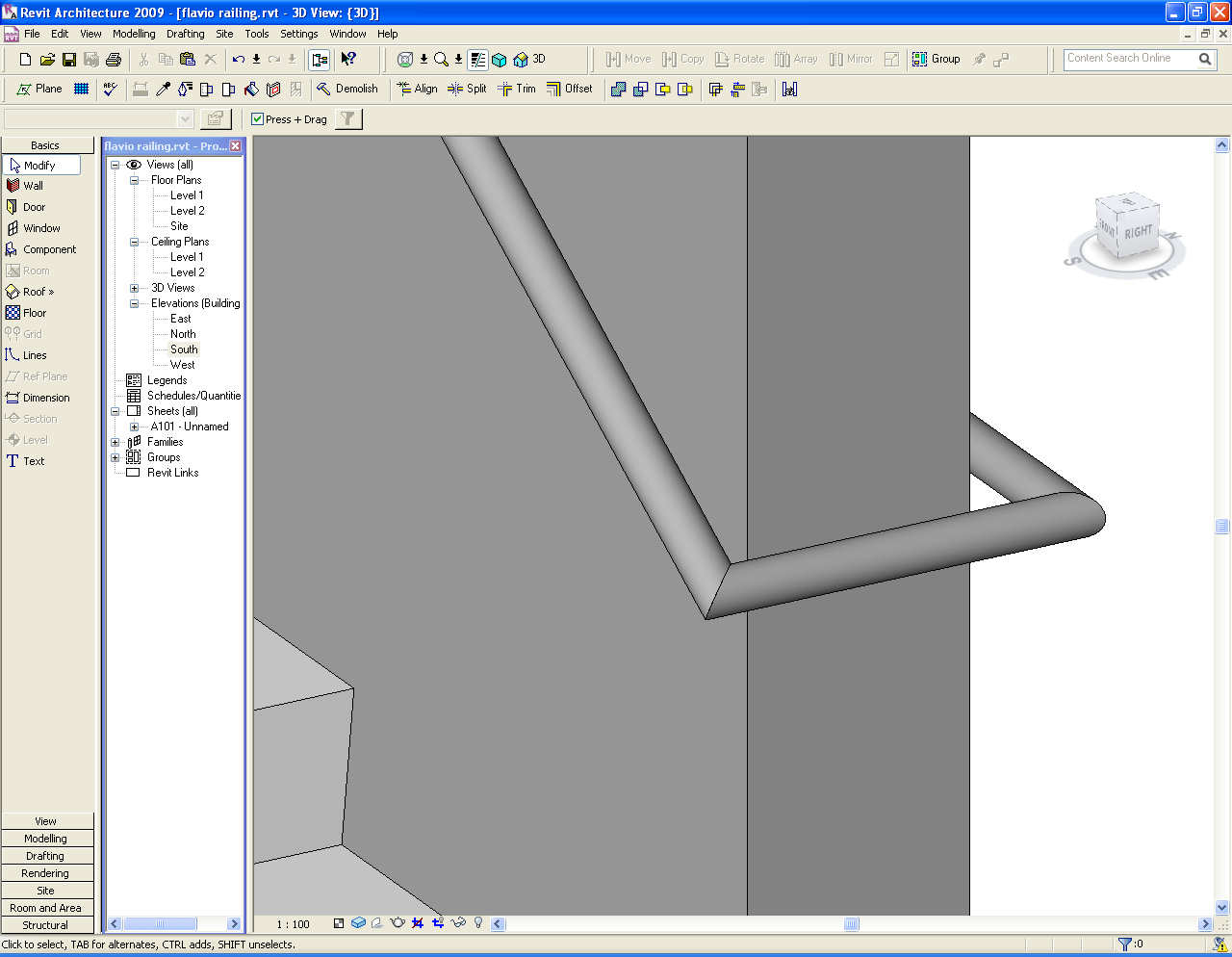

Attached Images

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

Me too, i hope in the next version KING...

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
