Wed, Jul 16, 2008 at 4:30:14 PM | crickets for complex roof w/ multi slopes attached to beams

#1

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


So I had figured this out once before but now i can't remember how.

I have a flat roof that has been attached to beams at different heights to create the slope.

In this roof I have roof drain models that cut into the insulation and at my valleys I have drain 2 feet off the centerline of the beam.

Now my problem is that once I create my individual crickets with a variable thickness insulation the overall thickness protrudes through my roof down into my building.

I am trying to find a clever sequence to create a roof system that can be warped on the top and the bottom of the element.

any ideas?


This user is offline

View Website

Wed, Jul 16, 2008 at 4:40:21 PM | crickets for complex roof w/ multi slopes attached to beams

#2

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


Right after I posted this I saw the similar thread, with no answers.

I believe I am S.O.L. on that one eh?


This user is offline

View Website

Wed, Jul 16, 2008 at 4:50:03 PM | crickets for complex roof w/ multi slopes attached to beams

#3

lunchtrayrider


active

Joined: Sun, Jun 24, 2007
592 Posts
3.5 Stars: 7 Votes


sol on modifying the top and bottom of a roof system family I believe.  The only solution (was discussed as floors before too, try a search) was to make an in place family.  Maybe someone has a new solution they could share.

-----------------------------------
I like scooters. and motorcycles.

This user is offline



Wed, Jul 16, 2008 at 6:11:46 PM | crickets for complex roof w/ multi slopes attached to beams

#4

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


I feel like breaking something Smile

This user is offline

View Website

Wed, Jul 16, 2008 at 10:41:06 PM | crickets for complex roof w/ multi slopes attached to beams

#5

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


So you require points edits that are different to both the top of the roof and the bottom?  Yes?

Do it as two roofs, overlap them in the centre and join geometry.  I've had success doing this.  That is, if that's what your asking for?


-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

Thu, Jul 17, 2008 at 12:53:36 AM | crickets for complex roof w/ multi slopes attached to beams

#6

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


thats one direction i had tried. it seemed like i was on the right path but it just oculdnt quite get there. tomorrow when i get to the office i will post a sample.

This user is offline

View Website

Thu, Jul 17, 2008 at 5:14:27 PM | crickets for complex roof w/ multi slopes attached to beams

#7

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes

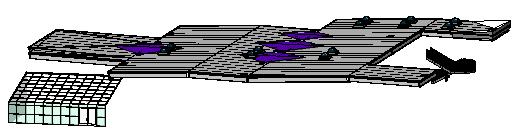

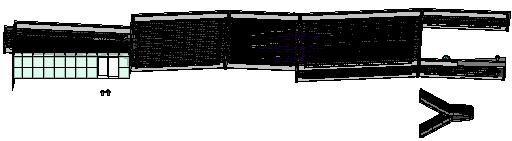

Here is an image of the top and bottom of the roof.

You can see the purple on the underside of the roof deck is the excess insulation i would like to attach to the top of the roof deck.



Attached Images


This user is offline

View Website

Fri, Aug 1, 2008 at 3:13:45 PM | crickets for complex roof w/ multi slopes attached to beams

#8

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


I got this all resolved, for whatever reason in this project when creating an in-place family I had to make sure to put it into roofs. Then i was able to just create voids under the crickets, thus leaving me a roof that can slope both on top and bottom.
