Is it possible to create a net in Revit? I am modeling a hockey rink which has protective netting above the glass. Would I have to download something for this? Thanks.
|
This user is offline |
|
 |
|
|
|
active
Joined: Tue, Jan 16, 2007
1009 Posts
 |
You could probably created a curtain system with empty panels and a thin circular mullion profile as the threading. That way you are able to adjust the spacing and appearance. Or possibly create a family and use a few different length parameters, then use model lines with a large thickness to create the netting. Just brainstorming it seems like there are several options for this depending on the type of control you would like to have over the object.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Jan 10, 2008
2 Posts
No Rating |
What? I'm asking if there is a way to create a net.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Alabaster's thought process is interesting but it would take a lot of components and really eat up the memory. We needed a mesh (net) so we used a metal screen bitmap. It will render correctly but shows as a solid in your 2D work.
|
This user is offline |
|
|
|
active
Joined: Tue, May 22, 2007
27 Posts
No Rating |
Why cant u just create the shape of the net with an extrusion or sweep and apply a hatch pattern to it...
|
This user is offline |
|
|
|
active
Joined: Thu, Dec 13, 2007
135 Posts
 |

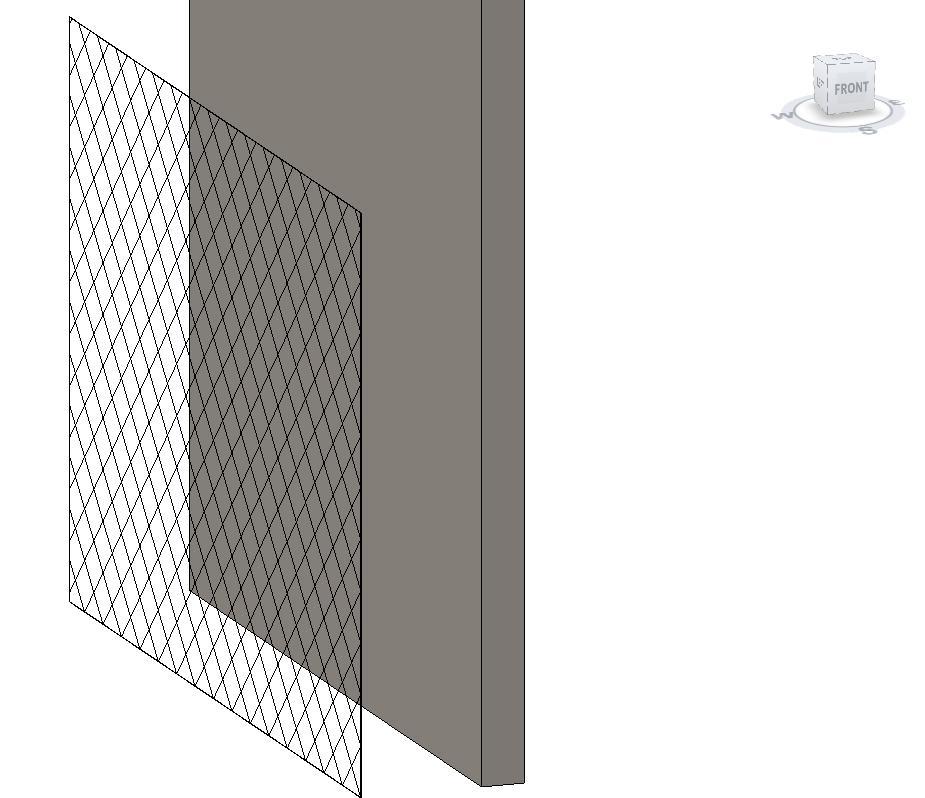

Hey, do these pictures show what you want? The big wall is there to show that the net is transparent, and no rendering has been used.
-----------------------------------
- Core 2 Duo E8400 3ghz
- 756mb Nvidia 9600GSO 256bit
- 6gb Kingston RAM 800mz DDR2
- Windows XP Service Pack 3 32-bit
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
timbo89 .... will that render?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Hi create a Wall for example, and assign the material i post....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

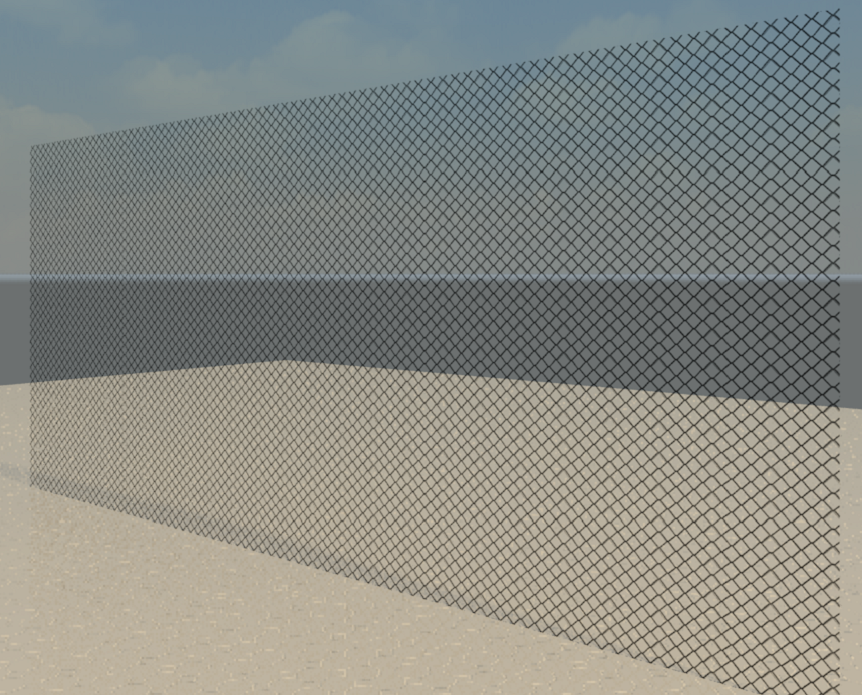

Look the render in medium settings... Edited on: Wed, Jul 16, 2008 at 7:49:45 AM
Edited on: Wed, Jul 16, 2008 at 7:51:21 AM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Typhoon - did you say you posted the material? What name? Thanks.
|
This user is offline |
|
|
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

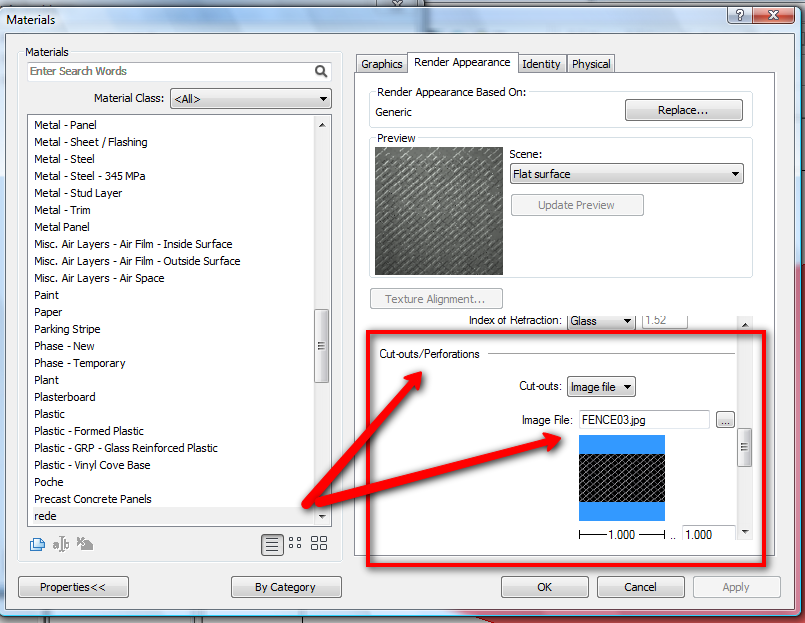

Hi WWhub i don't put the material, only the image but i put now... Pick in the image and save as... or in the folder in revit directory "LOW RES" choose "FENCE03", you have severals with diferent kink of fences... Edited on: Wed, Jul 16, 2008 at 7:48:07 AM
Edited on: Wed, Jul 16, 2008 at 7:54:37 AM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Mon, Oct 9, 2006
9 Posts
No Rating |
Typhoon, your net rendering is exactally what I am trying to achieve. I have saved the image that you have suggested. I created a wall that was only a 1/8" thick and applied the image you posted as the material. However, when I rendered it, it was not transparent as your rendering showed. It kept the black background. How did you accomplish the transparent effect?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Simple, are you looking the image i post now?
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Mon, Oct 9, 2006
9 Posts
No Rating |
That worked great. Thanks. Does that "cut out" feature always work with just a black background?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Why don't you try and then you tell me?
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
