Forums >> Revit Building >> Technical Support >> plan detail callout in section

Search this ThreadSearch this Thread | Page 1 of 2 | 1 | 2 Next >>

Fri, Jun 20, 2008 at 3:28:08 PM | plan detail callout in section

#1

gofastwin


active

Joined: Fri, Apr 11, 2008
11 Posts
No Rating


revit 2009

windows xp



I have a built up wood column in my current project.  In the floor plans I have a plan detail called out.  On the sheet with the plan detail viewport, I also have a section of the column.  On the section I would like to put some sort of callout refering to the plan detail.  This would be sort of like drawing a horizontal section cut.  My first thought is to place a section tag and use the refer to other view option to mark it for the plan detail.  The problem is revit will not let me refer to a plan detail in a section view.



So what is the work around?  At the moment we have a text note calling the column and referring to the plan detail.  I hate doing this because it defeats the purpose of having tags that automatically update.  So now I am stuck with at least one text with leader that I have to monitor incase I move the detail it is referring to.



 Tim


This user is offline



Tue, Aug 5, 2008 at 8:35:48 PM | plan detail callout in section

#2

Katwoman


active

Joined: Wed, May 16, 2007
8 Posts
No Rating


I've had the same problem. The reference plane seems to be linked to the location of the line, did you ever have any luck solving this?

This user is offline



Tue, Aug 5, 2008 at 8:51:29 PM | plan detail callout in section

#3

broncos4life


active

Joined: Thu, Nov 10, 2005
390 Posts
4 Stars: 10 Votes


What I have done in the past when I do this is in the section add a "Section" but have it as a "Detail" vs. "Building Section" or "Wall Section" and I have the section refer to my plan callout.

This user is offline



Tue, Aug 5, 2008 at 8:52:19 PM | plan detail callout in section

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 346 Votes

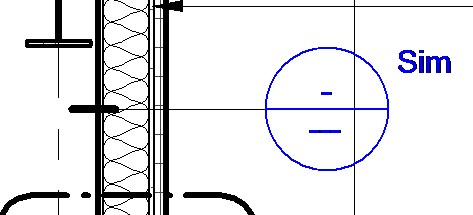

Just use a callout, detail that refers to what you want.  Very...very....very small bubble - see attached.

Attached Images


This user is offline



Tue, Aug 5, 2008 at 9:08:10 PM | plan detail callout in section

#5

Katwoman


active

Joined: Wed, May 16, 2007
8 Posts
No Rating


I'm not sure if I'm following you. Here's a picture of what I'm referring to.

Attached Images


This user is offline



Tue, Aug 5, 2008 at 9:16:39 PM | plan detail callout in section

#6

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 90 Votes


You can create a section from within the section.  I tend to avoid using detail sections in most cases because they have some strange built in visibility limitations.  You must run it vertical first, then rotate it 90°.




-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

Tue, Aug 5, 2008 at 9:50:27 PM | plan detail callout in section

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 346 Votes


As I said, use a callout detail.  This is a section with a callout detail.  The blob at the end of this callout is really the callout bubble.

Attached Images


This user is offline



Tue, Aug 5, 2008 at 10:03:35 PM | plan detail callout in section

#8

Katwoman


active

Joined: Wed, May 16, 2007
8 Posts
No Rating


Thanks that did it. I was having difficulty changing the family category initially. Cheers. kats

This user is offline



Fri, Aug 8, 2008 at 2:32:56 AM | WWHub

#9

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 90 Votes


Quoting WWHub from 2008-08-05 16:50:27

"As I said, use a callout detail.  This is a section with a callout detail.  The blob at the end of this callout is really the callout bubble."

Can't say that I really like that workaround, when its possible to do it correctly.  But hey, if it works...

This user is offline

View Website

Sun, Aug 10, 2008 at 4:59:35 AM | how to make a slope column with analytical line

#10

Jayakumar


active

Joined: Wed, Aug 6, 2008
3 Posts
No Rating



This user is offline



Mon, Mar 25, 2013 at 10:59:41 PM | plan detail callout in section

#11

NobleLP


active

Joined: Mon, Jan 16, 2012
20 Posts
No Rating


Is this still the only way to make a callout that stands alone? I want to add detail callouts in a sudo door schedule or in text


This user is offline



Tue, Mar 26, 2013 at 8:57:11 PM | NobleLP

#12

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 90 Votes


Quoting NobleLP from 2013-03-25 17:59:41

"

Is this still the only way to make a callout that stands alone? I want to add detail callouts in a sudo door schedule or in text

"

With Revit 2013 onwards you could use a view reference tag to do this with the reference other view option.  It can look like whatever you'd like.  I did blog post on it previously:



http://revitrants.blogspot.com.au/2012/10/revit-2013-view-reference-tags.html


-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

Tue, Mar 26, 2013 at 11:05:24 PM | plan detail callout in section

#13

NobleLP


active

Joined: Mon, Jan 16, 2012
20 Posts
No Rating


Thank you! Thank you! Thank you! Thank you! Thank you! Thank you! Thank you! Thank you! Thank you!

Your the man (more than a man really a GOD)


This user is offline



Wed, Mar 27, 2013 at 5:42:48 AM | plan detail callout in section

#14

axdadmin


active

Joined: Thu, Apr 19, 2012
4 Posts
No Rating


In case of Revit 2011 wat i must do.. I dont wanna create view but need symbol .........In view option i found callout which ll create view but i need call out with same view name no along with sim option...........how to get tat option?????/




This user is offline



Fri, Mar 29, 2013 at 4:06:09 PM | plan detail callout in section

#15

NobleLP


active

Joined: Mon, Jan 16, 2012
20 Posts
No Rating


So I'am still wondering if a door schedule can have a view referance call out. I assume not, . . . does 2014 address this?



How are we linking a sheeted detail view of a door jamb to the door schedule?


This user is offline
