Forums >> Revit Building >> Technical Support >> Editing a Mass to attach to roof.

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jun 13, 2008 at 10:23:49 PM | Editing a Mass to attach to roof.

#1

Shnail


active

Joined: Fri, Nov 30, 2007
43 Posts
No Rating

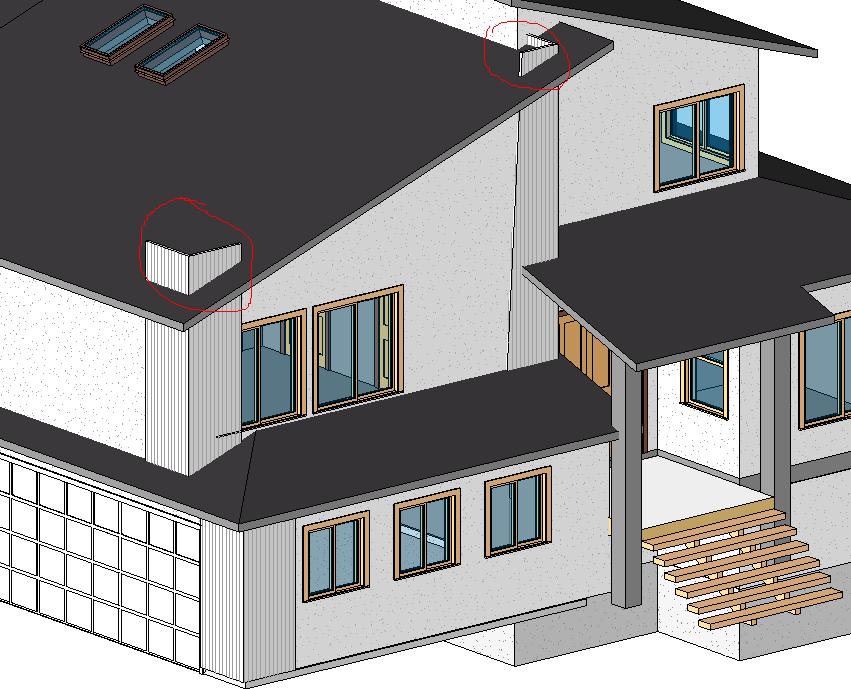

so i have a client that wants to use corigated steel, or aluminum as a siding feature, that sticks out about 2" past the stucco. i figured the best way to accomplish this is to create a mass, and apply a finish to them. well, it worked great, but now i have another problem. as you can see in the picture the masses are sticking through the roof. i am hoping that there is an easy way to edit these to follow the bottom of the roof pitch.

anyone have any ideas? they are greatly appreciated

Tim



Attached Images


-----------------------------------

Revit user since 2008.

This user is offline



Sat, Jun 14, 2008 at 12:20:41 AM | Editing a Mass to attach to roof.

#2

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


I think instead of Mass you can use a wall with built-in reveal/sweep. Just edit the wall profile to shape it accdgly.

-----------------------------------

Motto: "No Post left behind"

This user is offline



Sat, Jun 14, 2008 at 12:33:48 AM | Editing a Mass to attach to roof.

#3

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes

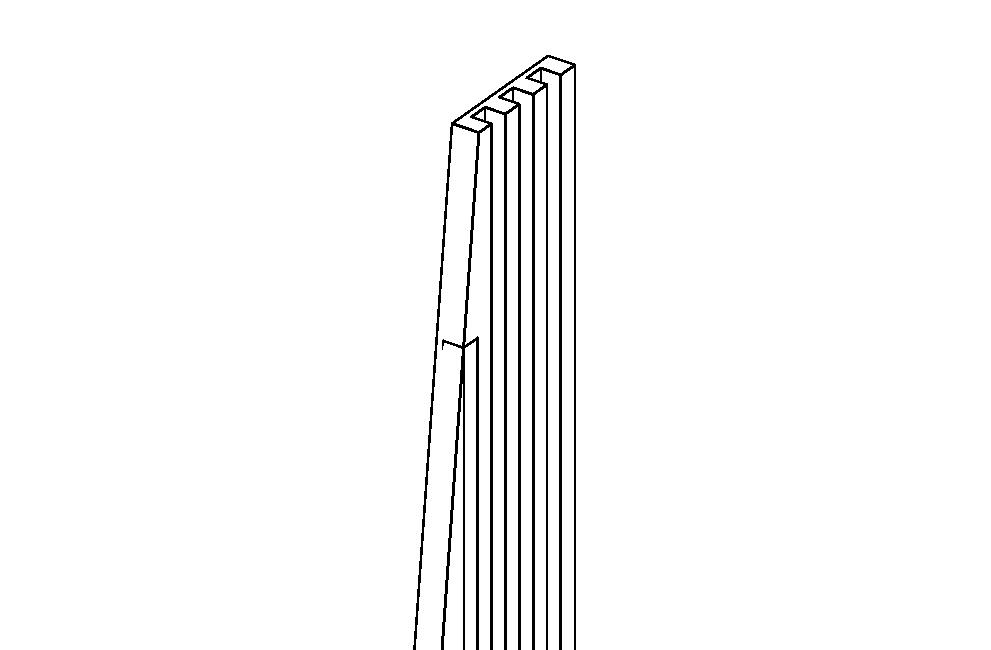

Correction! you don't need to use built-in sweep/reveal. See attached. Actually, I just use a square profile but you can use a semi-circle or a circular profile to cut you wall. Then a wall can be attached to thr roof.

Attached Images


-----------------------------------

Motto: "No Post left behind"

This user is offline



Mon, Jun 16, 2008 at 3:53:43 PM | Editing a Mass to attach to roof.

#4

Shnail


active

Joined: Fri, Nov 30, 2007
43 Posts
No Rating


thanks for the suggestions. i'm not sure i follow what you mean by profile. how did you create the profile? a quick how you did it, would be very helpful.

thanks


-----------------------------------

Revit user since 2008.

This user is offline
