Wed, Apr 6, 2005 at 9:23:34 PM | Frame & Door Type Elevation Drawing

#1

JOYSMIDNIGHT


active

Joined: Fri, Mar 4, 2005
30 Posts
No Rating

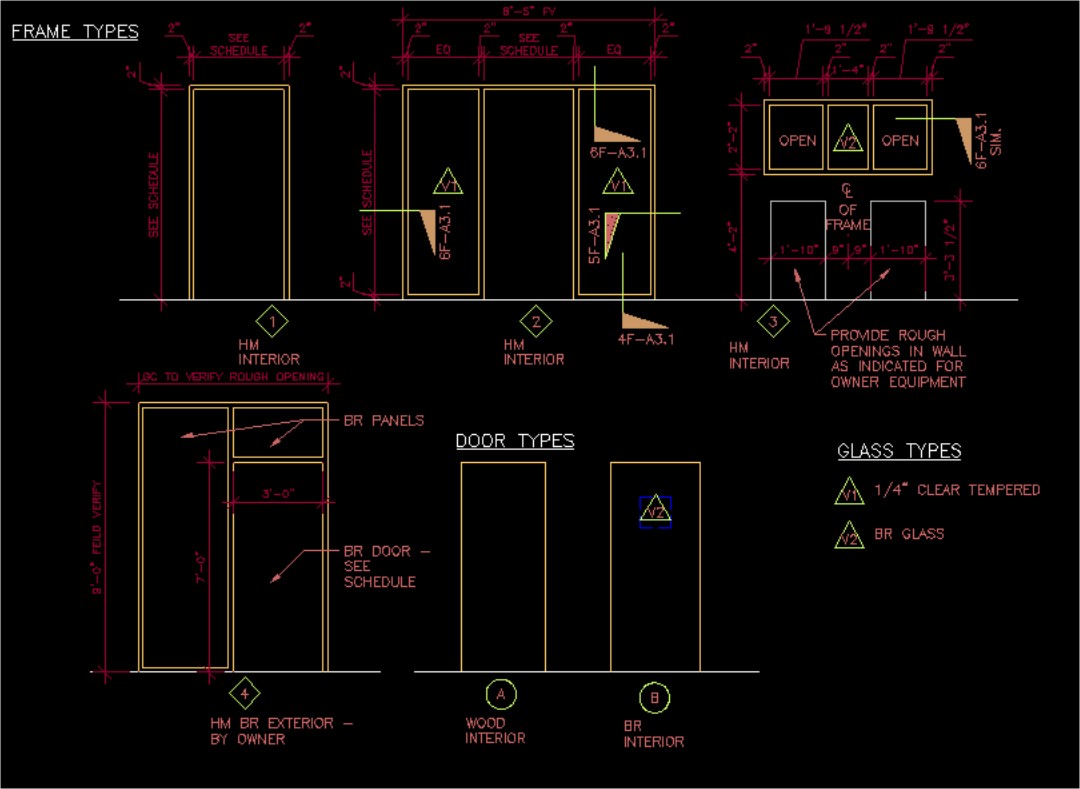

It is standard in our company to produce frame & door type elevation drawings for each type we have in a project. I figured out that you can create a legend with legend components, such as front elevations of specific doors in the project. But my question is how do you dimension to the legend components since it doesn't recongize the snaps. Am I on the right track or totally offbase? Attached is an example of one of our AutoCAD produced Frame/Door type drawings. I am trying to produce something very similar. Thanks

Attached Images

Frame Type Dwg.jpg

This user is offline



Wed, Apr 6, 2005 at 11:07:22 PM | RE: Frame & Door Type Elevation Drawing

#2

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes


It is kind of anti-Revit like, but we just simply use a drafting view to do the door and frame type elevations. Once it is done once in a project, you can group it and save the group out to a network location to be inserted and modified in the next project. Tom

This user is offline

View Website

Wed, Apr 6, 2005 at 11:26:18 PM | RE: Frame & Door Type Elevation Drawing

#3

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 91 Votes


Pre V7 we would create elevations of all the different types of aluminium doors and windows for a our visual schedule. V7 we woud use the legend component and draw detail lines over the components in order to dimension etc because of the no-snapping issue. (i understand this will be fixed in the next release...) We prefer these methods as to using drafting views as they will be updated if the family is reloaded and updated or a type changes size. HTH.

This user is offline

View Website

Thu, Apr 7, 2005 at 1:35:06 PM | RE: Frame & Door Type Elevation Drawing

#4

JOYSMIDNIGHT


active

Joined: Fri, Mar 4, 2005
30 Posts
No Rating


One other small question, we only show different types of frame and doors and not all sizes. We normally edit the text of a dimension to read "See schedule" for the widths and heights. How do I override the text of a dimension? See attached image for example from the orginial post. Thanks

This user is offline



Thu, Apr 7, 2005 at 3:57:46 PM | RE: Frame & Door Type Elevation Drawing

#5

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes


You cannot "override" dimensions in Revit. What we do is place text with an opaque background over the dimension text that reads "see schedule". I've attached our Revit groups for you to insert and take a look at. Tom

Attached Files

This user is offline

View Website

Thu, Apr 7, 2005 at 3:59:49 PM | RE: Frame & Door Type Elevation Drawing

#6

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes


Our frame type group as well attached. Tom

Attached Files

This user is offline

View Website

Thu, Apr 14, 2005 at 4:39:02 PM | RE: Frame & Door Type Elevation Drawing

#7

JOYSMIDNIGHT


active

Joined: Fri, Mar 4, 2005
30 Posts
No Rating

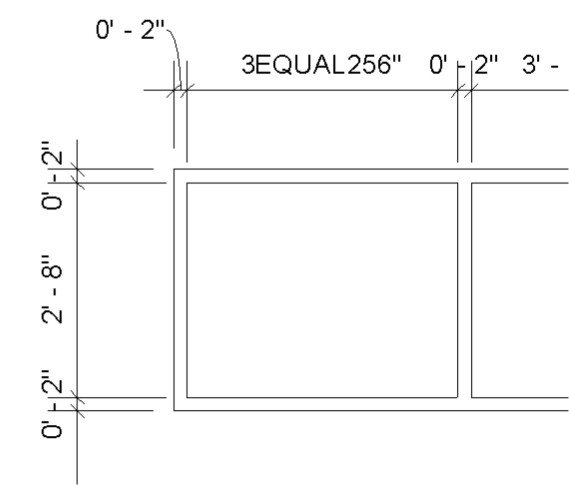

The opaque background text works fine if the text is longer than the dimension behind it. What if the dimension is longer than the text? We tried stretching the text box but it only blocks out behind the text. We also tried appling a opaque filled region but it stays behind the dimension and not if front of. Any other ideas on how to get the dimension "blanked out"? See attached file for example. Thanks again!

Attached Images

Text Over Dims.jpg

This user is offline



Thu, Apr 14, 2005 at 5:19:05 PM | RE: Frame & Door Type Elevation Drawing

#8

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes


A couple of ideas: 1. Try adding "spaces" in front of and after the text "see schedule" set to centered paragraph style. 2. Place white filled region over the dimension with the text on top of region. 3. Create annotation family of a filled region and "see schedule" text. HTH Tom

This user is offline

View Website

Fri, May 30, 2008 at 1:24:02 PM | Frame & Door Type Elevation Drawing

#9

grmorris


active

Joined: Sun, Apr 2, 2006
20 Posts
No Rating


I had the same issue and thought the best wat to handle it is to make a new dimension style with a MUCH smaller text size.  I just kept the same dimension style name and added DO (Dim Overide) to the end to help distinguish it.  Makes it easier to swith back and forth without having to search through all the dim styles if you have several.

This user is offline



Sun, Jun 1, 2008 at 3:49:00 AM | Frame & Door Type Elevation Drawing

#10

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes


This thread referred to techniques prior to the arrival of RAC2009.  Revit 2009 will allow you to over-ride a dimension with text, but not another 'dimension'.  However you can fool that feature by using a hyphen in the dimension text but not the one you type on your keyboard.  Instead run the Windows charmap utility and choose one similar to the one on your keyboard and paste that one in your dimension over-ride.




-----------------------------------

Tom

www.reviteer.com   http://twitter.com/Reviteer



This user is offline

View Website
