Forums >> Revit Structure >> Technical Support >> Cavity Wall - Cavity Not Filled

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jun 13, 2008 at 3:33:40 PM | Cavity Wall - Cavity Not Filled

#1

MartinGT


active

Joined: Mon, Feb 18, 2008
38 Posts
1 Stars: 1 Votes


Hi Guys

Is there way of making a cavity wall so that the cavity isnt filled with anything?  I have a cavity wall and in it partially sits a colimn web and flange.  Now when I do a section it shows the flange as hidden, even if I sat the cavity as an air barrier?

Anyone got anyideas?


This user is offline



Fri, Jun 13, 2008 at 3:55:55 PM | Cavity Wall - Cavity Not Filled

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 197 Votes


Hi MARTIN, can you put some short images to figure out what do you really want? What Version of Revit are you work?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Jun 13, 2008 at 4:00:59 PM | Cavity Wall - Cavity Not Filled

#3

MartinGT


active

Joined: Mon, Feb 18, 2008
38 Posts
1 Stars: 1 Votes

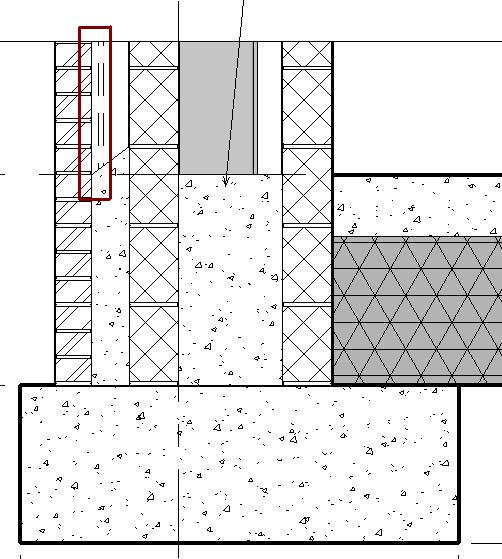

Attached now , the riinged item is my flange of my column, it should be solid and also grey!

Using RS 09 Smile

Thanks for the help



Attached Images


This user is offline



Fri, Jun 13, 2008 at 4:13:11 PM | Cavity Wall - Cavity Not Filled

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 197 Votes


Hi again, do you sure that zone is a "Air Barrier" and you don't put some hatch or material when you create that wall?

Is there a Section View only or a Callout View? you can solve that by going to Drafting and create a Masking Region with "invisible Lines" under that Hidden Lines...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Jun 16, 2008 at 7:37:31 AM | Cavity Wall - Cavity Not Filled

#5

MartinGT


active

Joined: Mon, Feb 18, 2008
38 Posts
1 Stars: 1 Votes

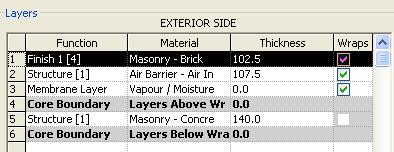

The Construction of the wall is attached.  The Air Barrier has no fill pattern for the cut.

I have just used the stylus too for now and changed the lines to thin.  The detail is in section by the way.




This user is offline



Mon, Jun 16, 2008 at 7:38:06 AM | Cavity Wall - Cavity Not Filled

#6

MartinGT


active

Joined: Mon, Feb 18, 2008
38 Posts
1 Stars: 1 Votes


This time attached Smile

Attached Images


This user is offline



Mon, Jun 16, 2008 at 10:42:38 AM | Cavity Wall - Cavity Not Filled

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 197 Votes


Hi MARTIN, when i use Air Barrier in "Function" i put "Thermal Air Layer" and not "Structure [1]" but this not change the problem, you must have some material or pattern in "Cut" in the material "Air Barrier", do you have "None" in Cut Pattern"? check this...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
