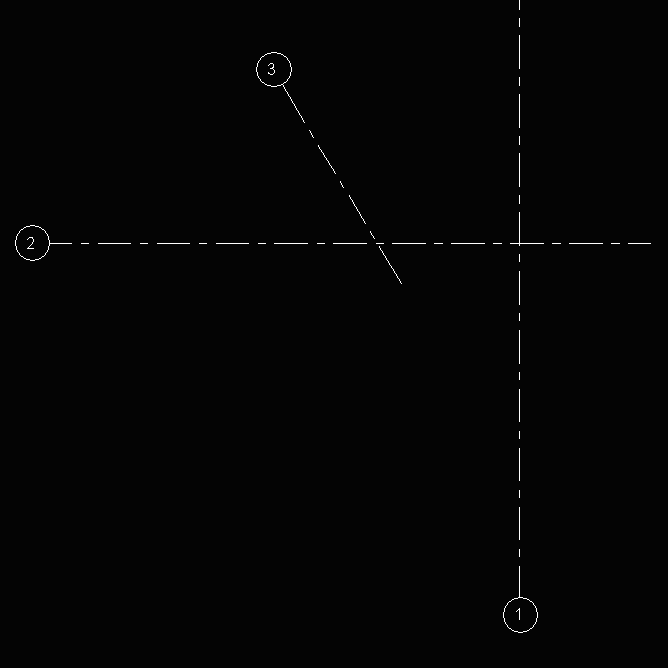

I have read the other threads on this subject but dont think they answer the problem i have. I want to dimension an intersection point back to a horizontal gridline, I have attached a copy of the Grid Lines concerned, i want to dimension the point where grid line 3 intersects grid line 2 then give a horizontal dimension back to grid line 1, i have tried drawing a detail line but when i turn this off or delete it i lose the dimension, anyone any ideas on how i can get round this problem?
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
Hi Allan, you said "I have attached a copy of the Grid Lines concerned", where is it? the dimensions are attached to the Elements, if you delete this elements the dimensions disapears....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Mon, Jun 2, 2008
56 Posts
No Rating |
Sorry try again!
|
This user is offline |
|
|
|
active
Joined: Mon, Jun 2, 2008
56 Posts
No Rating |
well that didnt work...... ill attach it as a paint clip so you can see what i mean!
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Hi, you can do this: create 2 Reference planes, one in the intersection of the lines 2-3 and the other at the grid one, dimension, then erase the ref plane in the grid one, then the other ref plane turn them to small just like you can't see them....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Tue, Oct 9, 2007
285 Posts
|

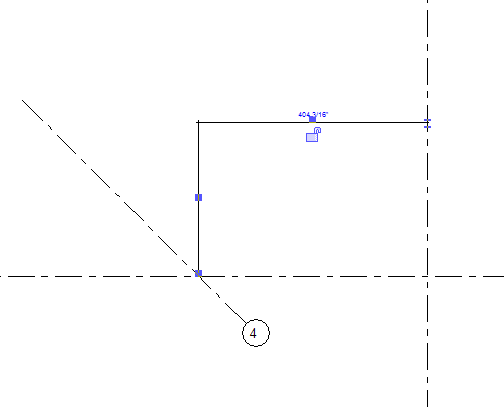

" Hi, you can do this: create 2 Reference planes, one in the intersection of the lines 2-3 and the other at the grid one, dimension, then erase the ref plane in the grid one, then the other ref plane turn them to small just like you can't see them.... " All you have to do is dimension from the vertical first and then pick the point where the other two intersect, see attached. " Hi, you can do this: create 2 Reference planes, one in the intersection of the lines 2-3 and the other at the grid one, dimension, then erase the ref plane in the grid one, then the other ref plane turn them to small just like you can't see them.... " Is there a reason behind doing this? It seems like more work than its worth. Nick
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Yeah NKRAMER, in revit 2009 it's simple, but if you use 2008?
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Tue, Oct 9, 2007
285 Posts
|
" Yeah NKRAMER, in revit 2009 it's simple, but if you use 2008? " Interesting. Havent had to use that until recently so it hadnt affected me. Must have been one of the behindthe sceens improvements when they allowd you to split grid lines. Nick
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Mon, Jan 12, 2004
2889 Posts
 |
Just a reminder in Revit the dimension is linked to the element (unlike a lot of other documentation software), so if one of the elements is removed you lose the witness line also as it loses its reference. If you are in fact using 2008, (I suggest upgrading if you can), then dimension to reference planes and simply set in your print settings to not print reference planes... This will not stop them exporting in DWG's however...
-----------------------------------
Regards,
Chris.
Co-Founder | BIM Consultant | Software Designer  B. Arch)
Xrev Revit API Addins | Revit Rants |
