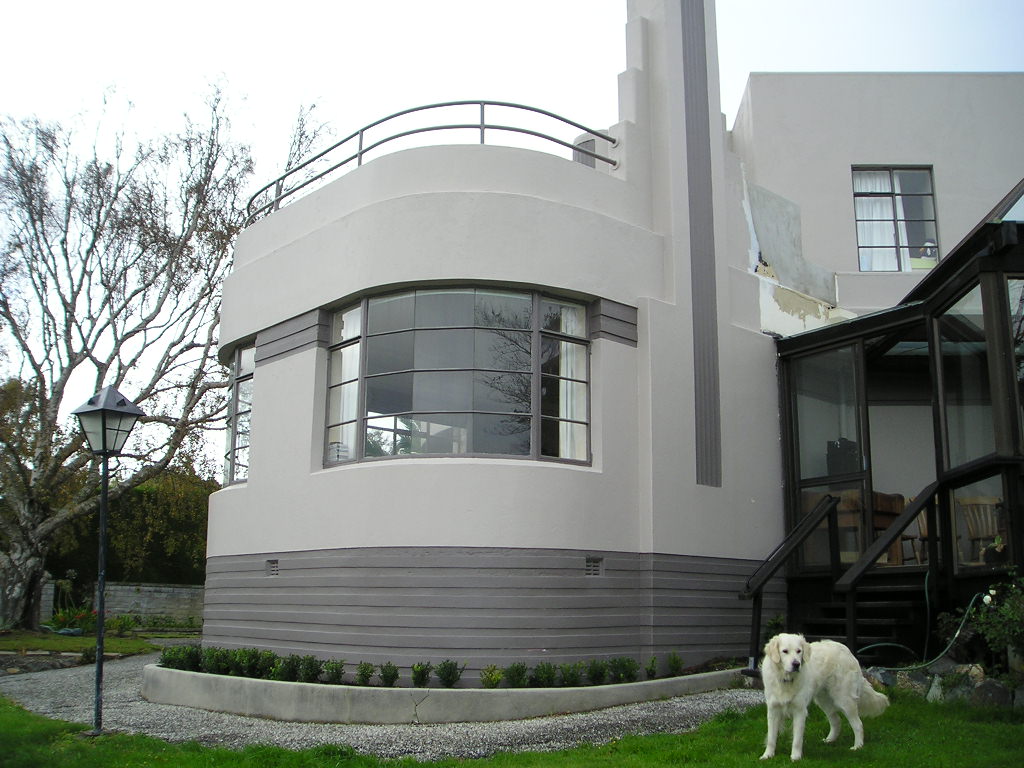

Hi there, I am currently trying to make a curved window which will fit to a curved wall, it is doing my head in at the moment and I was hoping someone out there has done one of these before. I have atached a photo showing the window in question Cheers Sam
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |

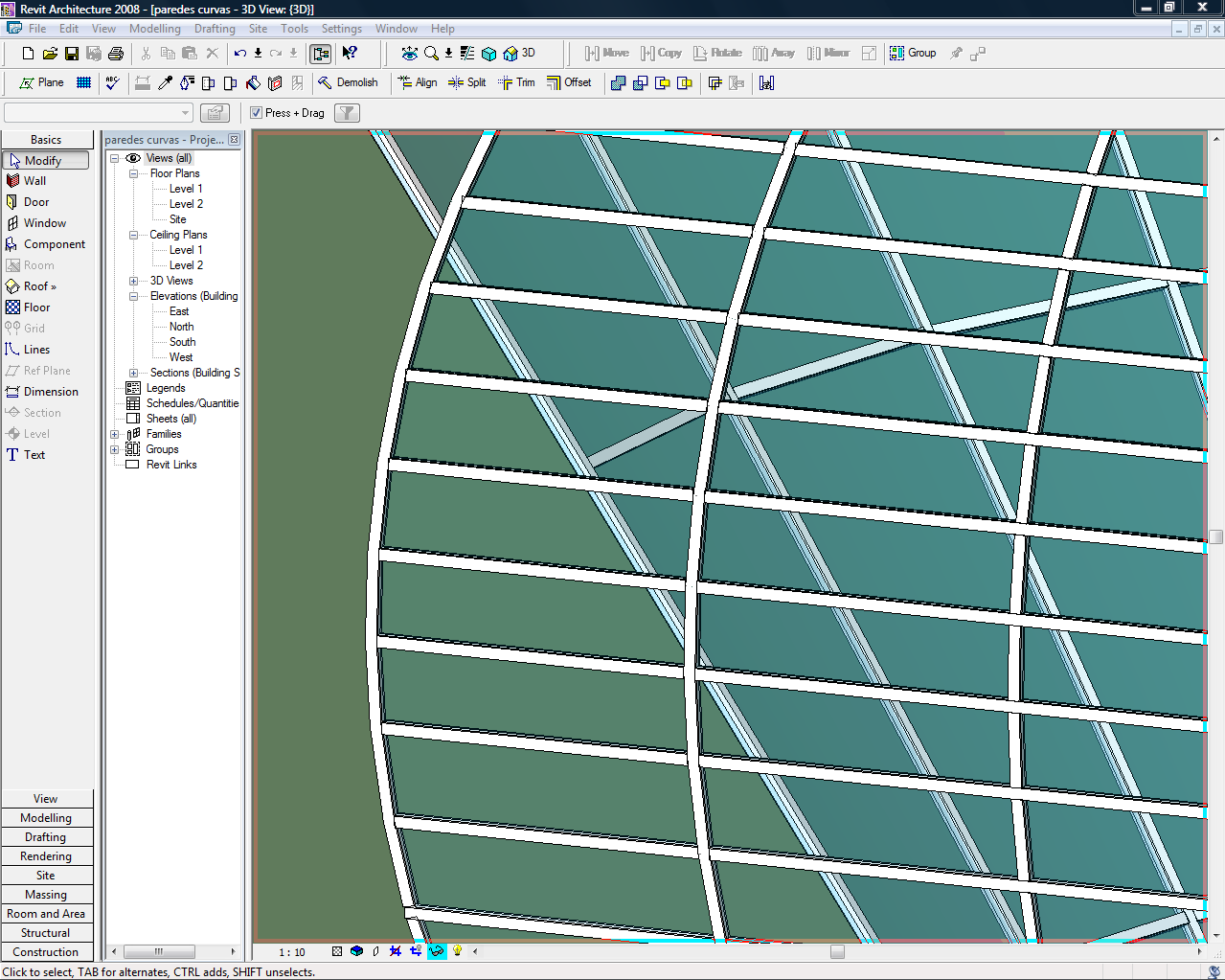

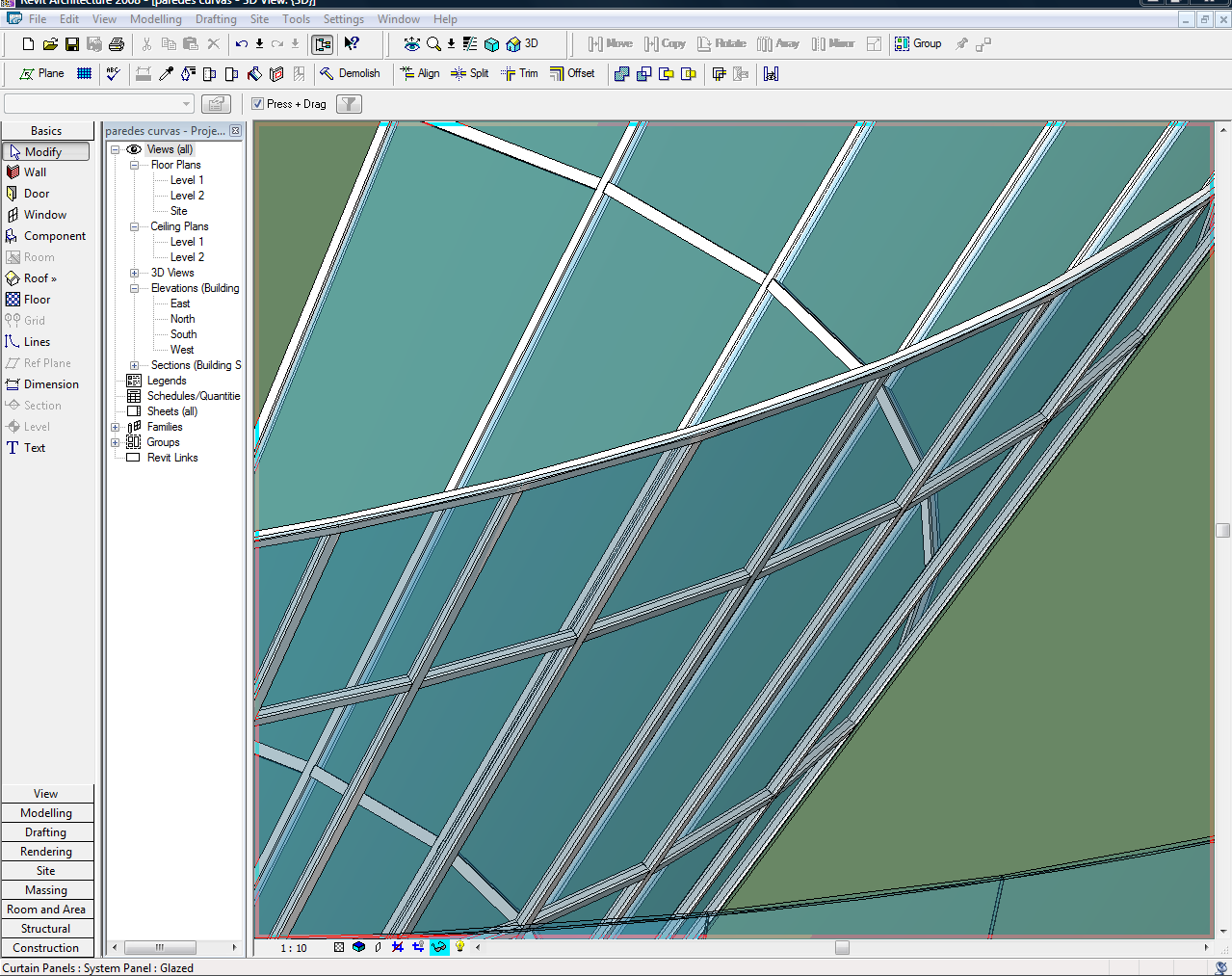

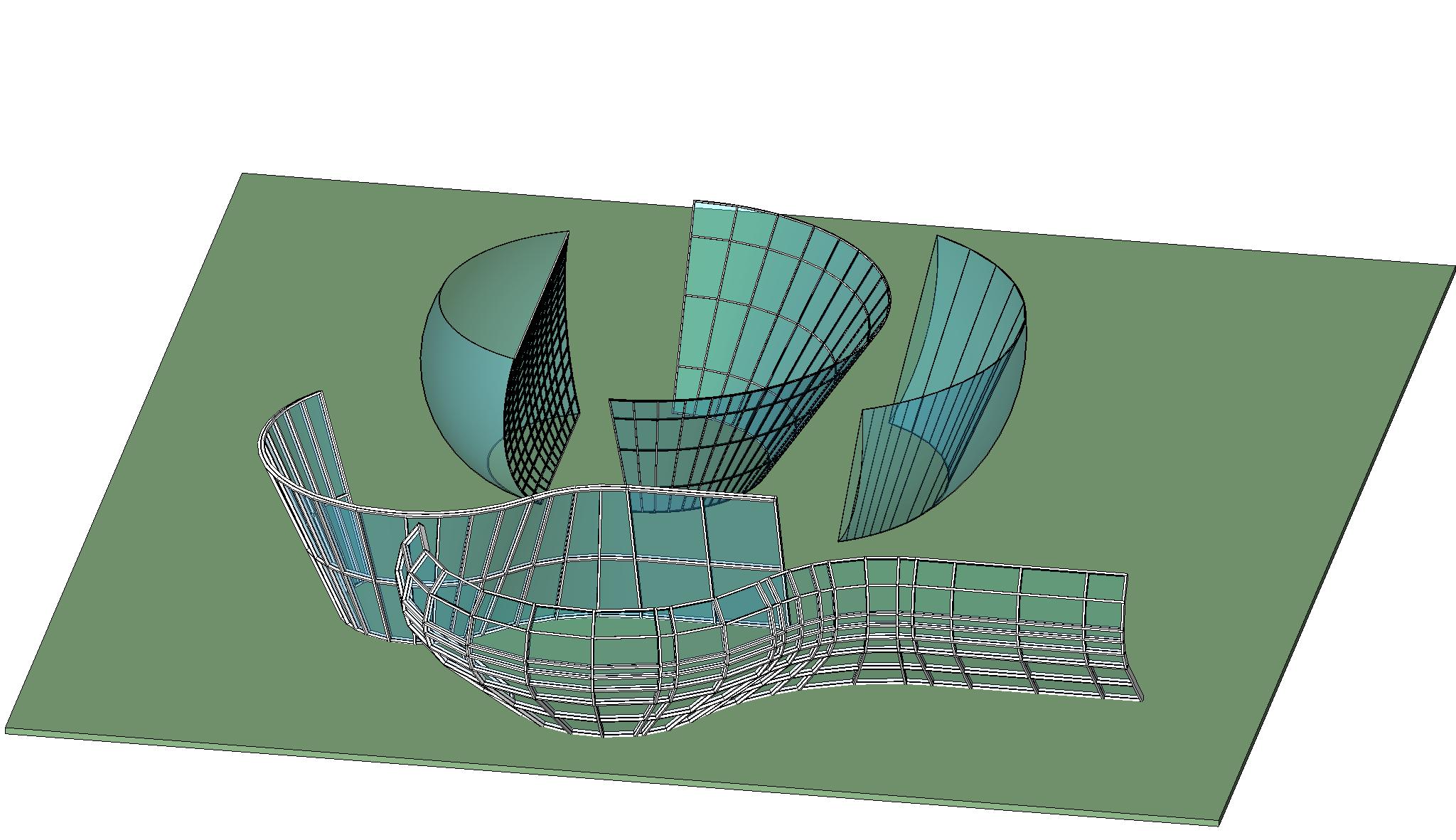

Hi SAM, until now i don't see any round window made by anyone in anywere but you can do this with "Curtain Wall", it's very simple to do this (image attached)... and more quick...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Wed, May 9, 2007
141 Posts
|
My recommendation would be to start your window family from a generic family template (In this case, I don't recommend using a wall based, as you would have to cut the wall, and the wall is forced straight). Go to settings->family categories and parameters, and change your family category to a window. Now create your curved window as you want it, then load it into your project. Use a wall opening to cut the wall, if this doesn't work, then create a bottom and top wall around the window. Don't use curtain walls for this, as the Mullions will be jagged...unless someone knows a fix to that?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Yeah, TABEST it's right, that's a solution too, i don't understand what means "the Mullions will be jagged"....???
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Wed, May 9, 2007
141 Posts
|

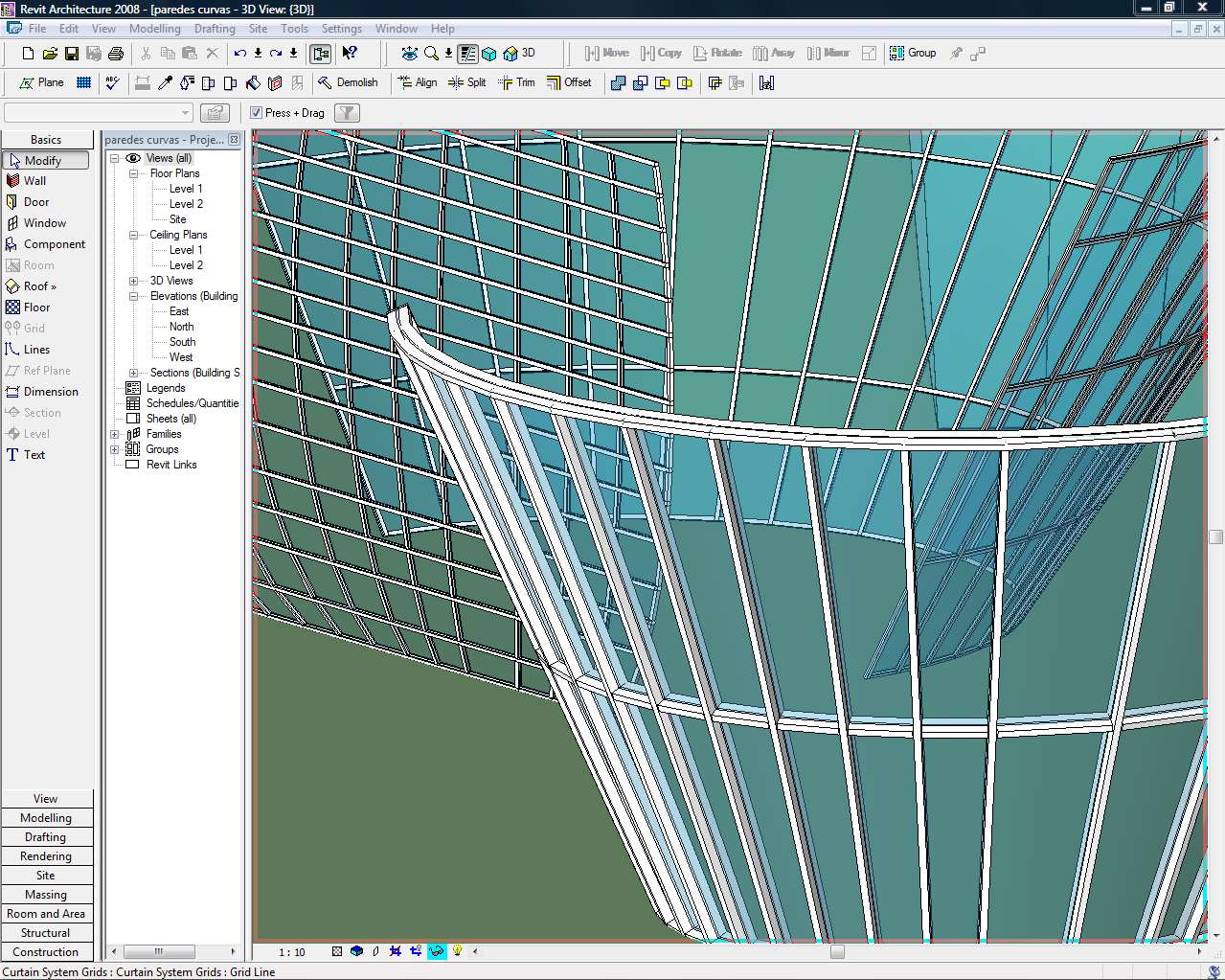

We had a curved window and each mullion join had it's edge sticking out... like trying to make a smooth circle out of bricks. I couldn't tell by your pictures, but do the mullions themselves curve? Or are they straight?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
the mullions are straight... just like the glass... if you look the Photo from "Sammyr" there are straight too...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Thu, Dec 27, 2007
9 Posts
No Rating |
I think by "jagged" he means the jaggies that appear on the mullions in design view. That will fix itself when you render.
|
