Forums >> Revit Building >> Technical Support >> Split doesnt look right

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, May 14, 2008 at 4:15:18 AM | Split doesnt look right

#1

torstenk


active

Joined: Tue, Oct 2, 2007
28 Posts
No Rating


Hi all

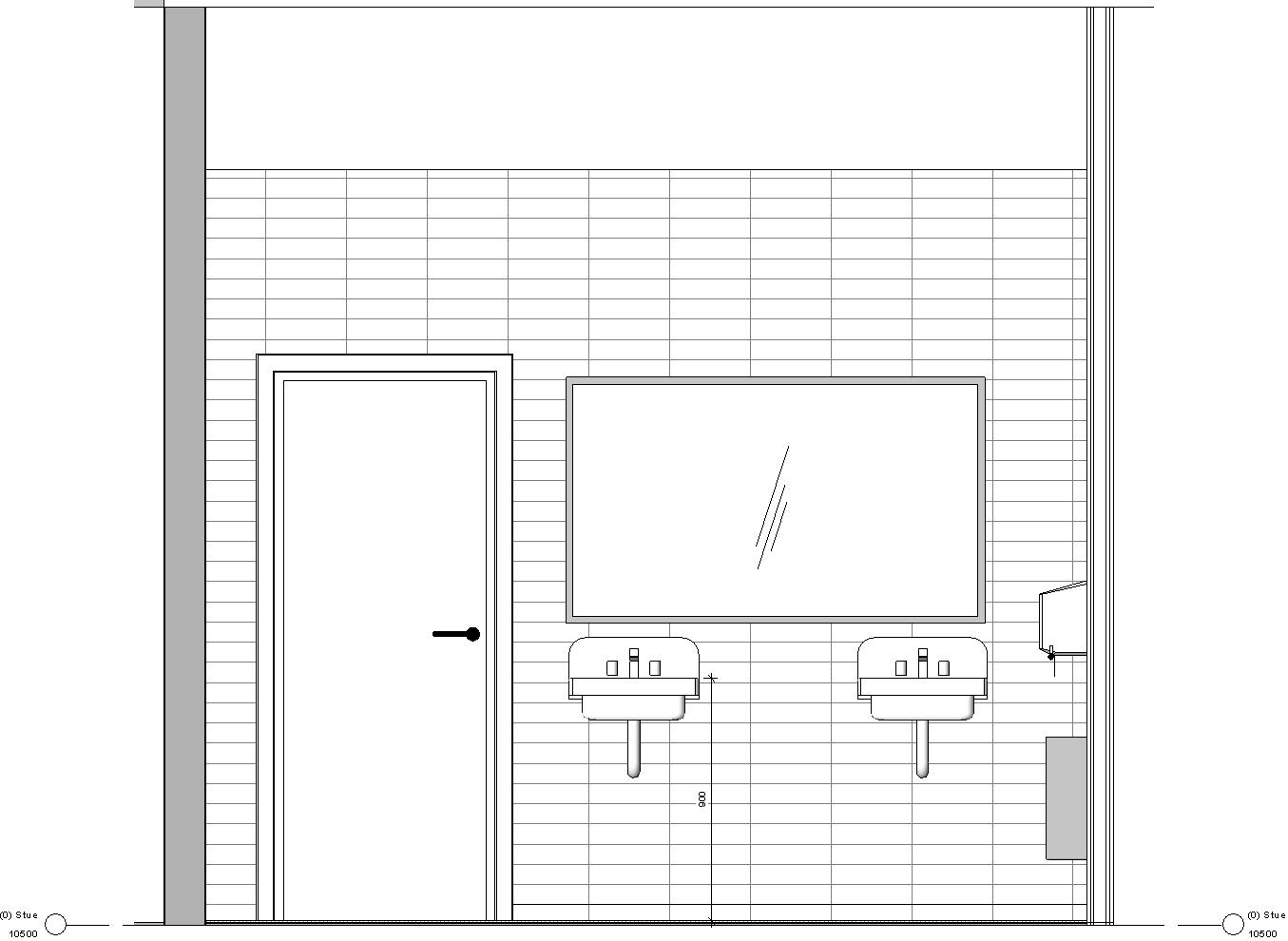

Im making a interior elevation plan. Then i have used paint to show that i have tiles. But it doesnt make the right endings. See attached pic. How do i change this?

Using Revit 2008



Attached Images


This user is offline



Wed, May 14, 2008 at 4:49:06 AM | Split doesnt look right

#2

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


u can use the align tool to move face materials

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Wed, May 14, 2008 at 4:52:09 AM | Split doesnt look right

#3

torstenk


active

Joined: Tue, Oct 2, 2007
28 Posts
No Rating


Wont i move the wall then?

This user is offline



Wed, May 14, 2008 at 4:54:17 AM | Split doesnt look right

#4

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


nope,

select align select the edg of the wall that is in section and select a vertical lign of your tiles,


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Wed, May 14, 2008 at 5:01:15 AM | Split doesnt look right

#5

torstenk


active

Joined: Tue, Oct 2, 2007
28 Posts
No Rating


youre right thx!!

What does this mean?

 The closed loop used to split the face must lie completely within the face and cannot intersect or overlap any of the face's edges.  To split a face at its border, use an open loop that ends on the boundary of the face.


This user is offline



Wed, May 14, 2008 at 5:13:34 AM | Split doesnt look right

#6

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


Dont have a clue Smile


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Wed, May 14, 2008 at 8:19:04 AM | Split doesnt look right

#7

JAMESHGRIMES


site moderator|||
JAMESHGRIMES Avatar

Joined: Fri, Apr 14, 2006
584 Posts
4.5 Stars: 10 Votes


You get this message when you use the split face tool. It is telling you that you have drawn a closed area and its boundary is either touching or overhanging the wall edge. You will need to do one of two things; either draw the boundary entirely inside the wall extents without touching the edge or remove some lines to make the endpoints of sketch lines touch the extent edges of the wall.
