Forums >> Revit Building >> Technical Support >> Raised floor

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, May 9, 2008 at 7:41:01 AM | Raised floor

#1

mommy


active

Joined: Thu, May 8, 2008
12 Posts
No Rating


Hi,

I am working on a project and have to make a raised floor with a clearance of 200mm below the floor for the lighting. Please help fast i don't know how to make raised floors.






This user is offline



Fri, May 9, 2008 at 8:06:09 AM | Raised floor

#2

JAMESHGRIMES


site moderator|||
JAMESHGRIMES Avatar

Joined: Fri, Apr 14, 2006
584 Posts
4.5 Stars: 10 Votes


Use the floor tool and define the boundary of the raised portion of the floor. Then set the Offset from Level to the Height. I usually draw wall type objects to represent the upright supports around the edge of the raised floor. I then use Join Geometry to make sure there is no unwanted lines showing around the edge. I know this is kind of vague, but it is the general Idea.


This user is offline



Fri, May 9, 2008 at 8:42:10 AM | Raised floor

#3

mommy


active

Joined: Thu, May 8, 2008
12 Posts
No Rating


Thanks!

I add the floor(165mm) by seting the offset of 200mm as i want a clearance of 200mm below the floor for electrical lighting. Now, to define the clearance area of 200mm what should i do?


This user is offline



Fri, May 9, 2008 at 8:58:37 AM | Raised floor

#4

JAMESHGRIMES


site moderator|||
JAMESHGRIMES Avatar

Joined: Fri, Apr 14, 2006
584 Posts
4.5 Stars: 10 Votes


I'm not really sure what you mean by "Clearance Below the floor." Could you maybe post a screenshot of what you are trying to do or maybe explain in depth.


This user is offline



Fri, May 9, 2008 at 9:09:56 AM | Raised floor

#5

mommy


active

Joined: Thu, May 8, 2008
12 Posts
No Rating

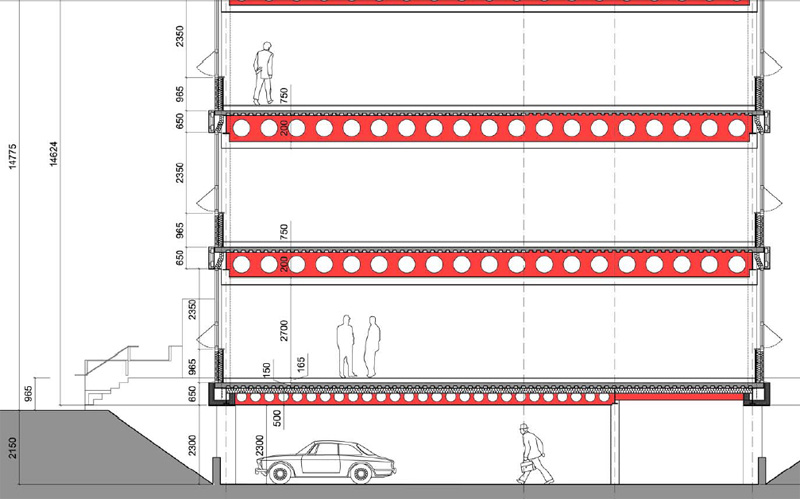

here is the screenshot attached. The dimesion written as 165 is the raised floor and i am not able to figure how does i will show the rest of the area below the floor.

I hope the screenshot works.



Attached Images


This user is offline



Wed, Jun 24, 2015 at 3:57:07 AM | Raised floor

#6

vivian117


active

Joined: Tue, Jun 23, 2015
0 Posts
No Rating


Dear,

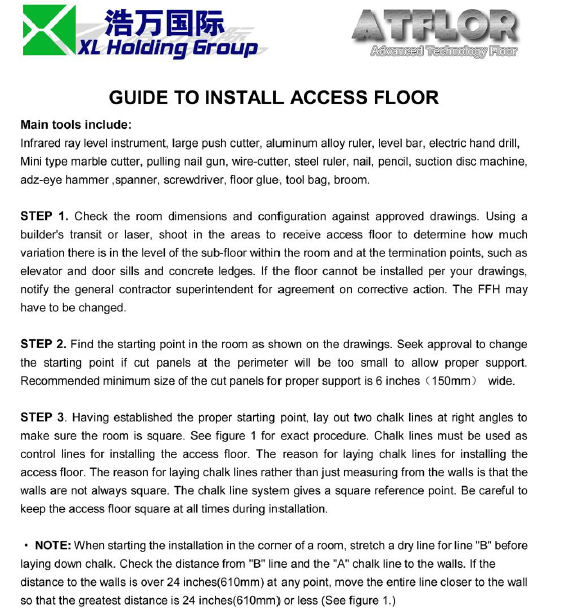

this is really a bit difficult, and i shared a pic of instruction for you to install the raised floor.

hope it may be helpful to you.

Best Regards,

Vivian





Edited on: Wed, Jun 24, 2015 at 7:17:56 AM

Attached Images


This user is offline
