Forums >> Revit Building >> Technical Support >> disappearing elevation "arrow"

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, May 1, 2008 at 2:46:47 PM | disappearing elevation "arrow"

#1

cholden


active
cholden Avatar

Joined: Thu, Jul 5, 2007
37 Posts
No Rating


I have problems with interior elevation arrows disappearing. I have checked Vis Graph and checked to make sure it is not being covered by another tag. The 1/2" circle with the sheet number inside is there and the elevation exists (as it has for the last 2 months). The box is also showing as checked when I click on the circle but the solid filled arrow and view number for the sheet are missing. I really would like to figure out how to fix this as we have already dimensioned and noted all the elevations, including the 3 with which I am having problems.

I have my interior elevations setup with the 1/2" circle, solid arrows, sheet number in the middle, and view number centered at the point of my arrow.

 Revit Building 2008.

 Thanks!


This user is offline

View Website

Thu, May 1, 2008 at 3:23:00 PM | disappearing elevation "arrow"

#2

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


Hi,



Can you send a screenshot? I need to see your problem graphically.

Thanks,

Mhans


-----------------------------------

Motto: "No Post left behind"

This user is offline



Thu, May 1, 2008 at 3:24:49 PM | disappearing elevation "arrow"

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Click on the lightbulb (reveal hidden elements) and see if you somehow hid it in that view.

This user is offline



Thu, May 1, 2008 at 3:32:44 PM | disappearing elevation "arrow"

#4

cholden


active
cholden Avatar

Joined: Thu, Jul 5, 2007
37 Posts
No Rating


I've clicked the light bulb and it's not there. extremely frustrating!

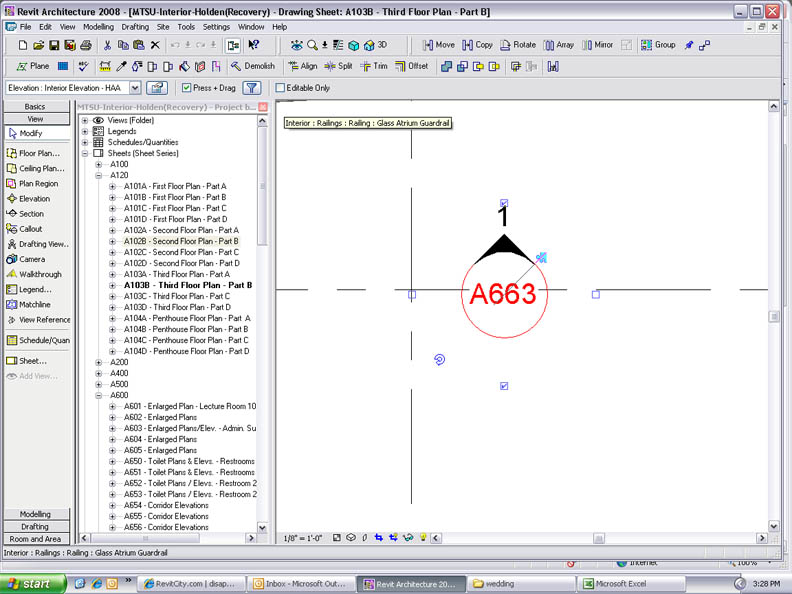

I've attached an image of what I'm seeing.



Attached Images


This user is offline

View Website

Thu, May 1, 2008 at 4:05:50 PM | disappearing elevation "arrow"

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Are you sure your annotation crop has not been pulled over this elevation?  That will make it disappear.

This user is offline



Thu, May 1, 2008 at 4:28:14 PM | disappearing elevation "arrow"

#6

cholden


active
cholden Avatar

Joined: Thu, Jul 5, 2007
37 Posts
No Rating

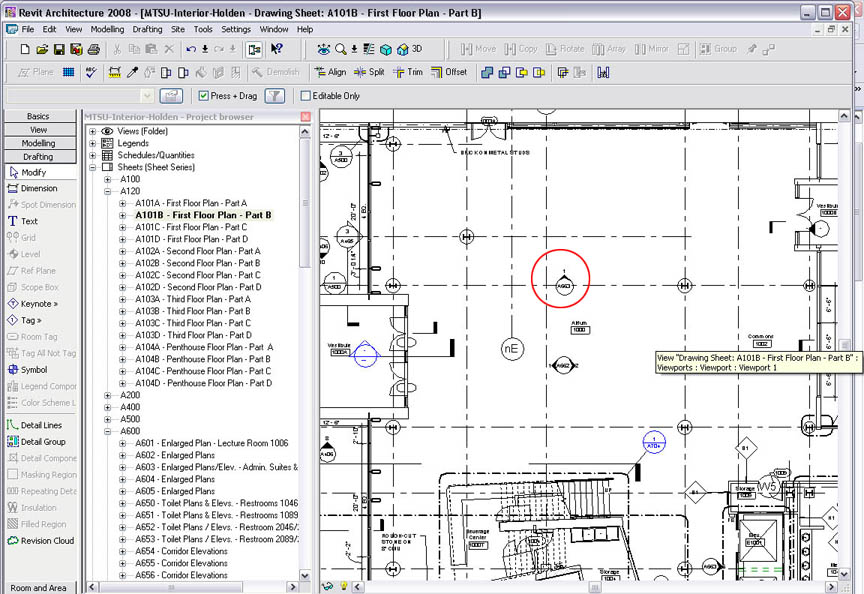

unfortunately i'm positive about that. It's in the middle of the drawing. see image.

Attached Images


This user is offline

View Website

Thu, May 1, 2008 at 6:30:35 PM | disappearing elevation "arrow"

#7

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


Hi,

Try this experiment: Highlight one of your int. elevation tag and drag the annotation crop outside of your Crop view. You will not lose the view but you will lose the arrow and the elev # on plan. This is the only way I know you could lose your arrows.

I see on the last image you sent that you are using lots of single int. elev tags on your plan. Did you, by any chance, make your own Callout Tag for that purpose? You said you are using the supplied ' 1/2" CIRCLE ST#' are you using with it the supplied "Callout Head w 1/8" Corner Radius" ?



Mhans


-----------------------------------

Motto: "No Post left behind"

This user is offline



Fri, May 2, 2008 at 2:40:55 AM | disappearing elevation "arrow"

#8

twometer


active

Joined: Wed, Jul 11, 2007
15 Posts
3 Stars: 2 Votes


If you can't solve the problem, create a new elevation tag that references the existing elevations.  Look at the option bar fot the reference option.

This user is offline



Fri, May 2, 2008 at 8:31:02 AM | disappearing elevation "arrow"

#9

cholden


active
cholden Avatar

Joined: Thu, Jul 5, 2007
37 Posts
No Rating


Nothing changed when I messed around with the annotation crop. I just decided to create a new tag and reference the view to gain some lost time. I guess this is one of those Revit mysteries.

Thanks everyone!


This user is offline

View Website
