Forums >> Revit Building >> Technical Support >> Roofing Gurus Please Help

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Apr 18, 2008 at 5:39:59 PM | Roofing Gurus Please Help

#1

yakob1966


active

Joined: Wed, Dec 29, 2004
2 Posts
1 Stars: 1 Votes


I am doing a remodel & addition to an elementary school that has a unique saw blade look to it. (It happens to be building that my grandpa designed back in the early 60’s) I am trying to get the main roof slope shown correct, the roof needs to slope approximately 1/8” per foot from the outer roof edge down to the inner roof edge of the courtyard. I need to maintain a consistent outer roof edge height and a consistent inner roof edge height. I’ve tried everything I can think of so anyone who has any ideas, please help.  Attached is the Revit file so you can play around with it. Thanks in advanced.



This user is offline



Fri, Apr 18, 2008 at 6:06:47 PM | Roofing Gurus Please Help

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Build a mass that's right then do roof by face.

This user is offline



Tue, Oct 20, 2009 at 5:50:25 PM | Roofing Gurus Please Help

#3

ColleenHaskell


active

Joined: Sun, Sep 27, 2009
2 Posts
No Rating


In the tutorial it said to do the roof by mass, but that you should chose a roof.  I tried and nothing happened.  My problem started when I ended up with two, one roof right on top of the other. So I deleted it and now I can't seem to get a roof at all.  I am a student at ITT using Revit and the roof has been an issue.  I need to be able to show a roof and I can't even seem to build one good one.




This user is offline



Tue, Oct 20, 2009 at 6:02:47 PM | Roofing Gurus Please Help

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


And what kind of roof are you trying to do? Some images about that will help....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Oct 20, 2009 at 8:16:02 PM | Roofing Gurus Please Help

#5

ColleenHaskell


active

Joined: Sun, Sep 27, 2009
2 Posts
No Rating


It is a basic hip roof with gabled ends.  The center roof is higher than the garage and the bedrooms on the right and left sides.  The front porch has two levels of roofing on the center roof in the front.  This house is from TheHouseDesigners.com, the particular house is the Wilson Creek House considered a traditional cottage design.  After struggling I actually deleted the roof completely.  Then I had no roof section level at all.  I tried duplicating the floor plan with no luck.   I did find something that said to add a second level where the roof should be and create views and levels for each height difference.  I am not sure this will give me what I need.  I also went back and cleaned up my files by deleting extra stuff without realizing what I might be loosing or gaining.  I seem to be at a point where it might be easier to start from scratch again.

This user is offline



Tue, Oct 20, 2009 at 8:27:50 PM | Roofing Gurus Please Help

#6

Wolfmann16


active

Joined: Tue, Sep 25, 2007
38 Posts
No Rating

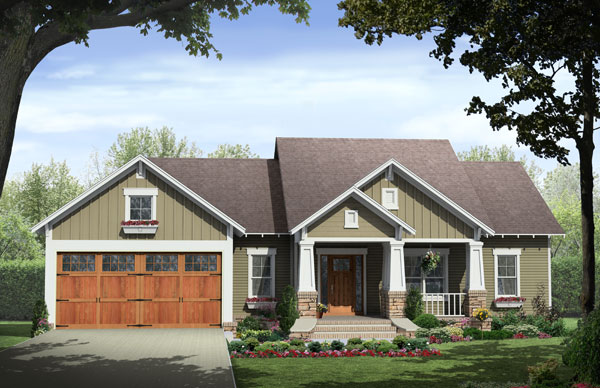

If it is indeed like the one attached, I would build it as a in-place mass - extrusion or sweep, which ever you are more confortable with.  It looks like, to me, you good do the 'L' portion as one sweep then extrude the entry.  I kinda suck at the roof tool, so i usually just mass it, then make it a roof by face.

Attached Images


This user is offline
