Thu, Apr 3, 2008 at 4:21:58 PM | 90 Degree Curved Stair possible??

#1

Shnail


active

Joined: Fri, Nov 30, 2007
43 Posts
No Rating

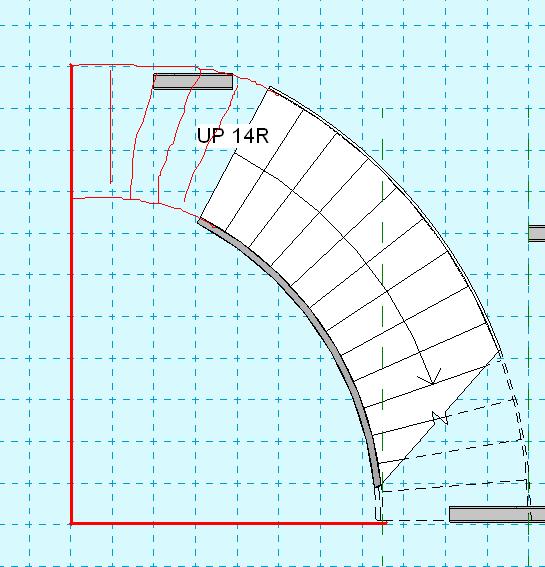

I am wonderin gif it is possible to make a curved stair way curve a full 90 degrees? I am trying to make curved stairs, but Revit makes either the top or the bottom of the stairs 90 degrees, not both.

Anyone have any ideas on how to make a 90 degree curved stair?

Thanks



Attached Images


-----------------------------------

Revit user since 2008.

This user is offline



Thu, Apr 3, 2008 at 5:11:24 PM | 90 Degree Curved Stair possible??

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

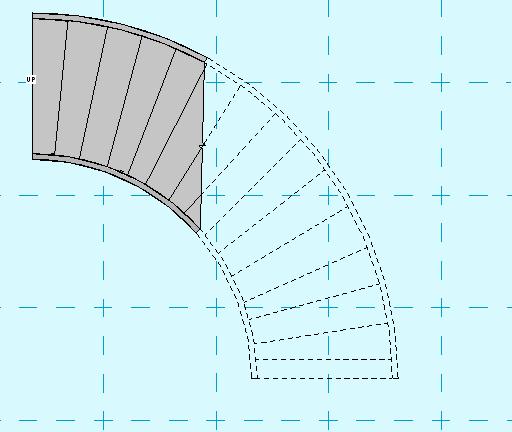

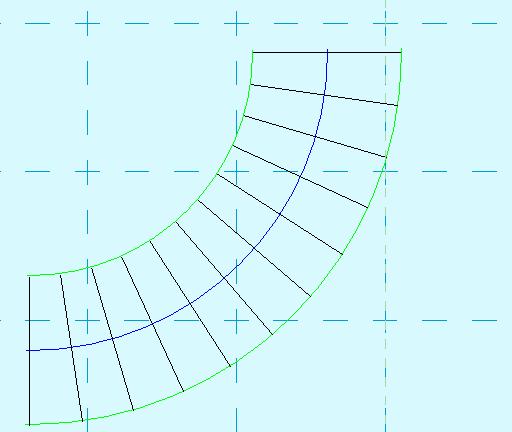

Hi, you have two choises: 1º create boundary and riser just like the 1-image attatch or 2º with Run create a stair with arc then click the blue line change the angle to 90º and in the properties you must adjust the maximum riser height 2- image attatch. This is what you want?

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Apr 3, 2008 at 5:12:03 PM | 90 Degree Curved Stair possible??

#3

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


one option would be to use the boundary option and draw your boundaries first and then add the risers




-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Thu, Apr 3, 2008 at 5:52:20 PM | 90 Degree Curved Stair possible??

#4

Shnail


active

Joined: Fri, Nov 30, 2007
43 Posts
No Rating


thanks for the input.

Typhoon: I am trying to acheive exactly what you came up with in image 2. I will give it a try. thanks


-----------------------------------

Revit user since 2008.

This user is offline



Thu, Apr 3, 2008 at 6:06:15 PM | 90 Degree Curved Stair possible??

#5

maranelloboy


active

Joined: Mon, Oct 8, 2007
57 Posts
3 Stars: 2 Votes

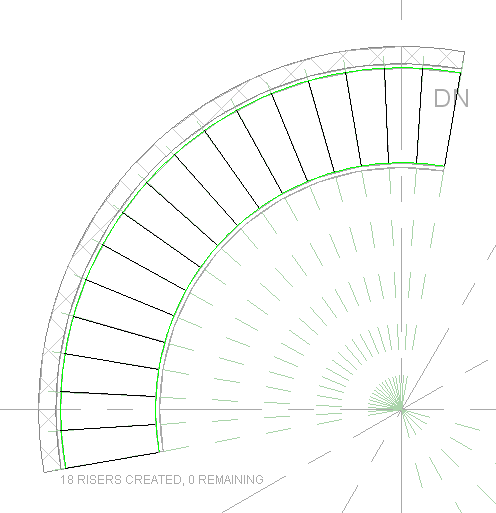

What I do for my curved stairs is use the boundry function.  I started out by doing a radial array of ref. planes to mark the risers.  Use the arc length function in the dimension command to check that your tread depths are code-compliant (the smaller your radius, the bigger the angle between risers you will need).  Draw your side boundries and then draw a riser on each ref. plane.

Attached Images


This user is offline



Thu, Apr 3, 2008 at 11:54:31 PM | 90 Degree Curved Stair possible??

#6

NKramer


active

Joined: Wed, Oct 10, 2007
285 Posts
4 Stars: 9 Votes


SHnail

It looks like your run requirement is not long enough. We had to sit down and play with it for a while to get the stair to come out at a perfect 90. In the end it is easier to do what Maranelloby sugests by creating a series of ref planes for the risers and using a boundry.



Nick


This user is offline
