Forums >> Revit Building >> Technical Support >> Creating a wall type with vertical sweeps/reveals/??

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Apr 2, 2008 at 7:18:23 PM | Creating a wall type with vertical sweeps/reveals/??

#1

gheidt


active

Joined: Tue, Feb 12, 2008
8 Posts
No Rating


Is there a way to create a wall type with vertical sweeps or reveals in the wall edit assembly?

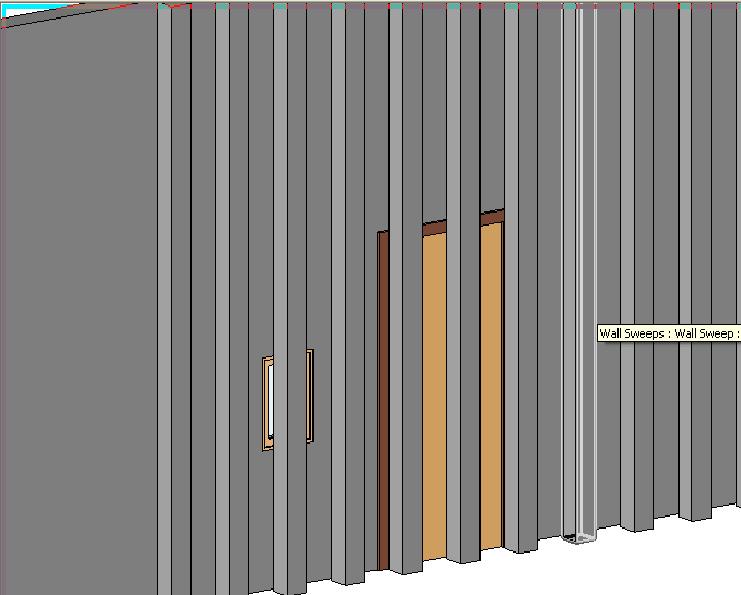

I want to create a wall that has the sweep I created to form the metal siding.  To do doors and windows, I had to create an opening and a wall behind the metal siding to make everything look allright.







Attached Images


This user is offline



Tue, Apr 8, 2008 at 8:00:14 AM | Creating a wall type with vertical sweeps/reveals/??

#2

chiragpklg


active

Joined: Tue, Mar 25, 2008
90 Posts
4 Stars: 11 Votes

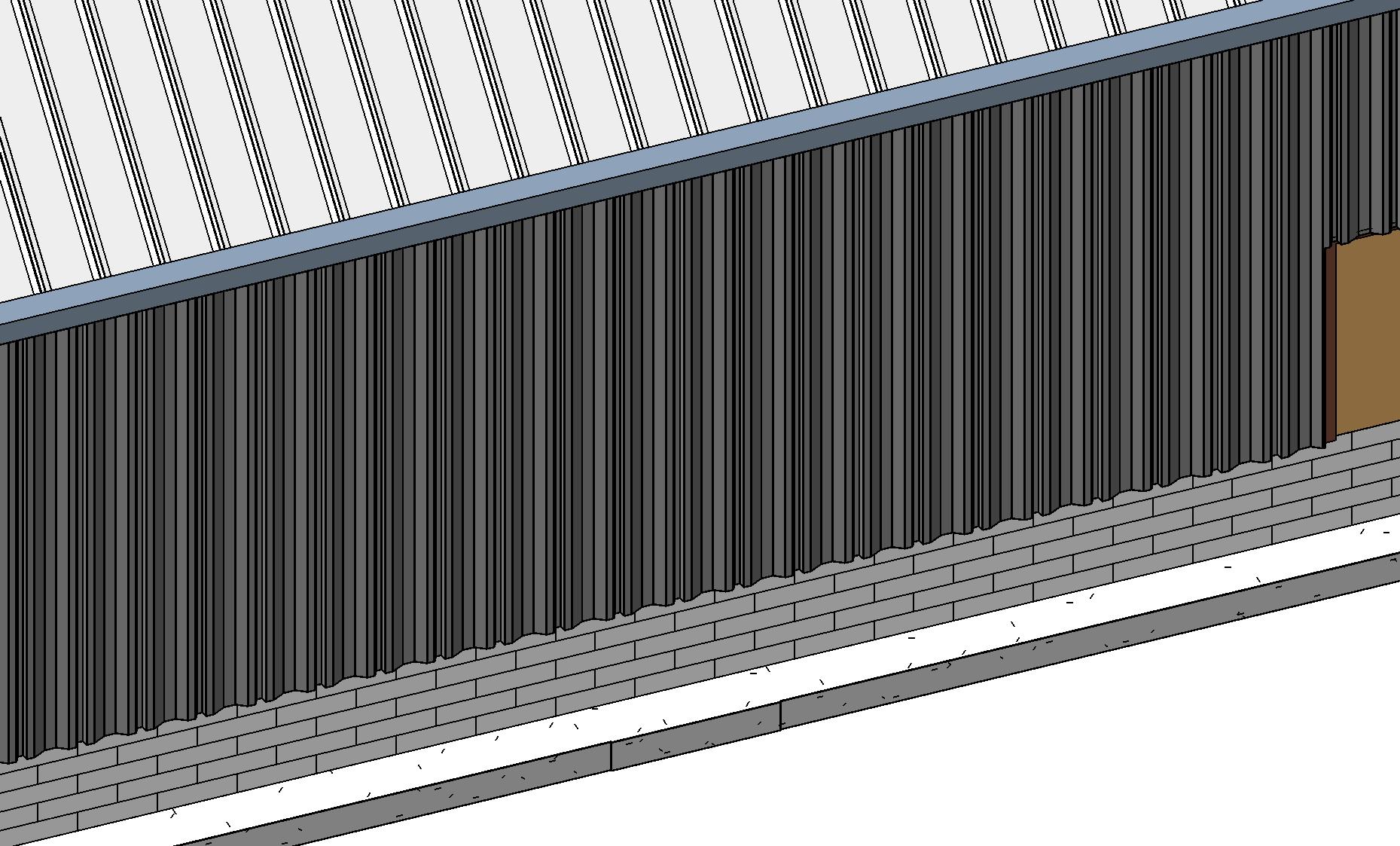

well i have attached an image just have a look & do reply me if u r looking 4 such solution than i shall give u the correct method to od the same.

Regards,

Chirag C. Pawar

Cad Solution Application Engineer,

+91-9969866851

For KLGSystel Limited,

301, Pujit Plaza, Plot No. 67,

Sector 11, CBD Belapur,

Navi Mumbai - 4000614,

Maharashtra, India.

Tel.: +91 22 40916777.

Fax.: +91 22 27576461.

Mob.: +91 9969866851.

Email.: chiragp@klgsystel.com

Web.: www.klgsystel.com






-----------------------------------

Chirag C. Pawar

Cad Solution Application Senior Engineer

KLGSystel Ltd. India

301, Pujit Plaza, Plot No. 67,Sector 11, CBD Belapur,Navi Mumbai - 400614, Maharashtra, India.Tel    .:    +91 22 409 16777. Extn. - 718Fax   .:    +91 22 275 76461.Mob  .:   +91 99 698 66851.Email.:    chiragp@klgsystel.com

Web  .:    www.klgsystel.com

This user is offline



Tue, Apr 8, 2008 at 8:01:00 AM | Creating a wall type with vertical sweeps/reveals/??

#3

chiragpklg


active

Joined: Tue, Mar 25, 2008
90 Posts
4 Stars: 11 Votes


oops i forgot to attach the image. here it is

Attached Images


-----------------------------------

Chirag C. Pawar

Cad Solution Application Senior Engineer

KLGSystel Ltd. India

301, Pujit Plaza, Plot No. 67,Sector 11, CBD Belapur,Navi Mumbai - 400614, Maharashtra, India.Tel    .:    +91 22 409 16777. Extn. - 718Fax   .:    +91 22 275 76461.Mob  .:   +91 99 698 66851.Email.:    chiragp@klgsystel.com

Web  .:    www.klgsystel.com

This user is offline



Tue, Apr 8, 2008 at 3:25:16 PM | Creating a wall type with vertical sweeps/reveals/??

#4

TABEST


active

Joined: Wed, May 9, 2007
141 Posts
4 Stars: 4 Votes


horizontal yes, vertical, unfortunately no.  but if you design your sweep to go horizontally, and it is just very "wide", you can take up the whole wall with a pattern much like what you had shown.

This user is offline
