Forums >> Revit Building >> Tips & Tricks >> how do you Mass a Helix - Kinda Like a DNA Strand

Search this ThreadSearch this Thread | Page 1 of 2 | 1 | 2 Next >>

Wed, Mar 26, 2008 at 6:20:12 PM | how do you Mass a Helix - Kinda Like a DNA Strand

#1

rowlandscha


active

Joined: Wed, Jan 23, 2008
9 Posts
No Rating


Anybody know how?

This user is offline



Thu, Mar 27, 2008 at 5:55:06 AM | how do you Mass a Helix - Kinda Like a DNA Strand

#2

apage


active

Joined: Wed, Oct 18, 2006
1 Posts
No Rating


You will need to use the swept blend tool that is only available in Revit 2009. This release comes out in the second week of april this year.

Check out the helix made with Revit 2009:  http://autodesk-revit.blogspot.com/


This user is offline



Thu, Mar 27, 2008 at 10:05:07 AM | how do you Mass a Helix - Kinda Like a DNA Strand

#3

rowlandscha


active

Joined: Wed, Jan 23, 2008
9 Posts
No Rating


Thanks, I appreciate any help. Can't waite for 2009 to be realesed. Looks like they finally listened to the masses. I'm most excited about the adoption of Max's rendering engine.

This user is offline



Thu, Mar 27, 2008 at 10:12:46 AM | how do you Mass a Helix - Kinda Like a DNA Strand

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Look at information about 2009 ... http://autodesk-revit.blogspot.com/

This user is offline



Thu, Mar 27, 2008 at 11:09:48 AM | how do you Mass a Helix - Kinda Like a DNA Strand

#5

rowlandscha


active

Joined: Wed, Jan 23, 2008
9 Posts
No Rating


I ended up modeling it in AutoCAD & then imported it as a family into revit, just sucks though because the materials get all mest up & it doesnt render as nicely.

This user is offline



Thu, Mar 27, 2008 at 11:37:21 AM | how do you Mass a Helix - Kinda Like a DNA Strand

#6

rowlandscha


active

Joined: Wed, Jan 23, 2008
9 Posts
No Rating

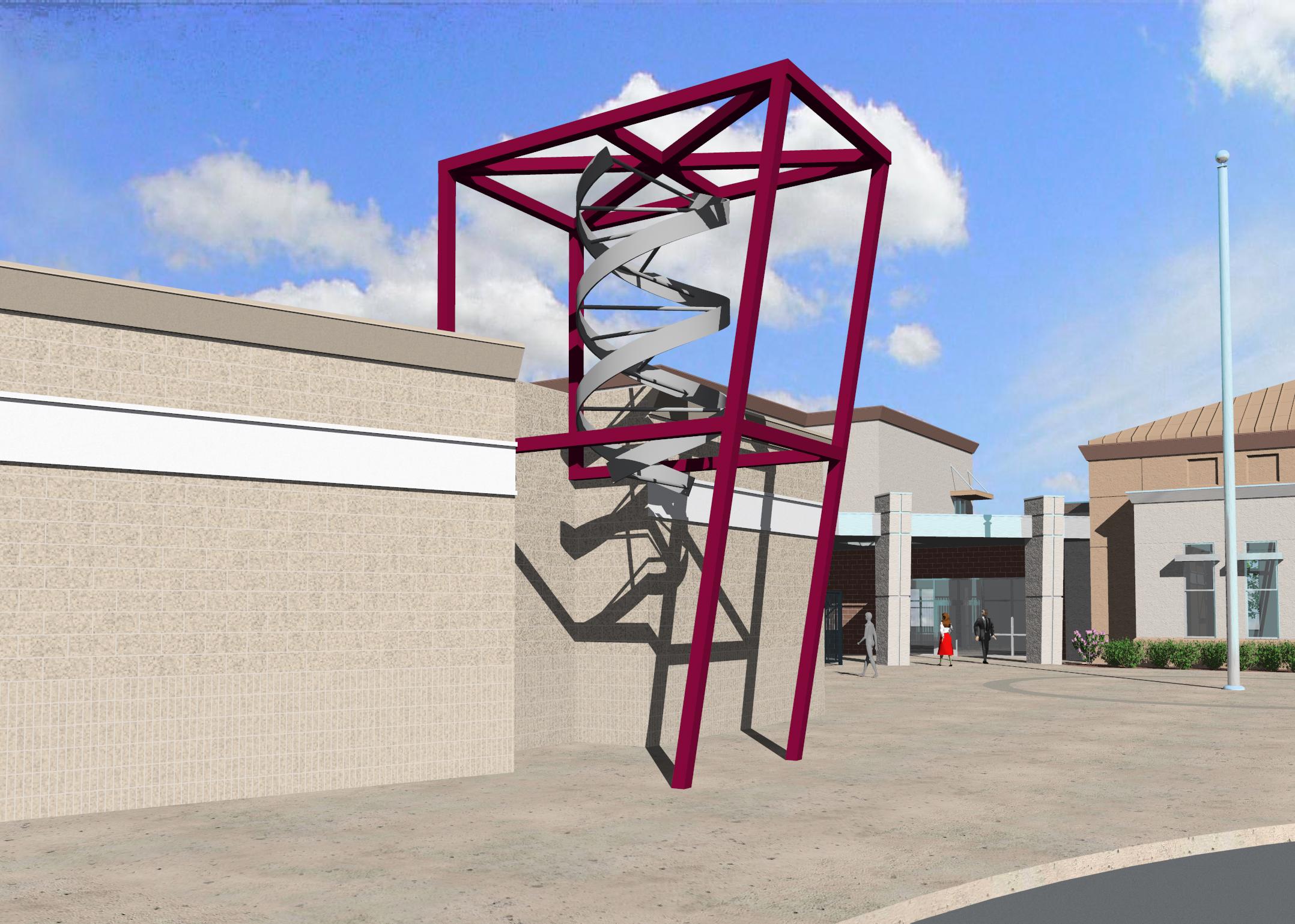

Here's a screen shot of how it came out if anyone is interested.

Attached Images


This user is offline



Fri, Mar 28, 2008 at 7:14:35 AM | how do you Mass a Helix - Kinda Like a DNA Strand

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


The materials should be just fine.  If you created the forms in autocad and seperated them by layer, you can assign the materails accordingly.  I have done that several times with 3d forms that I could not create in REVIT.

This user is offline



Fri, Mar 28, 2008 at 11:31:34 AM | how do you Mass a Helix - Kinda Like a DNA Strand

#8

rowlandscha


active

Joined: Wed, Jan 23, 2008
9 Posts
No Rating


Is there a special trick to it? because I seem to loose the material & texture on the objects every time & revit won't let me assign materials to it.

This user is offline



Fri, Mar 28, 2008 at 1:20:53 PM | how do you Mass a Helix - Kinda Like a DNA Strand

#9

KingRevit


active

Joined: Mon, Oct 15, 2007
321 Posts
4 Stars: 12 Votes


shape you are trying to make can be made in revit 2008, use the stairs tool. spiral stairs

the other thing is what family did you import it into, try the mass family then attach wall to it might give you the result better.


This user is offline



Fri, Mar 28, 2008 at 2:28:13 PM | how do you Mass a Helix - Kinda Like a DNA Strand

#10

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


When I did this, I created a family that I imported the cad drawing into.  Each 3d object that I wanted to assign materials to is on it's own layer.  When the family is then inserted, the layer name shows up in the project's materials file which is where you set it.  Not in the family.

This user is offline



Fri, Mar 28, 2008 at 3:09:04 PM | how do you Mass a Helix - Kinda Like a DNA Strand

#11

rowlandscha


active

Joined: Wed, Jan 23, 2008
9 Posts
No Rating


I must be doing something wrong, because I still can't get it to work.

This user is offline



Tue, Apr 8, 2008 at 10:03:10 AM | how do you Mass a Helix - Kinda Like a DNA Strand

#12

JustinT


active

Joined: Fri, Nov 16, 2007
93 Posts
5 Stars: 1 Votes


I know it's a rude word, but do you have AutoCAD i.e. Revit Suite 2008.

As mentioned you can do this in Revit with some work and very easliy in Revit 2009 :o) but for now you can always model your helix in AutoCAD with it's helix command and sweep a shape around it, then import it back into Revit... just an idea.

Justin

www.revitup.co.za


This user is offline



Thu, May 15, 2008 at 1:23:18 PM | how do you Mass a Helix - Kinda Like a DNA Strand

#13

lunchtrayrider


active

Joined: Sun, Jun 24, 2007
592 Posts
3.5 Stars: 7 Votes


badda bing badda boom revit 2008.

Attached Files

-----------------------------------
I like scooters. and motorcycles.

This user is offline



Thu, May 15, 2008 at 2:14:42 PM | how do you Mass a Helix - Kinda Like a DNA Strand

#14

JustinT


active

Joined: Fri, Nov 16, 2007
93 Posts
5 Stars: 1 Votes


Sweet!

This user is offline



Thu, May 15, 2008 at 2:17:37 PM | how do you Mass a Helix - Kinda Like a DNA Strand

#15

JustinT


active

Joined: Fri, Nov 16, 2007
93 Posts
5 Stars: 1 Votes


Spiral ramps as well...

http://www.revitup.co.za/main/page_tips__tricks_spiral_ramp.html

it's all about breaking the component down.


This user is offline
