Thu, Mar 13, 2008 at 9:23:05 AM | Showing Structure in elevation

#1

SWentz


active

Joined: Mon, Feb 25, 2008
4 Posts
No Rating

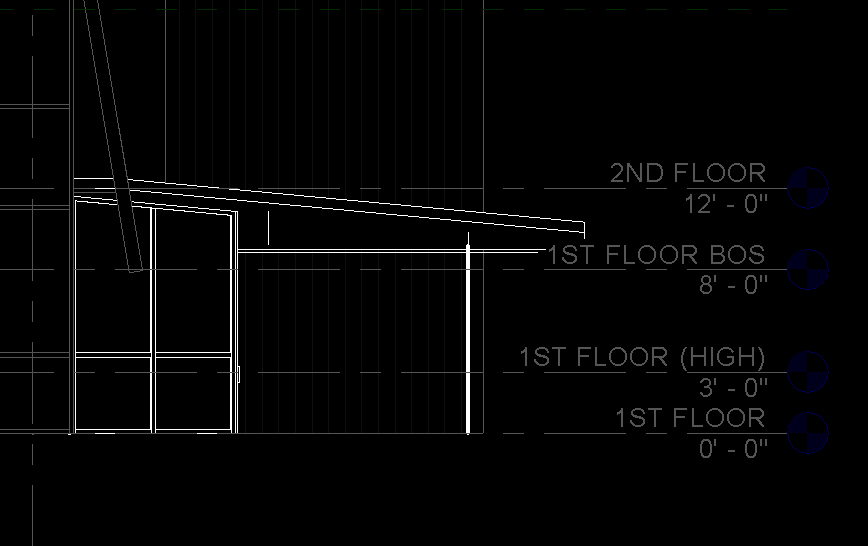

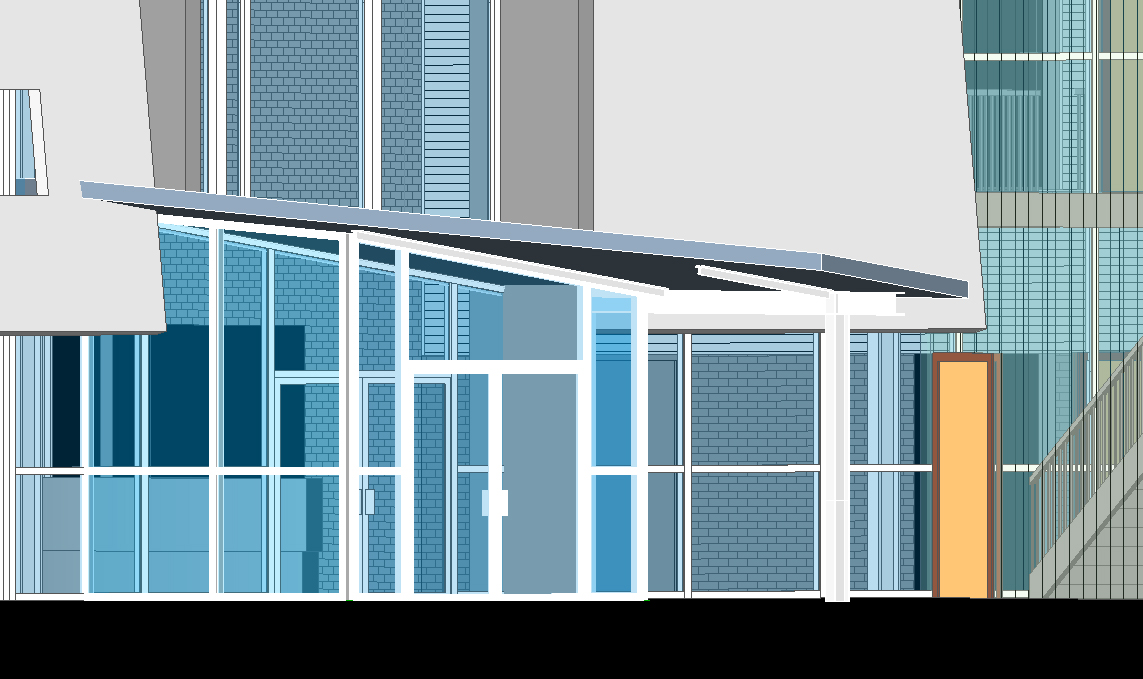

I’m using Revit’s structural tools to insert beams and columns.  They are showing up fine in plan and in the 3D views, but when I switch it over to elevation they only appear as a single line.  How do I make structure show up in elevation as the physical structure and not just a single line?  See screen shots attached

Attached Images


This user is offline



Thu, Mar 13, 2008 at 5:56:01 PM | Showing Structure in elevation

#2

Debo


active

Joined: Tue, May 22, 2007
27 Posts
No Rating


Change the "detail level:" to FINE and the "model graphics" to shading with edges... Hope that helps....
