Forums >> Revit Building >> Technical Support >> column visibility issues

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Mar 11, 2008 at 10:43:11 AM | column visibility issues

#1

NancyHKA


active

Joined: Thu, Mar 6, 2008
56 Posts
No Rating

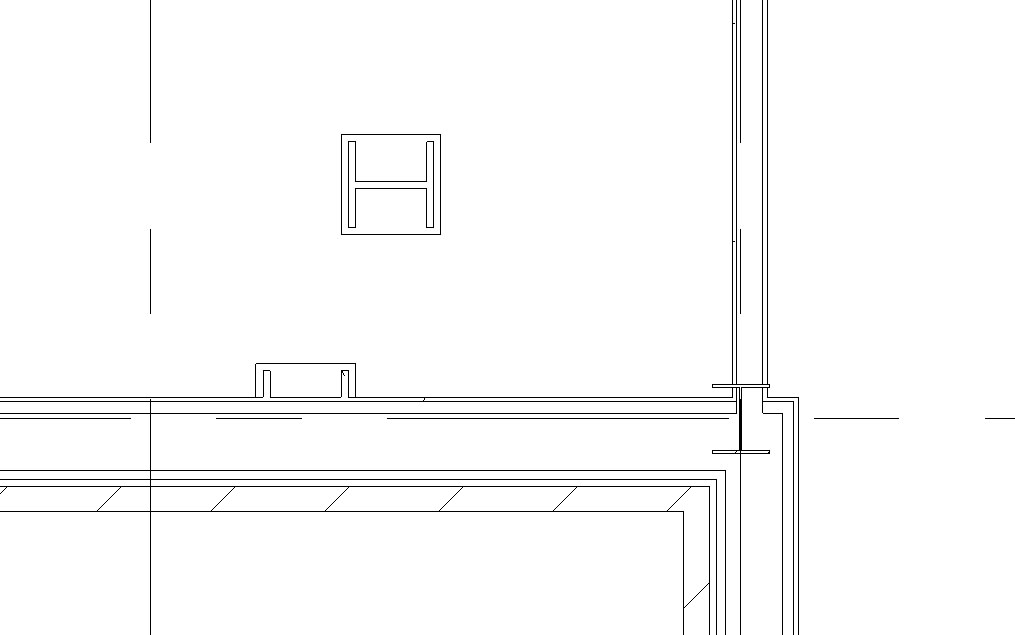

Hey all, I've created a new column family (using the column template) and loaded it into an existing project.  Only problem is, when I go to my floor plan view, once I move the column into a wall, it's no longer visible.  I don't think it has anything to do with how high the cut plane is, since the column is the same height as the wall that's obscuring it.  Attached is a screenshot.  Any suggestions?



Attached Images


This user is offline



Tue, Mar 11, 2008 at 11:21:11 AM | column visibility issues

#2

Jerome111


active

Joined: Wed, Jun 22, 2005
33 Posts
3 Stars: 2 Votes


Try using the unjoin geometry button on your tool bar. For some reason when columns embed into a wall it take the same finishes. If you unjoin the geometry it should correct the visibility.

This user is offline

View Website

Tue, Mar 11, 2008 at 12:08:15 PM | column visibility issues

#3

NancyHKA


active

Joined: Thu, Mar 6, 2008
56 Posts
No Rating


thanks jerome, that worked out well.
