So I am finally working an a building that will be segments onto multiple sheets and I would like to use the view reference to show what sheet the adjacent segments are on. But everytime that I place them they all point to the same sheet.

How do I get 2 adjacent View References to reference different views and show up on multiple views? Basically I want something like what is attached but functional.

Thanks

Nick

Attached Images

This user is offline

View Website

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

NKramer,

You might want to play with this in a test project.

- Create an overall plan

- From that plan, create a dependent view

- Create your match line

- Crop your base sheet to one of the view you want and place it on sheet 1

- Crop the dependent view to the other half and place that on sheet 2

- When you tag the match line on sheet , it will refer to sheet 2  (tag must be loaded and on)

- When you tag the match line on sheet 2, it will refer to sheet 1. (tag must be loaded and on)

This user is offline

NKramer

active

Joined: Tue, Oct 9, 2007
285 Posts

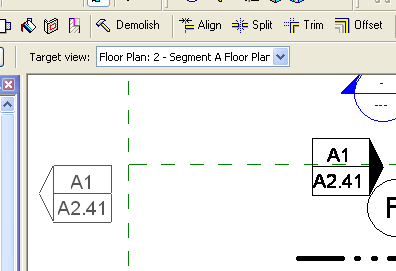

I totaly missed this before, but there is a "Target View" menu where you can choose your target view. At least this works for dependant views, but I'm not sure where else you would use view refences.

Nick

Attached Images

This user is offline

View Website
