Forums >> Revit Building >> Technical Support >> Help: Linetype with text?
|
|
|
active
Joined: Sat, Dec 9, 2006
14 Posts
No Rating |

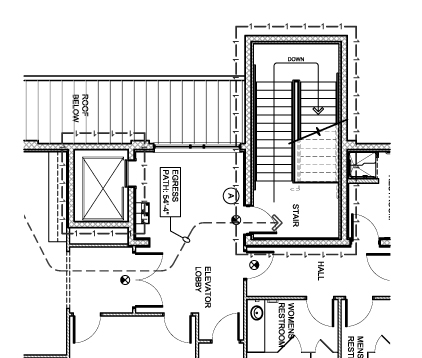

We're trying to create a linetype similar to what we created in AutoCAD to represent rated walls on our Life Safety Plans. I have attached a picture of what we're trying to acheive. The closest thing we've come up w/ is a "repeating detail" -- but it has its limitations. Any clue on how to create a linetype w/ text? Take a look at the picture and see if it will better explain what I'm trying to do. Thanks!
|
This user is offline |
View Website
|
 | |
|
|
active
Joined: Thu, Dec 13, 2007
135 Posts
 |
Hey try this and see if it works. It too has its limitations, but at least you can adjust the symbols and number of symbols. It was done in RAC2009
-----------------------------------
