Forums >> Revit Building >> Technical Support >> Wall quantities with offsets

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Feb 16, 2008 at 12:57:28 PM | Wall quantities with offsets

#1

SteveB


active

Joined: Sat, Oct 25, 2003
411 Posts
3.5 Stars: 5 Votes


when you create a wall assembly and have an exterior layer that is unlocked, and change the offset (as in the case of a stone veneer on a concrete wall that doesn't go all the way to the base) is there a way for the wall schedule to calculate JUST the reduced wall veneer, not the total wall assembly?


This user is offline

View Website

Mon, Feb 18, 2008 at 4:43:18 PM | Wall quantities with offsets

#2

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


good question Smile

the only way I can see to achieve this is by adding a parameter to the wall schedule something like: your wall overhang x wall length, that should give you the areas... though I never did it, let me know if it works...


-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Mon, Feb 18, 2008 at 5:08:04 PM | Wall quantities with offsets

#3

SteveB


active

Joined: Sat, Oct 25, 2003
411 Posts
3.5 Stars: 5 Votes


That would work except the wall Element Property is "base extension distance" which is not an available field in the "Schedule Properties".


This user is offline

View Website

Mon, Feb 18, 2008 at 5:56:29 PM | Wall quantities with offsets

#4

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


you will need to add the parameters yourself in the field window of your schedule properties.

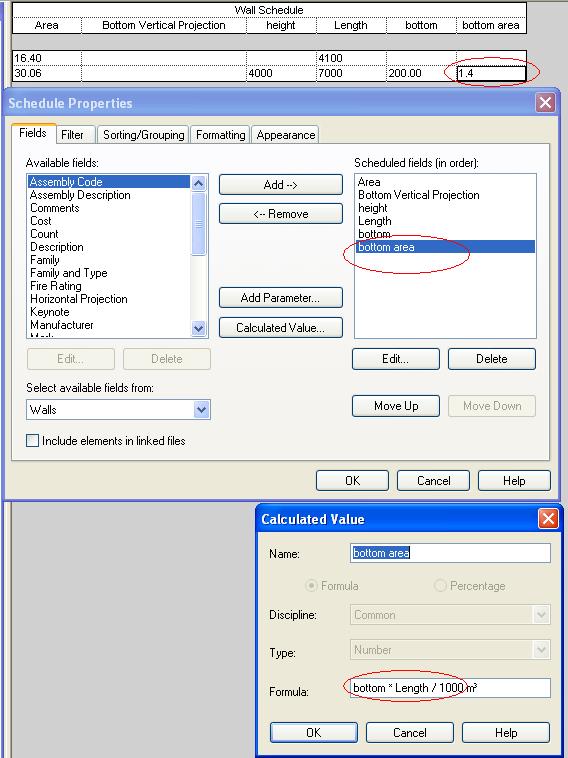

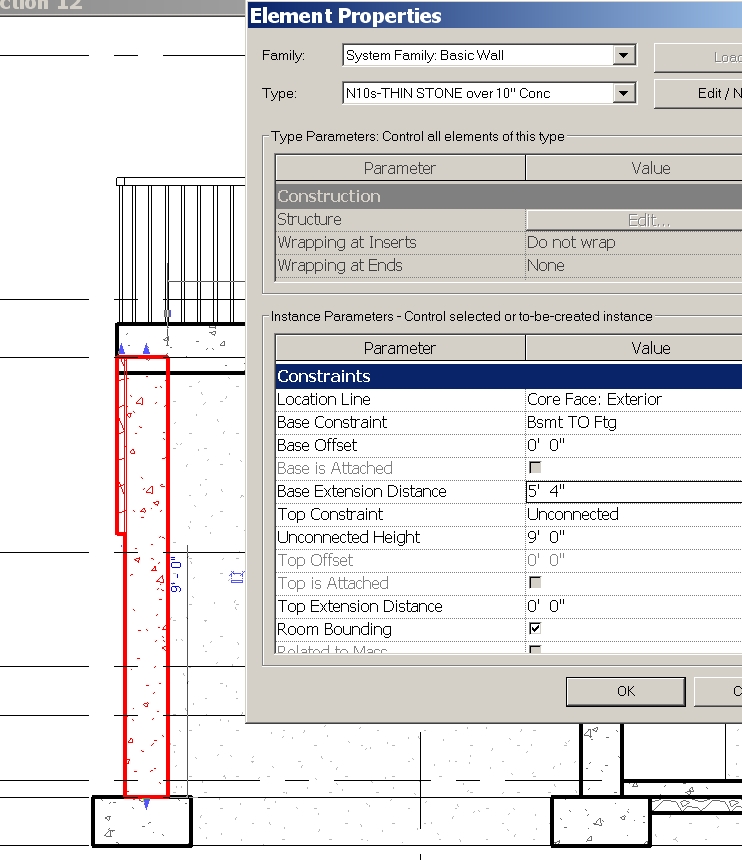

add one that's called "bottom" (or whatever you like) then add a "Calculated Value..." see attached image, since you know that the extension is a given number, it will be easy to calculate.

hope this helps Smile



Attached Images


-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Mon, Feb 18, 2008 at 6:29:49 PM | Wall quantities with offsets

#5

SteveB


active

Joined: Sat, Oct 25, 2003
411 Posts
3.5 Stars: 5 Votes


what is your field called "bottom".  The parameter I would need to calculate from is the "base extension distance".   Is there a way to have that become an "available field".

Attached Images


This user is offline

View Website

Mon, Feb 18, 2008 at 6:47:27 PM | Wall quantities with offsets

#6

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


"bottom" is a parameter I created instead of "base extention distance" since it's not in the parameters list (why? i don't know!)

so, base extention is a given number, which you will need to enter in order for the formula to work, it's a bit of a round way around a problem that shouldn't have been there in the first place Smile


-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Mon, Feb 18, 2008 at 9:00:52 PM | Wall quantities with offsets

#7

SteveB


active

Joined: Sat, Oct 25, 2003
411 Posts
3.5 Stars: 5 Votes


Are you manually entering the value for bottom?  In other words, the program is not reading it from the actual wall based on the base extension offset?


This user is offline

View Website

Mon, Feb 18, 2008 at 10:00:37 PM | Wall quantities with offsets

#8

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


that is correct! i haven't found a way to get the parameter to show up with the correct value, but since you know the distance and I assume it's going to be the same all around the building, this is just a quick fix to get results.

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Tue, Feb 19, 2008 at 6:23:04 AM | Wall quantities with offsets

#9

SteveB


active

Joined: Sat, Oct 25, 2003
411 Posts
3.5 Stars: 5 Votes


I put in a new parameter called VeneerOffset and a subtotaled calculated field called Veneer which is

     Area-(Length*VeneerOffset)

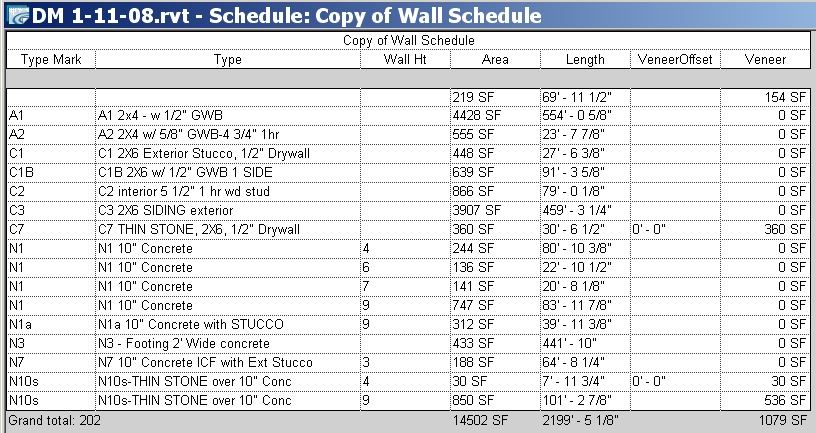

It only takes a couple minutes to manually enter the VeneerOffsets which I did using a 3d view working around the structure.  No exactly full blown BIM but does the trick.  I found it helpful to re-set the schedule to schedule properties/sorting-grouping/itemize every instance so as not to miss a wall insance.  Bingo.   thanks!

I wonder if there is a way though to grab parameters from a family and add them to the "available fields".   the one I've alwys wanted was to show the hand of the door (which isn't actually a parameter but an orientation).



Attached Images


This user is offline

View Website

Tue, Feb 19, 2008 at 6:24:35 AM | Wall quantities with offsets

#10

SteveB


active

Joined: Sat, Oct 25, 2003
411 Posts
3.5 Stars: 5 Votes


Also, in my schedule "wall height" in the attached schedule is a manually entered value, assists in quantity takeoff for concrete work.  Ought to be an available parameter but isn't.


This user is offline

View Website

Tue, Feb 19, 2008 at 4:47:42 PM | Wall quantities with offsets

#11

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


There is no "wall height" parameter, I don't think they plan on adding it too. the problem is that your wall might go from level 1 to level 2 but if you edit the profile and took part of it to level 3 it will still read as level 2... once you add this parameter you are open to more mistakes.

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Tue, Feb 19, 2008 at 4:55:45 PM | Wall quantities with offsets

#12

SteveB


active

Joined: Sat, Oct 25, 2003
411 Posts
3.5 Stars: 5 Votes


I see your point.  But "Unconnected height" displays in the schedule even if you spec'd from level x to level y.  It would be helpful to be able to display "Unconnected height".  in the schedule or calculate using that "Unconnected height".

This user is offline

View Website
