Forums >> Revit Building >> Technical Support >> Which tool i need to use for wedge pile foundation??

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jan 29, 2016 at 12:46:27 PM | Which tool i need to use for wedge pile foundation??

#1

madismurk


active

Joined: Tue, Jan 19, 2016
0 Posts
No Rating


Hi, which tool is best for wedge pile foundation? (S-6 in PDF).

And if i have them multiple, how can i change them all at 1 time?? (should i use group or assembly)



Thank you.



Attached Files

This user is offline



Tue, Feb 16, 2016 at 10:48:58 AM | Which tool i need to use for wedge pile foundation??

#2

Beaucoupnice


active
Beaucoupnice Avatar

Joined: Mon, Nov 19, 2007
93 Posts
3.5 Stars: 6 Votes


I have no idea what a wedge pile foundation and your 2D drawings don't tell much either.

I am going to assume it is the cranked shape on section d-d and b-b.

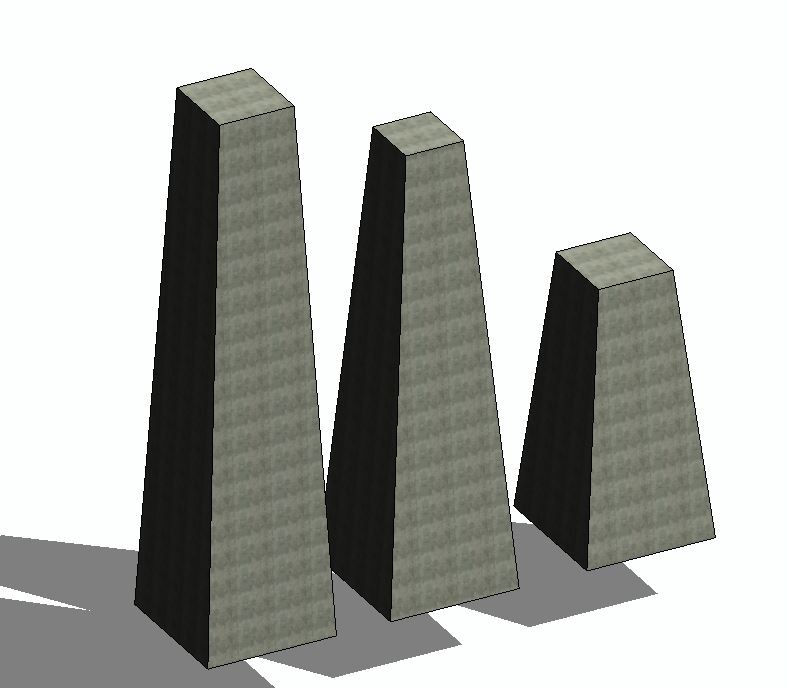

I would use an inplace family and use a solid blend to make one shape at the top extend downward to a required length and change into a different shape at the bottom. Or if you have a number of them and they have differing lengths and top/bottom shapes, you could create a parametric family that allows you to adjust the length and shape sizes to suit. Kind of like the attached image.



Attached Images


-----------------------------------

__________I'm the guy they come to when they didn't follow my recommended workflows.__________

This user is offline
