How to Make a Sloping Rounded Roof

Tutorial by: Mr GG
September 24, 2004

Printer Friendly Version

Page 1 of 6 | 1 | 2 | 3 | 4 | 5 | 6 Next >>

A rounded roof sloping to one of the gables. In Revit there are two ways to accomplish this. Use a roof by extrusion in combination with voids, or an in-place roof family. This tutorial explores the latter method.


(click to enlarge)

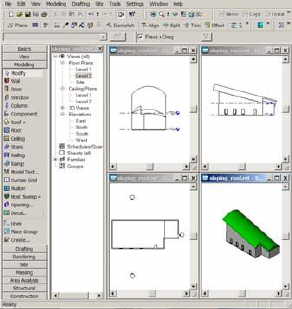

1.   Start with some walls, windows....Something like this.

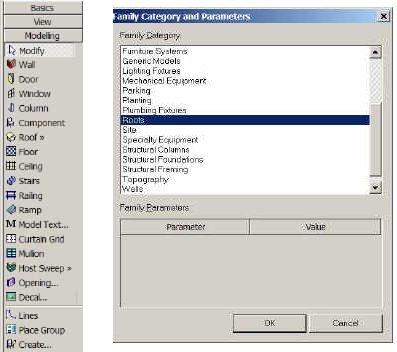

2.   Choose Create on the Modelling tab of the Design Bar. And then choose the Family Category - Roofs.


(click to enlarge)
