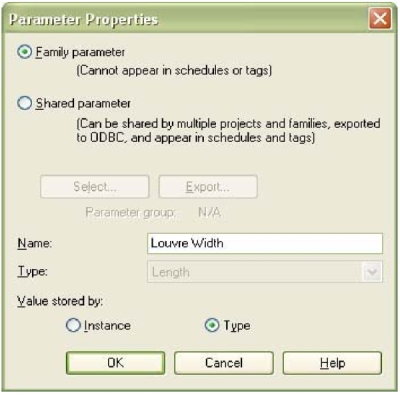

3. Label the length parameter as Louvre Width and select Type then click OK.

(click to enlarge)

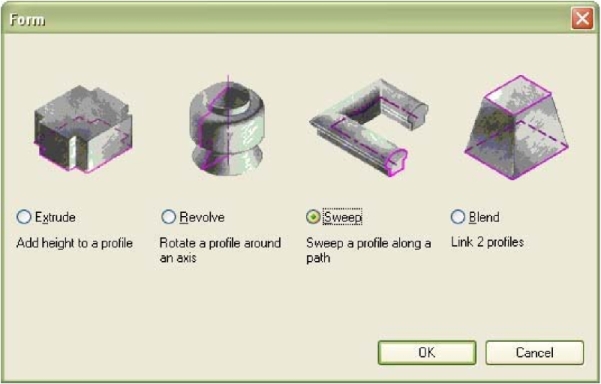

4. Now we need to create our louvre which we will later use to nest into our window family. Select solid from the menu at the left and choose Sweep then click OK.

(click to enlarge)
