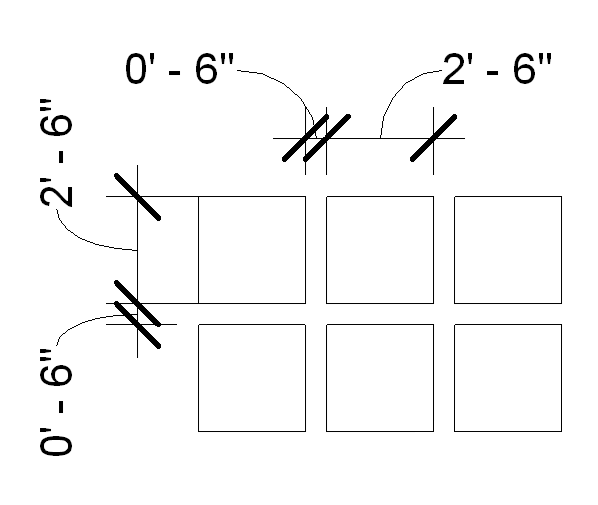

I am making a waffle ceiling and I'm trying to create a reflected ceiling plan. all I want is a hatch pattern 2' 6" square thats spaced 6" apart. Can anyone give me that hatch pattern or tell me an easy way to make it I posted an example picture of how the fill pattern should be. PLEASE HELP!
|
|
active
Joined: Tue, Jan 27, 2004
80 Posts
 |
Try this ;%VERSION=3.0;%UNITS=INCH*WAFFLECEILING,30" waffle @ 36" pitch both ways;%TYPE=MODEL;-------------------------------------------------------------------------------; Pattern written by HatchKit v2.7 Hatch Pattern Editor; HatchKit v2.7 Hatch Pattern Editor(c) Cadro Pty Ltd 1990-2007.; www.cadro.com.au/hatchkit/;-------------------------------------------------------------------------------;-Template=NEW,;-Date =17/01/2008;-Time =12:51:56 PM;-HatchKitVersion=2.7.1.1980;--------------------------------------------------------------------------------90,0,30,0,36,30,-6180,30,30,0,36,30,-690,30,0,0,36,30,-60,0,0,0,36,30,-6 Hugh Adamson Cadro Pty Ltd www.cadro.com.au
|
|
active
Joined: Tue, Jan 27, 2004
80 Posts
|
Hmm, that would have been better if I had attached the file instead. Fixed. Hugh
|
|
active
Joined: Tue, Jan 27, 2004
80 Posts
|

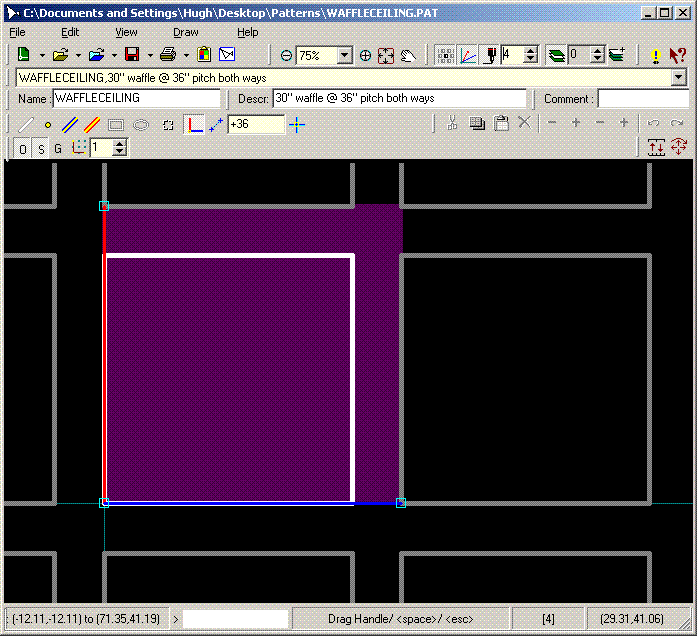

No worries, it is a very simple pattern. Draw a 30" square and space 6" apart. Save as a Revit model pattern.
-----------------------------------
Hugh Adamson
