Forums >> Revit Building >> Technical Support >> Revit 2020 - Stairs not showing in plan levels

FrothyCappucino

active

Joined: Sun, Apr 26, 2020
0 Posts
No Rating

Hope someone can help as I've been unable to find a solution

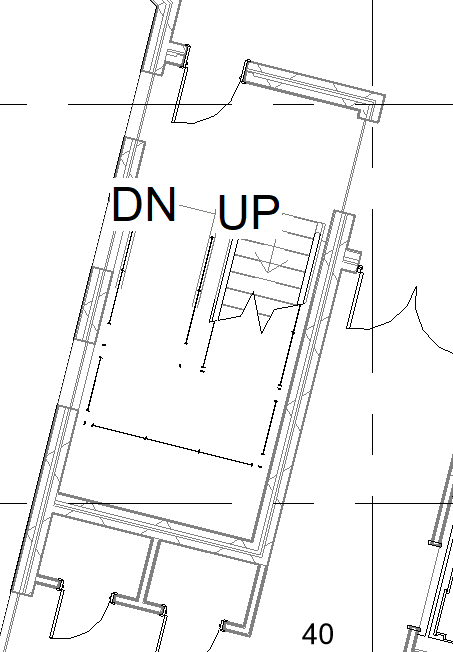

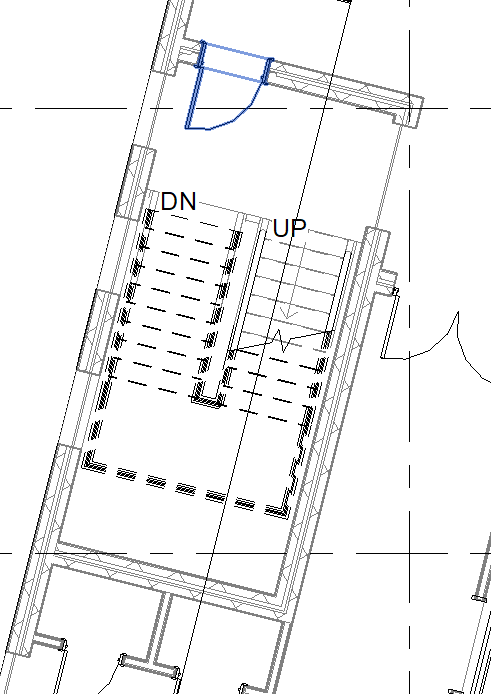

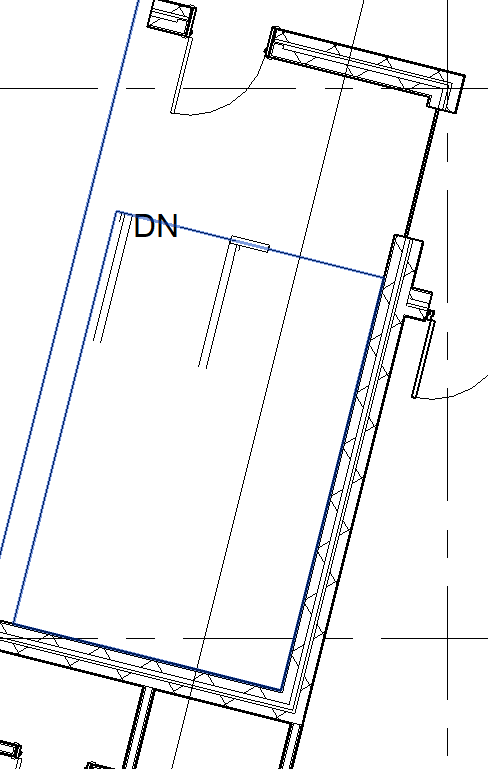

On the ground level floor plan, the stairs display fine but on the upper levels I'm getting a partial display and on the top floor, no display at all. I've checked the visibility and graphics settings and the view ranges for each plan view and still havent been able to work out whats causing it. I have a shaft running through the floors where the stairs are.

Attached Images

This user is offline

Kasooma

active

Joined: Sun, May 29, 2022
0 Posts
No Rating

So randy this just means that you haven't actually placed the stairs. Heres how to do so, firstly, go to architecture, stairs, then click on the area of the building where the stairs should be placed side note dn means down hope this was helpful and should solve your issue quickity split

Attached Images

-----------------------------------

GIIE

This user is offline

FrothyCappucino

active

Joined: Sun, Apr 26, 2020
0 Posts
No Rating

Thanks for the reply but I have placed the stairs. Its a continuous staircase running through the entire building, 4 floors in total. Which is why I'm so stumped as to why its not showing properly on one of the floors when the visibility/graphics settings and view depth are identical on all plan views.

This user is offline

Stairs in plan

3

creating stairs throughout levels

1

Importing IFC into Revit 2020. Windows/Doors not showing in plan/elevations/sect

0

Plan Region & stairs

9

Cant see stairs in opening in plan view

4
