Forums >> Revit Structure >> Technical Support >> Screened revision cloud lines

Lenhoksin

active

Joined: Fri, Oct 24, 2008
15 Posts
No Rating

Does anyone know if you can screen the revision cloud lines to print screened? When you cloud items especialy when your just changing a number we don't want the cloud to cover other items. And halftone just changes it on the screen not when printed.

Thanks in advance.

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Learn  to use your HELP - it really answers a lot of questions.  Searching halftone settings, you find this:

http://help.autodesk.com/view/RVT/2016/ENU/?guid=GUID-3B363D33-70F7-491C-9ED0-9D27977E635F

This user is offline

Lenhoksin

active

Joined: Fri, Oct 24, 2008
15 Posts
No Rating

Thanks for your responce WWHub. I do use the HELP file. I need to re word my question. I want to make the Revision Clouds Transparent not halftone when we print. I have a feeling that I can't in Revit.

Thanks again

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

I wish you had read the link I posted.  If you had, you might understand how to set up your halftone so that prints like you want.  The issue is your settings.

This user is offline

Lenhoksin

active

Joined: Fri, Oct 24, 2008
15 Posts
No Rating

Perhaps I am still not explaining clearly what I want.  I am able to make the clouds half tone, but when the clouds overlap with other objects, the clouds block the information underneath such as text.  Please see the attached pdf file.  I would like to be able to put the cloud behind other objects or have the cloud print transparent so you can see both objects - the cloud and text.

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

You did complain that halftone did not print and that was what I responded to.

Clouds are always on top so you have to draw them so they do not cover up important information.

This user is offline

rbrown

active

Joined: Fri, Dec 14, 2007
1 Posts
No Rating

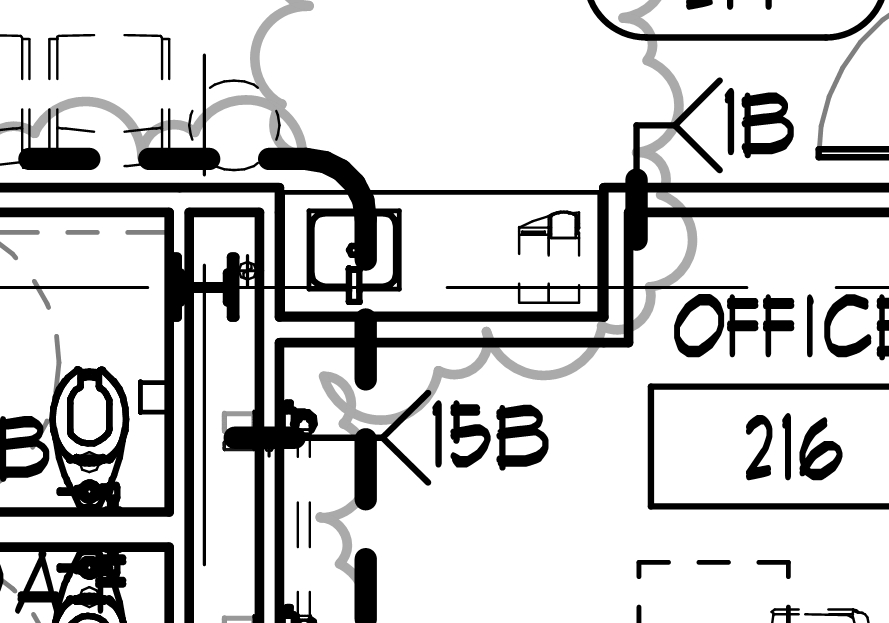

Use a print driver that allows line merge.  For Bluebeam under "General Settings" check the "Line Merge" checkbox, select "Advanced", select Blend Mode "Darken", select Opacity "100%".  See results in attached image.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

We never found a reason to use Bluebeam but this looks like it may be useful.  Maybe thngs have changed since Bluebeam first came out.

This user is offline
