Forums >> Revit Structure >> Technical Support >> Walls joining: in-place model + regular wall

Search this ThreadSearch this Thread | Page 1 of 2 | 1 | 2 Next >>

Tue, Jul 28, 2015 at 6:30:49 AM | Walls joining: in-place model + regular wall

#1

MarcinD


active

Joined: Thu, Jun 11, 2015
0 Posts
No Rating


Hello,

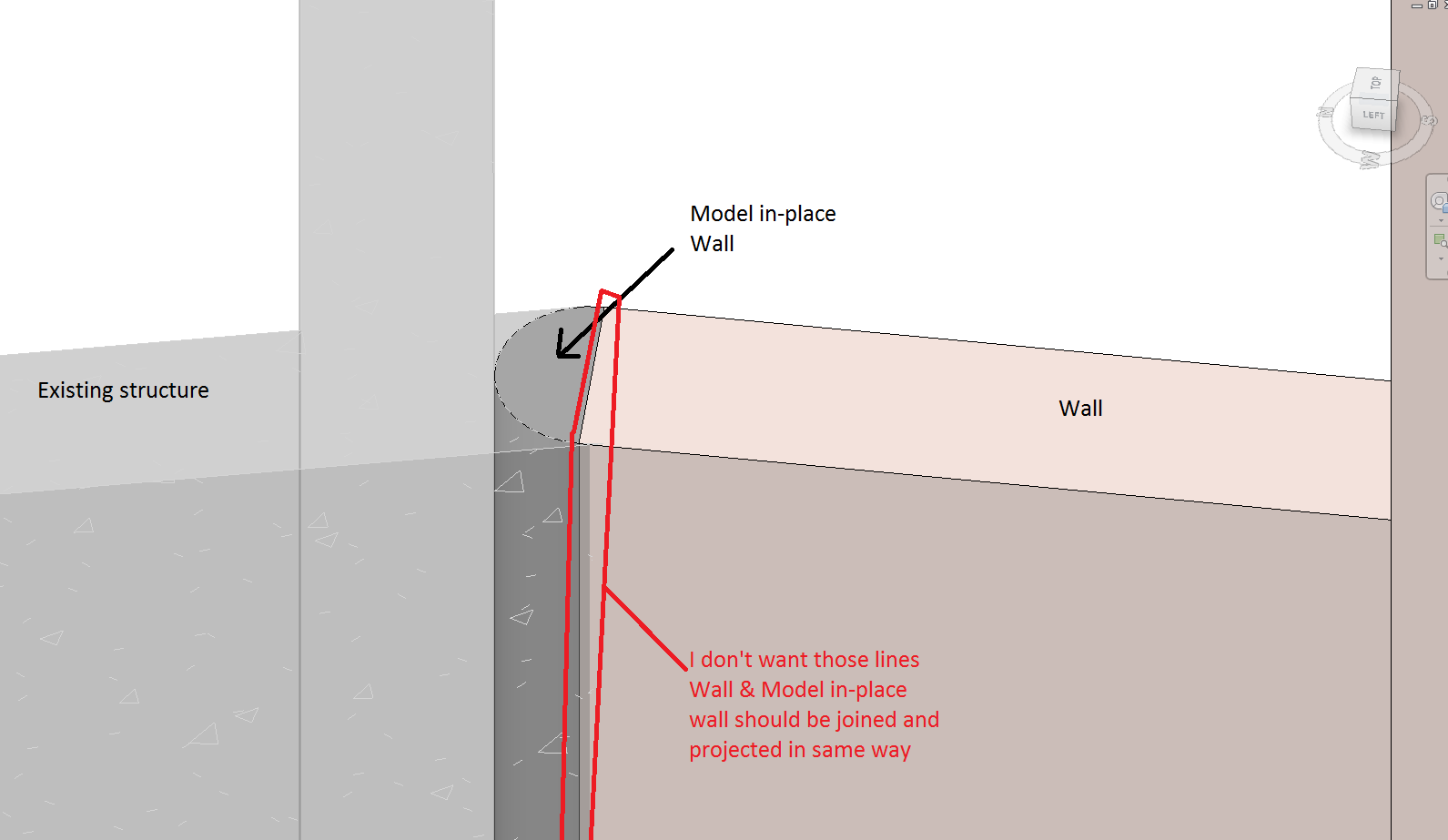

I would like to join my regular wall (pink) with half-circle (in-place model, black) in that way that line between them won't be projected. Moreover I would like to have same way of color projection - generally both of elements should be the same (they are cast in-situ at same time). Grey part of image is existing structure.

Maybe some of you has better idea how to prepare that kind of wall with half-circle end? I would be happy to find out most automatic way to do it.

Regards.



EDIT: I have similar problem, when I am trying to place a concrete beam, slightly curved. When I am using "cut geometry" tool I receive answer: "Cuts on concrete members are ignored.". I need concrete beam to be in contact with wall (see attachment https://www.dropbox.com/s/dup1sxmplsu1k2u/revitcity2.PNG?dl=0). Problem doesn't exist in case of steel beams.



Edited on: Tue, Jul 28, 2015 at 7:30:31 AM



Edited on: Tue, Jul 28, 2015 at 7:45:45 AM

Attached Images


This user is offline



Tue, Jul 28, 2015 at 7:44:25 AM | Walls joining: in-place model + regular wall

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Your image is meaningless.


This user is offline



Tue, Jul 28, 2015 at 7:49:48 AM | Walls joining: in-place model + regular wall

#3

MarcinD


active

Joined: Thu, Jun 11, 2015
0 Posts
No Rating

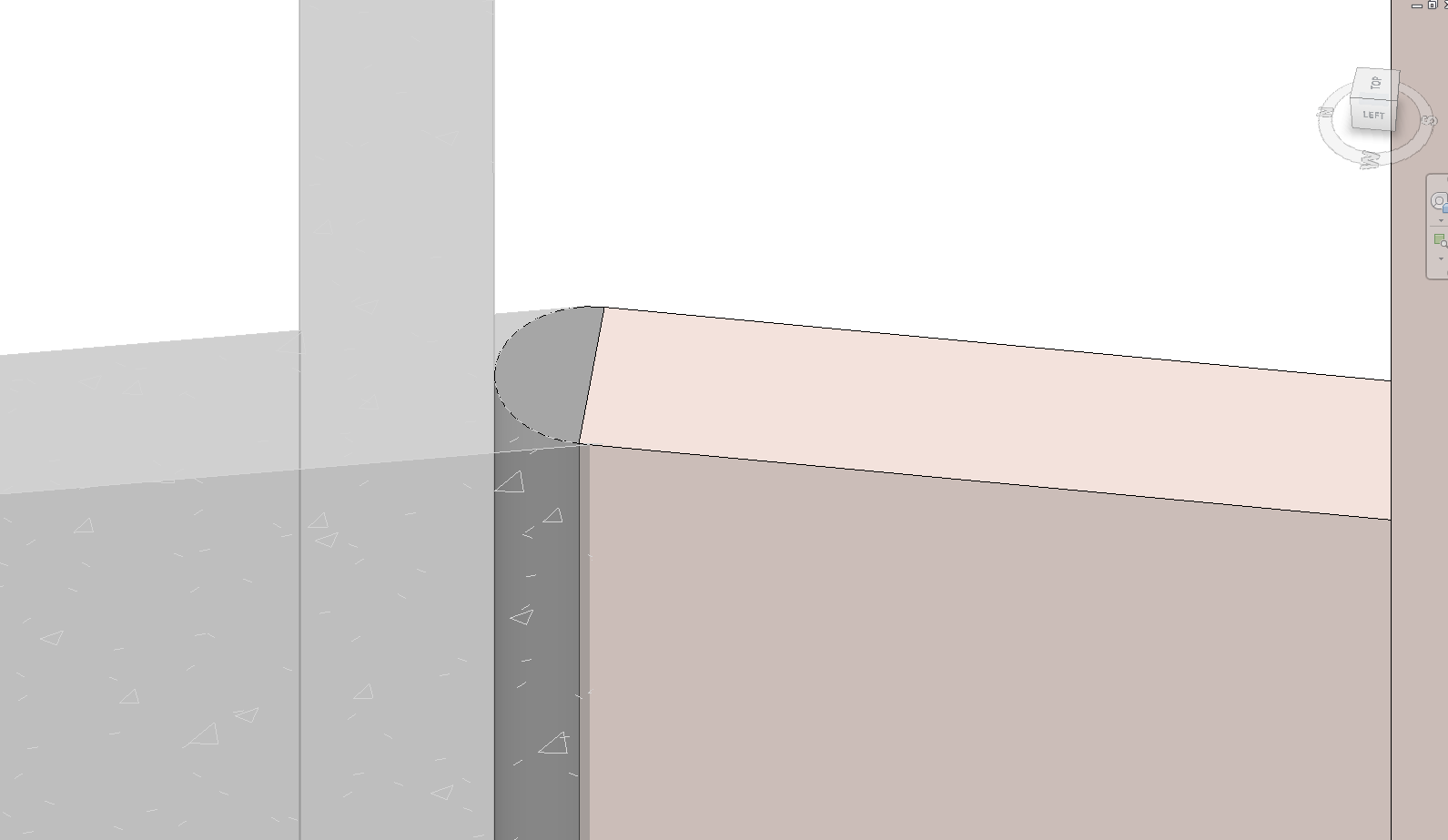

Better?



Attached Images


This user is offline



Tue, Jul 28, 2015 at 8:02:20 AM | Walls joining: in-place model + regular wall

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


This half circle is embedded in the existing wall?   Why model?   Would seem to be a detail element.



Don't model the arc wall.   Extend your wall and cut the end with a vertical in-place void.


This user is offline



Tue, Jul 28, 2015 at 9:35:18 AM | Walls joining: in-place model + regular wall

#5

MarcinD


active

Joined: Thu, Jun 11, 2015
0 Posts
No Rating


@WWHub The model shows diaphragm walls and to connect new phase with already existing there is a need to use that half-circle, which is embedded, as you noticed, to existing wall. For me it isn't a detail element: it should be visible in plan scale 1:100 that end of wall is half-circle instead rectangular.

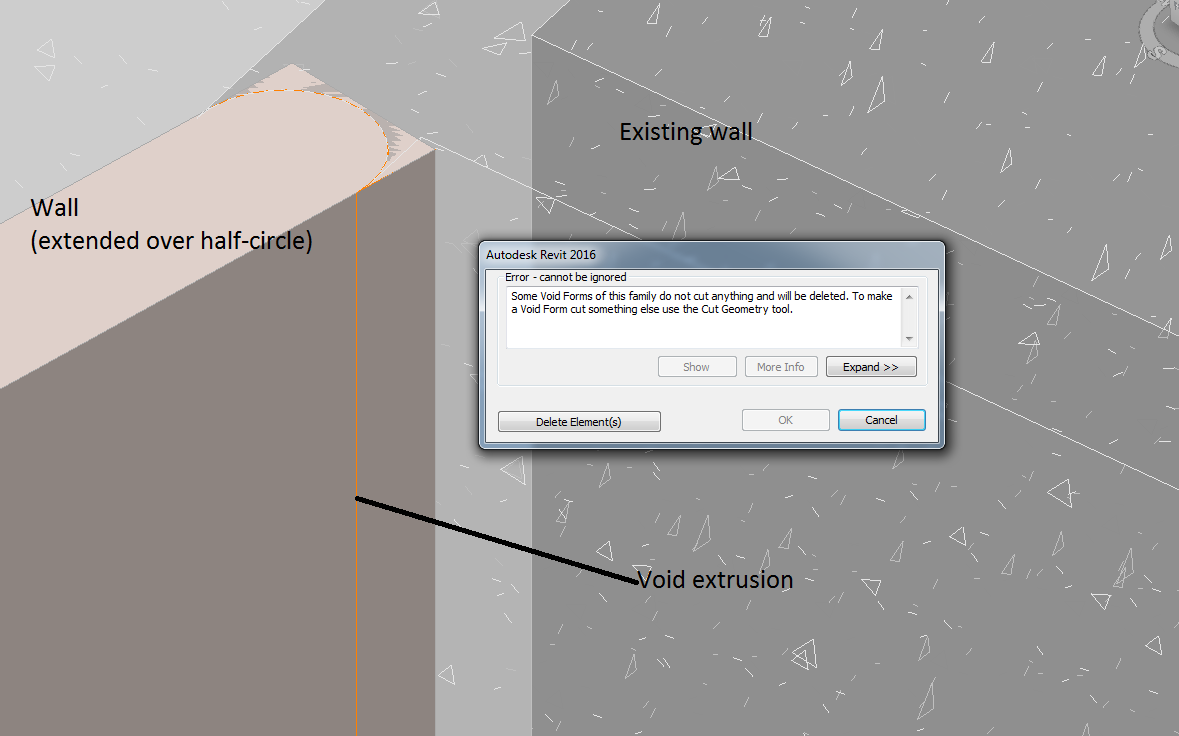

I've tried to use your method (which seems to be a good solution), but I receive following message (see also attachment): "Some Void Forms of this family do not cut anything and will be deleted. To make a Void Form cut something else use the Cut Geometry tool.". I've tried to use different shapes of voids and still I get the same error. What's next step?



Regards.



Attached Images


This user is offline



Tue, Jul 28, 2015 at 9:52:36 AM | Walls joining: in-place model + regular wall

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You have to follow the correct process.

First, I always name the void and place it in the correct category.   In this case, it would be wall.

Next - before finishing the void in-place form, you have to assign the cut geometry - not afterwards.


This user is offline



Tue, Jul 28, 2015 at 11:11:02 AM | Walls joining: in-place model + regular wall

#7

MarcinD


active

Joined: Thu, Jun 11, 2015
0 Posts
No Rating


@WWHub, I've done what you've said.

  1. Create / Void Forms: Void Extrusion.
  2. Then fix Exstrusion End and Extrusion Start.
  3. Create correct (or even very simple) shape.

The error communicate is still the same. There is a possibility that I not understand correctly your words, for that I can say only sorry.

If you will have some spare minutes, please take a look to my model: https://www.dropbox.com/s/i4qn07ls74xo439/Model.rvt?dl=0

Regards.


This user is offline



Tue, Jul 28, 2015 at 12:14:30 PM | Walls joining: in-place model + regular wall

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You don't say what Revit so you will have to live with this 2015 file.



This user is offline



Tue, Jul 28, 2015 at 12:40:21 PM | Walls joining: in-place model + regular wall

#9

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


Are you using ‘pick lines’ option when creating a void? Somehow the association of the void arc with the other arc messes things up. To brake that relation, pull/stretch the arc, or move it and bring it back to its original location. It should work now.



Attached Images


This user is offline



Tue, Jul 28, 2015 at 4:16:20 PM | Walls joining: in-place model + regular wall

#10

MarcinD


active

Joined: Thu, Jun 11, 2015
0 Posts
No Rating


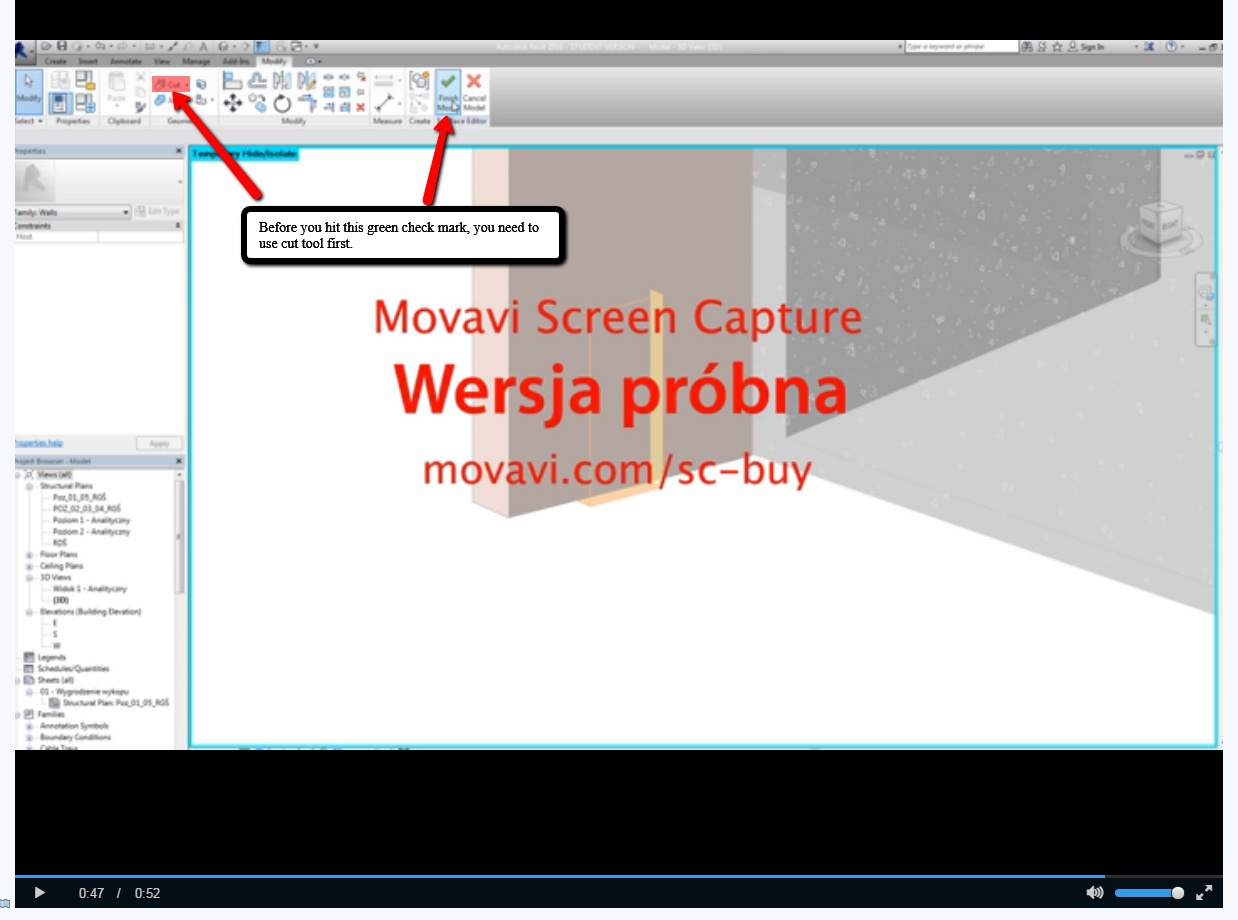

I still can't get correct solution. Just to show you what problem exactly I have, I prepared a video: https://www.dropbox.com/s/a4zyq9sajz5dzuh/Void%20Extrusion%20Problem.mp4?dl=0.

Previously I chose Structure/Component/Model in Place: Wall.

I can't do any extrusion, not only that one for half-circle.

@pijpiwo, I was using pick lines previously, but it doesn't work even for normal rectangular as you can see above.

What I am doing wrong?

Regards.


This user is offline



Tue, Jul 28, 2015 at 5:31:43 PM | Walls joining: in-place model + regular wall

#11

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes

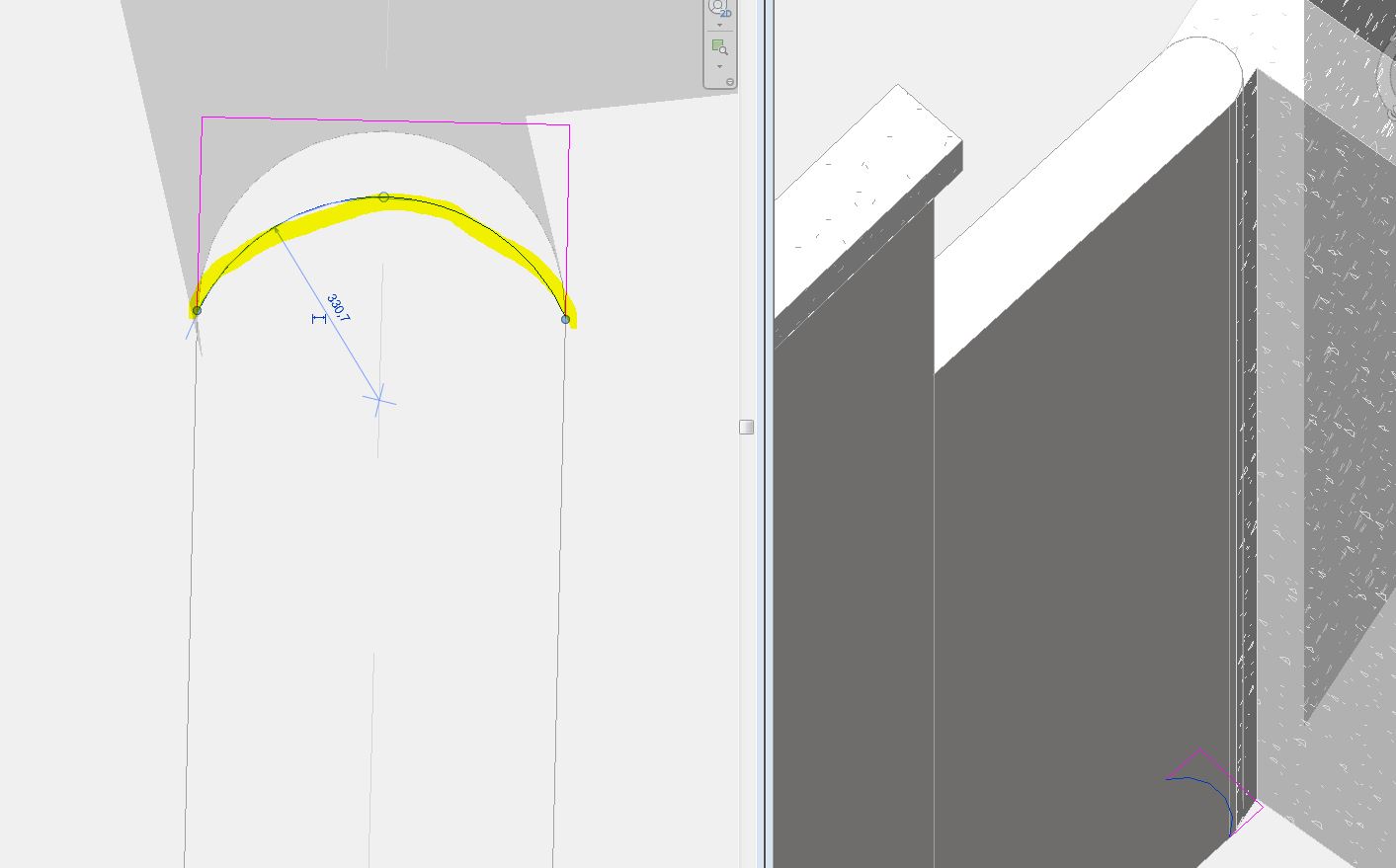

See picture.



Attached Images


This user is offline



Wed, Jul 29, 2015 at 4:48:19 AM | Walls joining: in-place model + regular wall

#12

MarcinD


active

Joined: Thu, Jun 11, 2015
0 Posts
No Rating

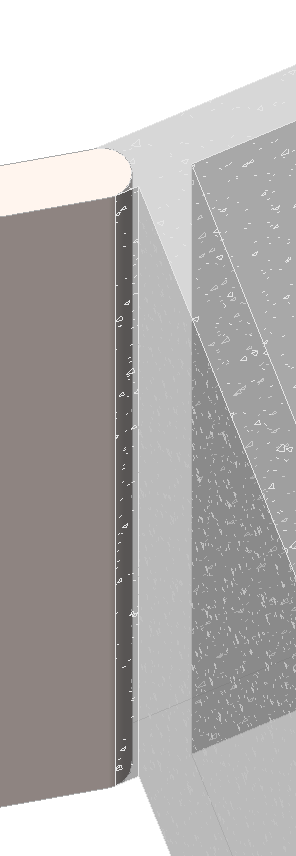

Thank you !



Attached Images


This user is offline



Wed, Jul 29, 2015 at 5:49:33 AM | Walls joining: in-place model + regular wall

#13

MarcinD


active

Joined: Thu, Jun 11, 2015
0 Posts
No Rating

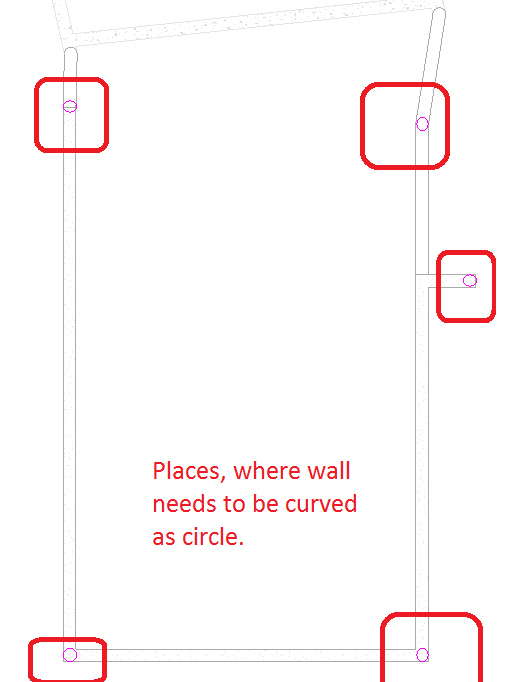

One more question, connected with that topic: it was at the end very easy to modify one/two places in model, but what if I need to round all places where wall changes its direction? Is it possible to somehow do it quicker, without using extrusion? (for clarity see attachment)



Edited on: Wed, Jul 29, 2015 at 5:54:55 AM

Attached Images


This user is offline



Wed, Jul 29, 2015 at 1:57:32 PM | Walls joining: in-place model + regular wall

#14

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes

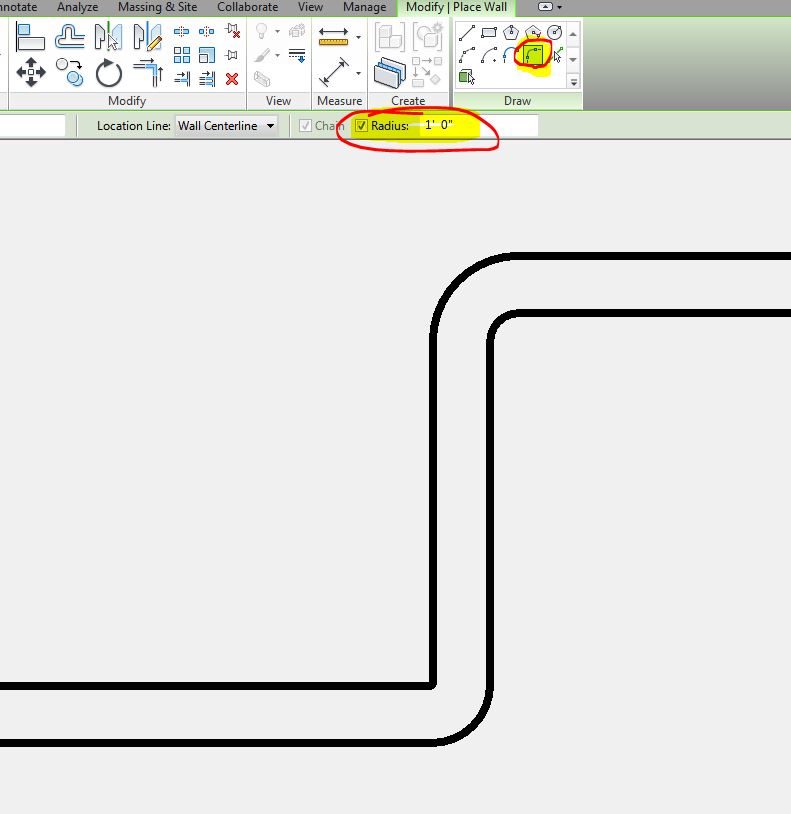

With a wall tool active, use ‘fillet’. Radius cannot be smaller than half the wall thickness though.



Attached Images


This user is offline



Wed, Jul 29, 2015 at 3:55:02 PM | Walls joining: in-place model + regular wall

#15

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


If your walls are not joined, you can use a face based void family that cuts the host and place that on the end of your walls.


This user is offline
