Hi,

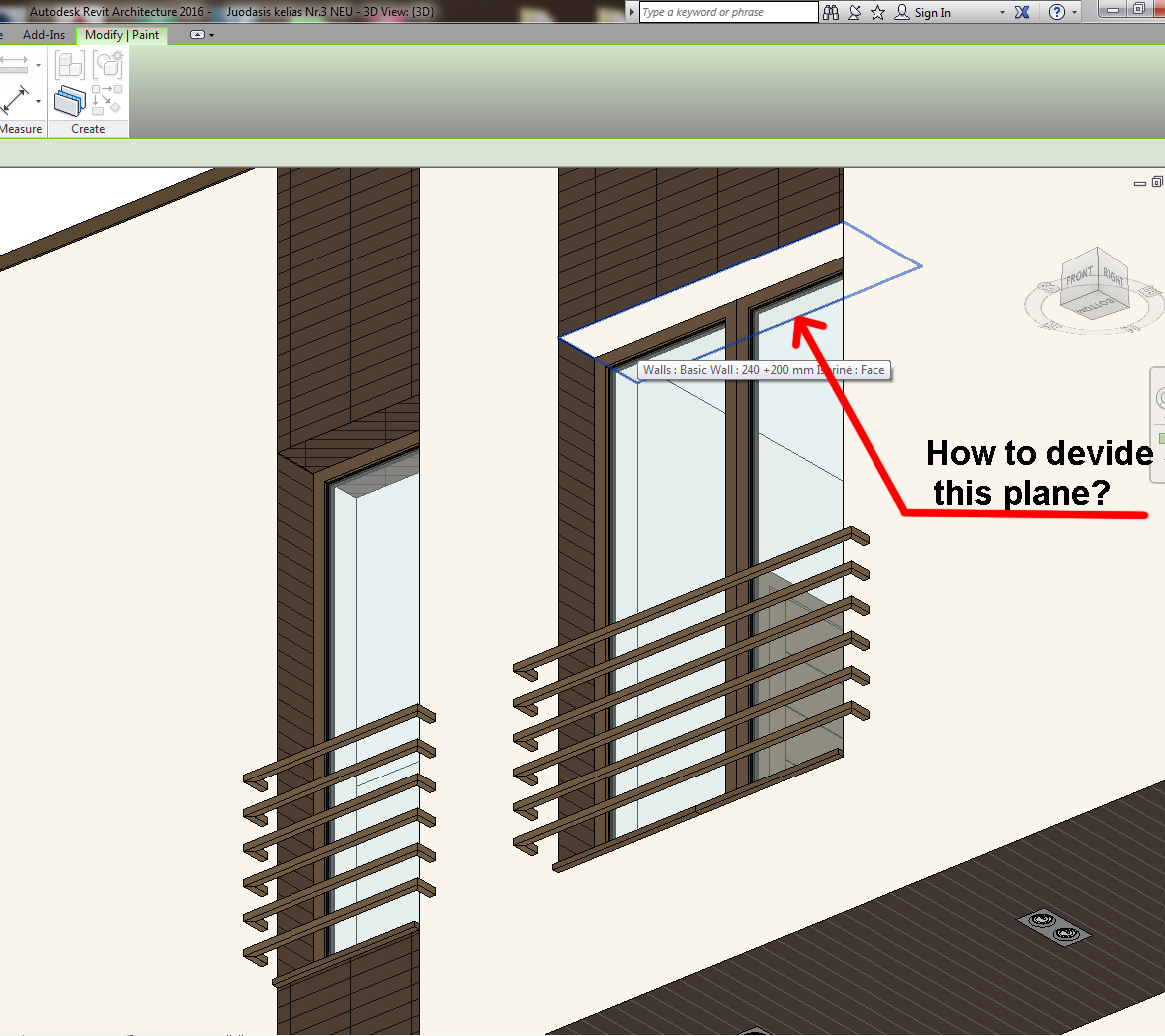

I want to apply different material on all outside window reveals. I figured out that side window reveal can be devide by "closure line" which is in window family, and when i wrap walls at insert. However nothing happens with top reveal...

Please see attachment

(Revit 2016)

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Correct, closure settings for wraps doesn't work at the head.

You can paint this surface in the model.

You could also provide a thin material here in the window family.

If anbody else has a solution, I would like to hear it.

This user is offline

Splendid

active

Joined: Fri, Sep 19, 2014
0 Posts
No Rating

Thanks for reply!

"You can paint this surface in the model." what do you mean paint it in the model?

This is actually what I want to do... To paint that part from exterior

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Goto a 3D view and spin the model so you can look up at the bottom of the window head then use the paint process to apply your material.  NOTE!  Paint is only a 3D surface change.  It does not change the representation of the material in section/plan views.
