Forums >> Revit Systems >> Technical Support >> Overriding tag text w/o breaking link?

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jul 2, 2015 at 11:48:17 AM | Overriding tag text w/o breaking link?

#1

rranyc


active

Joined: Fri, Feb 8, 2013
5 Posts
No Rating


A client has asked us to add .00 to the end of all sheet numbers (so, A-100 becomes A-100.00).  This has caused the sheet number function in detail and elevation tags to exceed the size of our standard tags at 3/32".  Is there a way I can override the text variable in the tag family so that it limits the number of characters (and hence still reads "A-100") without actually replacing the text with custom text (i.e., if a detail changes sheets, the tags should still respond and not have to be modified individually)?

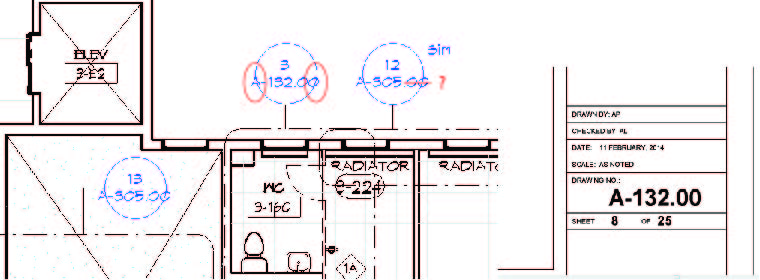

Attached photo illustrates the issue.



Attached Images


This user is offline



Thu, Jul 2, 2015 at 1:24:39 PM | Overriding tag text w/o breaking link?

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


I see no way to do what you want.   You can create a different call out head where that text is maybe 75% width instead of 100%.


This user is offline



Thu, Jul 2, 2015 at 10:30:10 PM | Overriding tag text w/o breaking link?

#3

CDWdavid


active

Joined: Mon, Aug 4, 2008
153 Posts
5 Stars: 5 Votes


Why can you just modify your tag, to cut the circe to two, and let the text goes beyond the circle?



Attached Files

This user is offline



Fri, Jul 3, 2015 at 1:36:15 AM | Overriding tag text w/o breaking link?

#4

nafenn


active

Joined: Mon, Mar 12, 2007
15 Posts
No Rating


Create a new shared parameter for the 2 digit suffix.

your view references (ie section heads) will still report the sheet number.

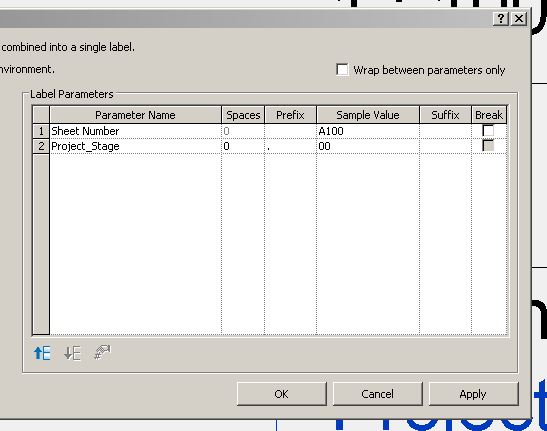

amend the sheet number label in your title block to contain the new parameter as well as sheet number

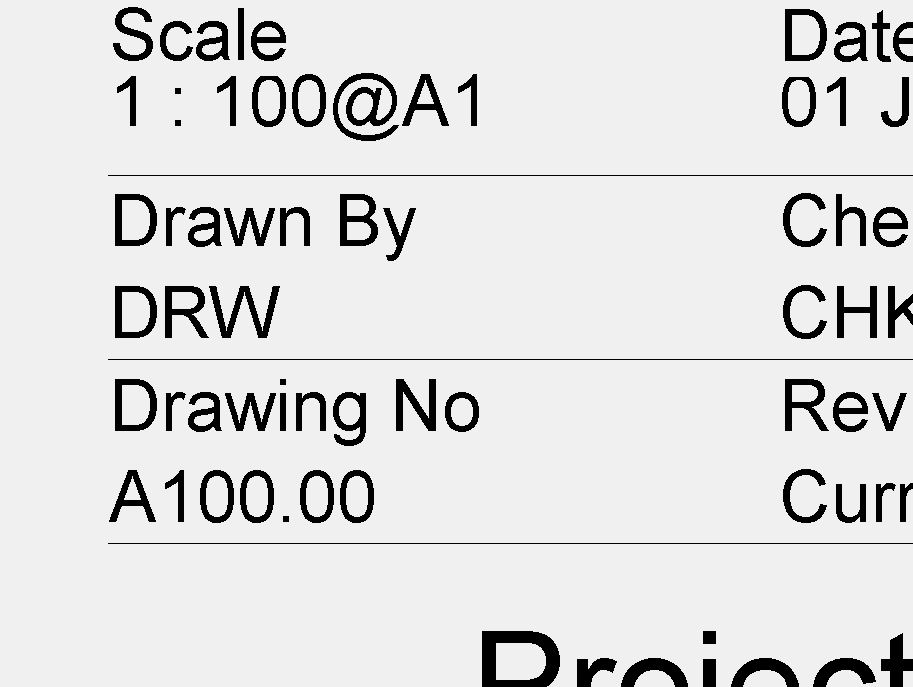

Attached Images


This user is offline



Tue, Jul 7, 2015 at 10:38:24 AM | Overriding tag text w/o breaking link?

#5

rranyc


active

Joined: Fri, Feb 8, 2013
5 Posts
No Rating


nafenn -

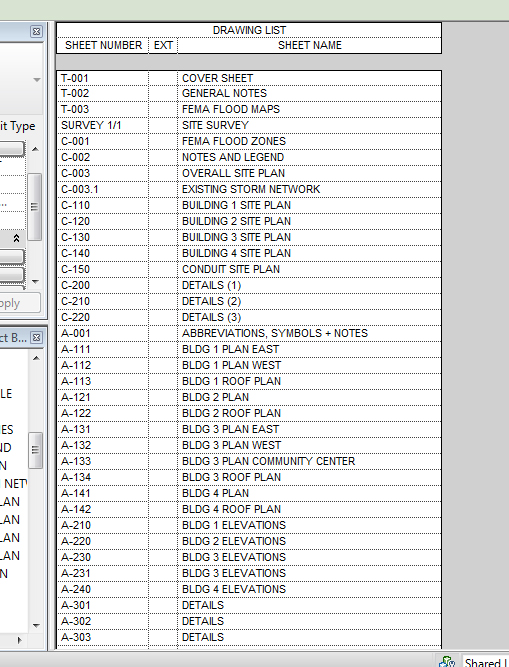

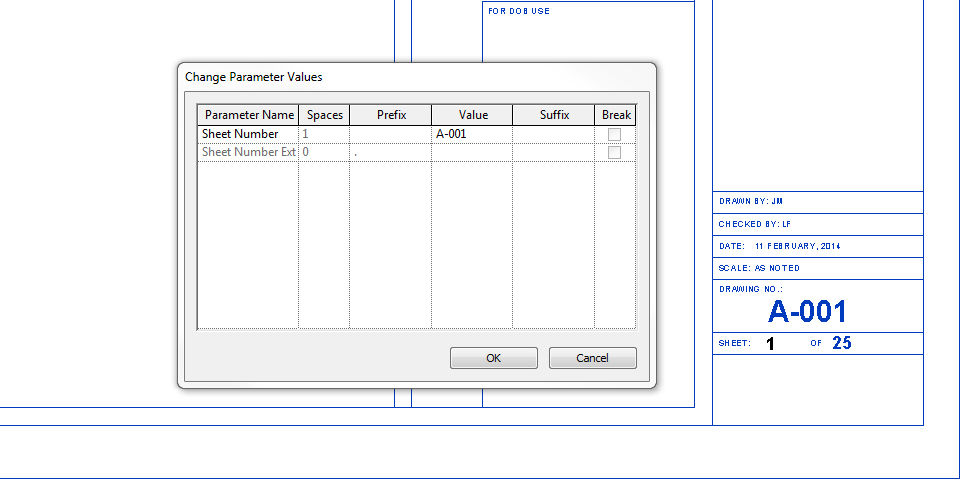

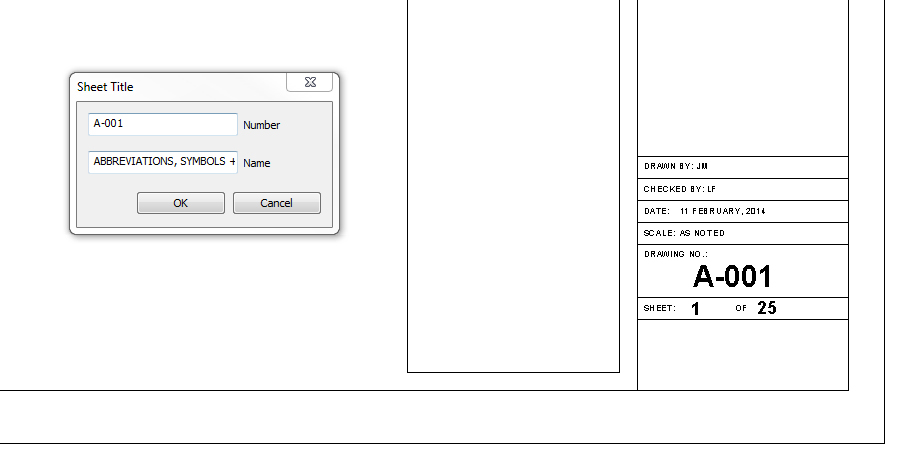

your solution seems perfect (thank you!) but I'm having some trouble executing.  I am able, within my titleblock family, to add a new shared parameter ("Sheet Number Extension") to the sheet number function.  It shows up correctly within the family editor and loads cleanly back into the main file (image 1).  Within the main document, however, the extension does not appear in the bottom right.  When I click on the sheet number I can see that the parameter is there but it is uneditable (image 2).  If I try to go through the right-click menu's "rename sheet", the new parameter is not an option (image 3).  Likewise, I can add the new parameter to my sheet list but it is uneditable (image 4).  What am I doing wrong?  The new parameter has identical settings to that of the original sheet number parameter (discipline: common; type: number).



Attached Images


This user is offline



Wed, Jul 8, 2015 at 1:18:02 AM | Overriding tag text w/o breaking link?

#6

nafenn


active

Joined: Mon, Mar 12, 2007
15 Posts
No Rating


rranyc,

apologies, I forgot the crucial step of adding the parameter to your project.

from your project go to:manage>Project Parameters>Add

select your newly made shared parameter, then tick "sheets" in the categories list on the left right hand side of the dialog

that's it



Edited on: Wed, Jul 8, 2015 at 1:18:51 AM



Edited on: Wed, Jul 8, 2015 at 6:13:43 PM

This user is offline



Thu, Jul 9, 2015 at 9:53:24 AM | Overriding tag text w/o breaking link?

#7

rranyc


active

Joined: Fri, Feb 8, 2013
5 Posts
No Rating


Works great - thank you!
